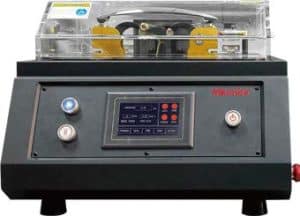

iCut-40P Metallographic Precision Cutting Machine
iCut 40P METALLOGRAPHIC PRECISION FLAT CUTTING MACHINE （1）

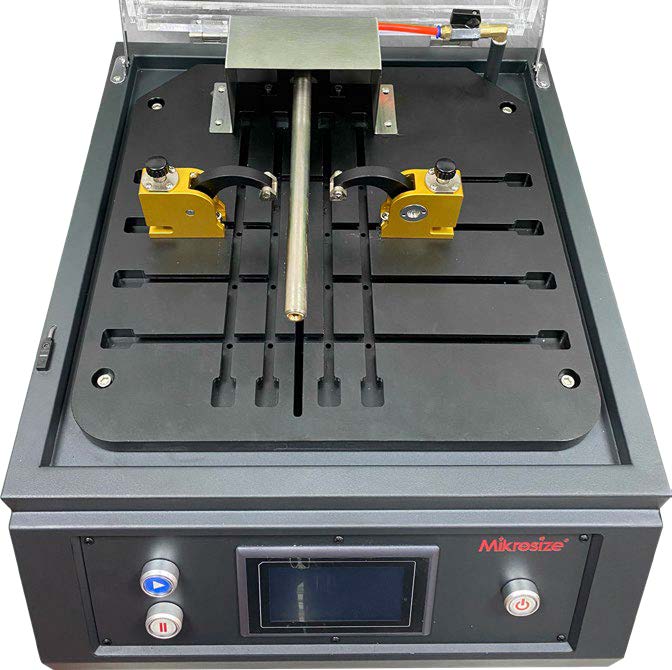

iCut 40P METALLOGRAPHIC PRECISION FLAT CUTTING MACHINE （2）

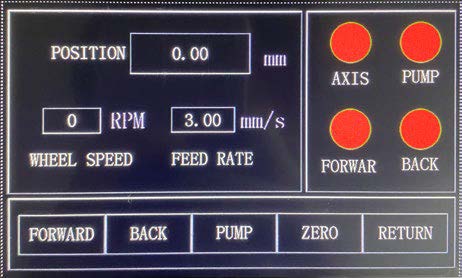

iCut 40P METALLOGRAPHIC PRECISION FLAT CUTTING MACHINE （3）

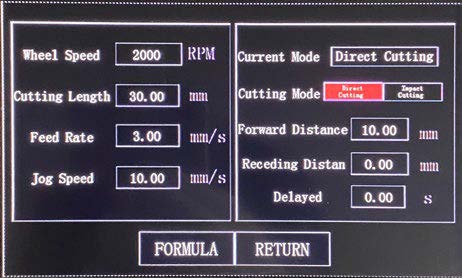

iCut 40P METALLOGRAPHIC PRECISION FLAT CUTTING MACHINE （4）
iCut 40P METALLOGRAPHIC PRECISION FLAT CUTTING MACHINE （5）
iCut 40P METALLOGRAPHIC PRECISION FLAT CUTTING MACHINE （6）
Видеодемонстрация
Особенности и применение
Product Feature：
- High positioning accuracy;
- Wide speed range;
- Strong cutting capacity;
- Built-in circulating cooling system;
- Preset feed speed;
- Touch screen control display, easy to operate and control;
- Automatic cutting can ensure uniform cutting consistency on the surface of the sample;
- Large and bright cutting guard with safety switch.
Product Application：
- Industrial manufacturing field
It can be used for the processing and manufacturing of mechani- cal parts, and can achieve precise cutting of various flat materials. By precisely controlling the cutting angle and depth, the precision flat plate cutting machine can ensure that the material is cut accurately and completely, meeting the high-precision require- ments of industrial manufacturing.
- Architectural model industry
Precision flat plate cutting machines can ensure the production needs of architectural models, such as the realization of precise proportions and dimensions.
- Medical industry
Precision flat plate cutting machines can produce surgical instru- ments and equipment that require delicate operations through precise cutting.
Технические характеристики
| Model | iCut-40P |
| Product Name | Metallographic Precision Cutting Machine |
| Y-axis Movement | 200mm |
| Cutting Method | Straight Line, Pulse |
| Cut-off Wheel | ф200*0.9*32mm |
| Rotation Speed | 500-3000r/min，Customized |
| Automatic Cutting Speed | 0.01-3mm/s |
| Manual Speed | 0.01-15mm/s |
| Impact Cutting Distance | 0.1-2mm/s |
| Maximum Cutting Thickness | 40mm |
| Maximum Clamping Length of Table | 425mm |
| Maximum Clamping Width of Table | 200mm |
| Display | 5 Inch Touch All-in-one Control |
| Data Usage Method | 10 Kinds Can Be Selected |
| Working Table Dimension | 425*435mm |
| Motor Power | 600W |
| Power Supply | Single Phase 220V |
| Machine Dimension | 530*600*410mm |
| Net Weight | 85KG |
| Gross Weight | 101KG |
Стандартная комплектация
| Name | Specification | Qty | |
| Machine Mainframe | iCut-40P | 1 set |
|
| Cut-off Wheel | ф200*0.9*32mm | 1 pc |
|
| Inlet Pipe | 1 pc |
| |
| Outlet Pipe | 1 pc |
| |

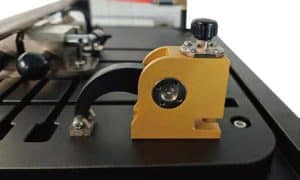

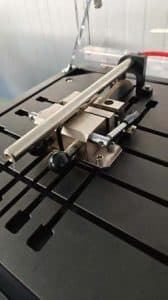

| Clamp | Choose 1 clamp in the standard delivery | 1 pc |
|
| Wrench | 17-19mm | 1 pc | |
| Hex Wrench | M4 | 1 pc | |
| Instruction Manua | 1 copy | ||
| Warranty Card | 1 copy | ||
| Product Certificate | 1 copy |
