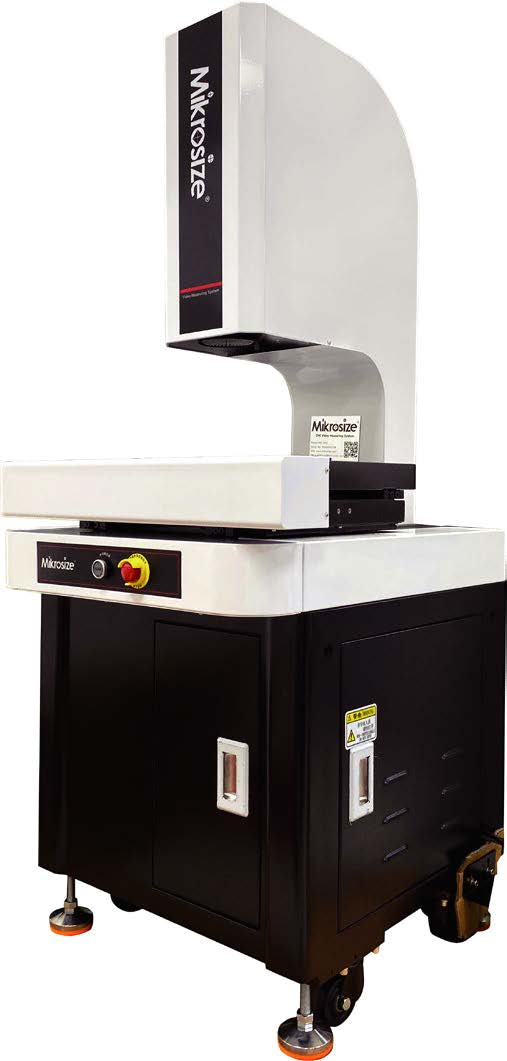

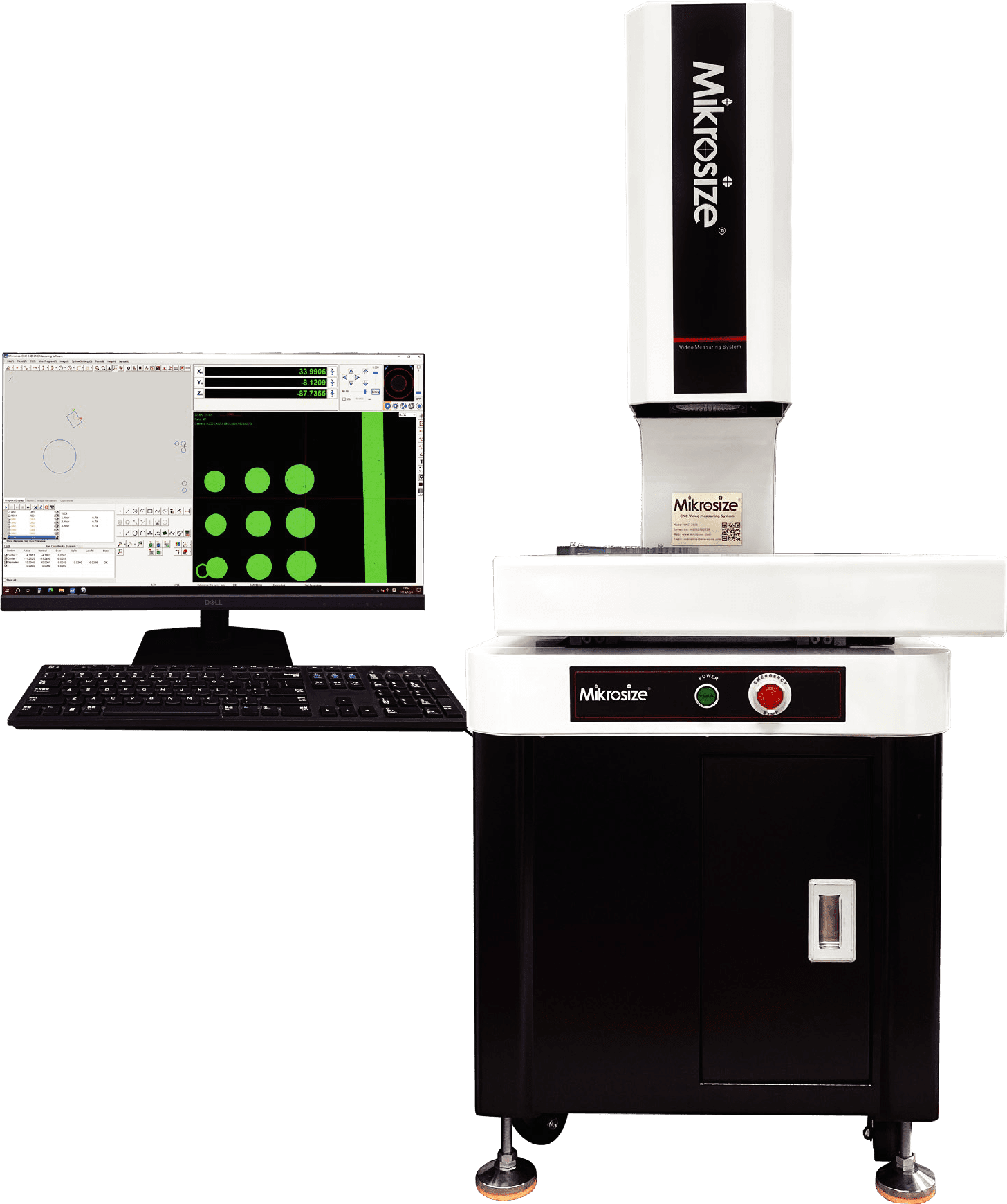

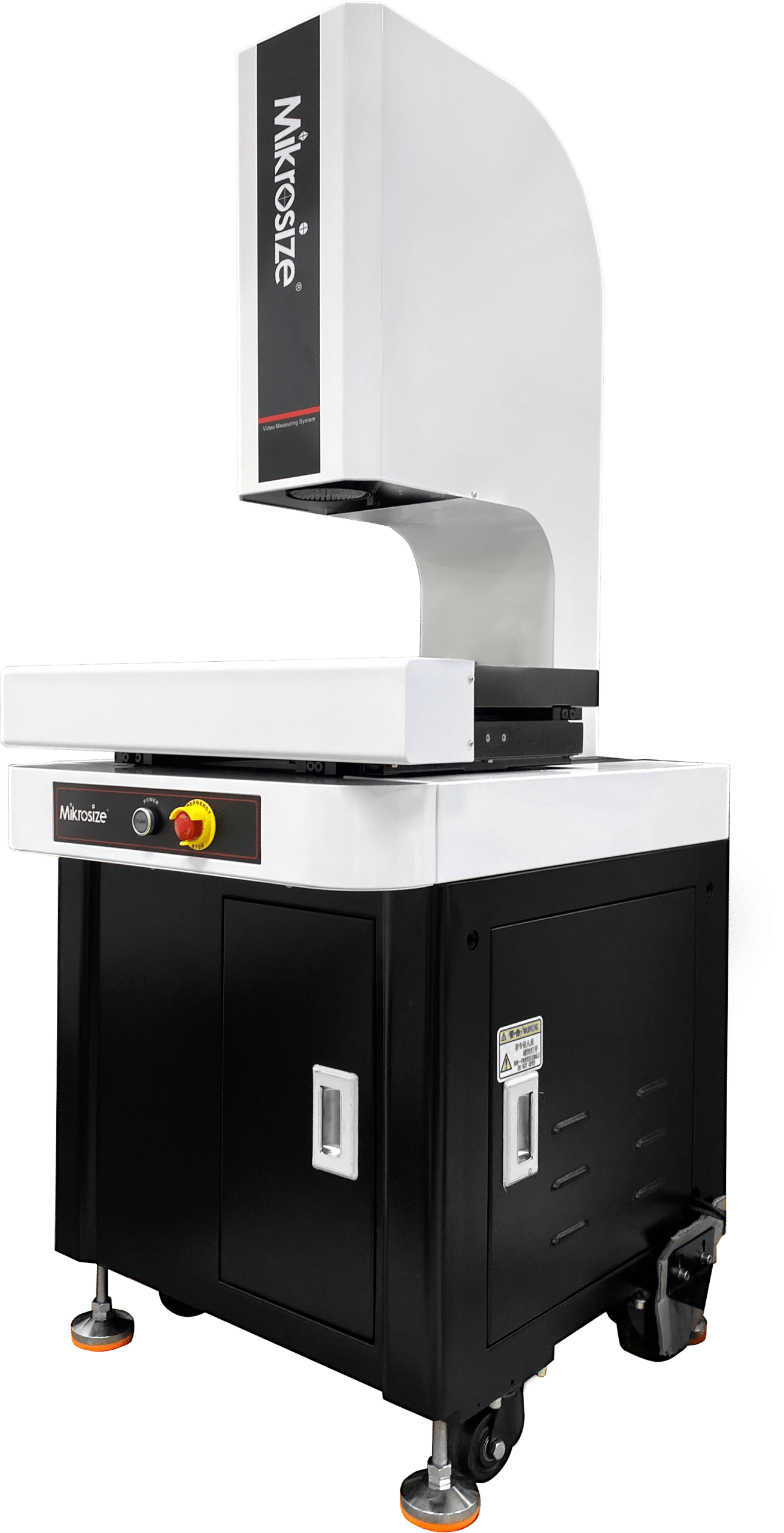

VMC CNC Video Measuring Machine

Product Feature：

• Integrated man-machine engineering design of the whole machine for convenient operation and measurement.
• Adopting high-precision «00» grade blue granite worktable and column, which are characterized by high precision, corrosion resistance, high strength, no stress deformation, ensuring the machine has high stability.

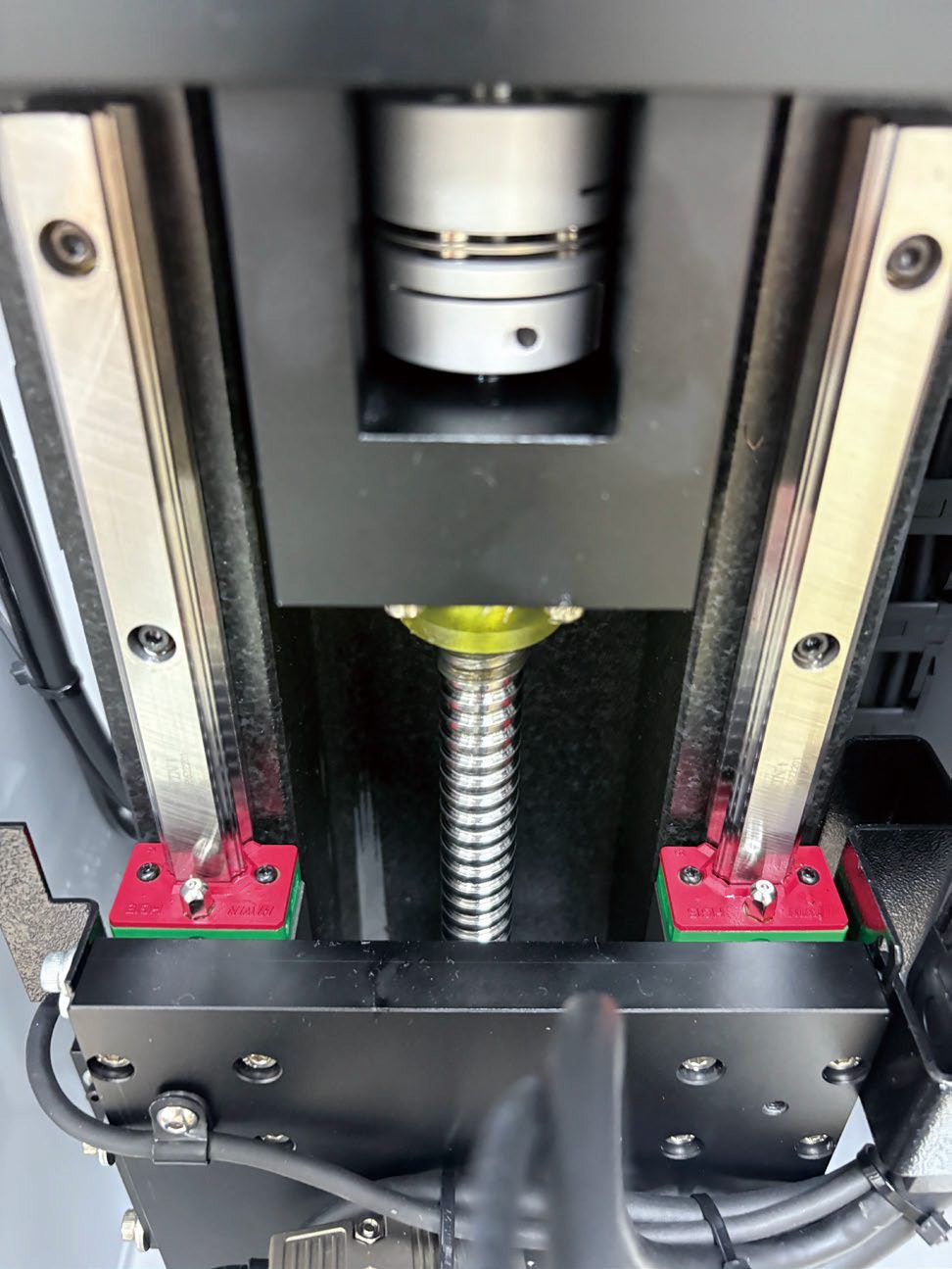

• The X, Y, and Z axes are precisely controlled and positioned by CNC fully automatic system. The transmission adopts precision linear guides and ground-grade ball screws to ensure the accuracy of the motion system.

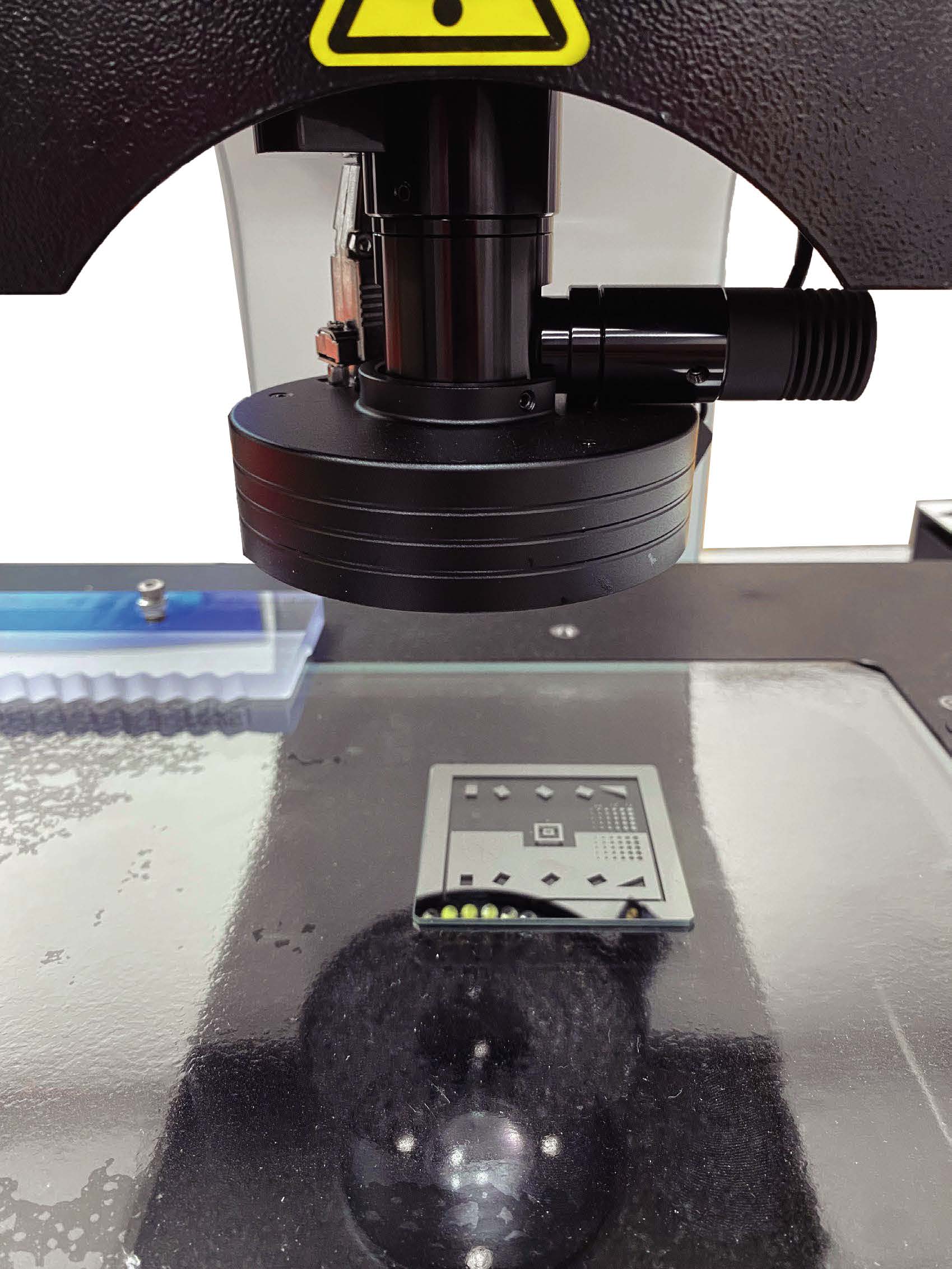

• The imaging system uses imported high-quality optical components with multi-layer optical coatings. The optical attenuation is minimal, ensuring clear and distortion-free images.
• The programmable 5-ring 8-zone LED surface light source and parallel LED contour light source system can intelligently achieve 256-level brightness adjustment.

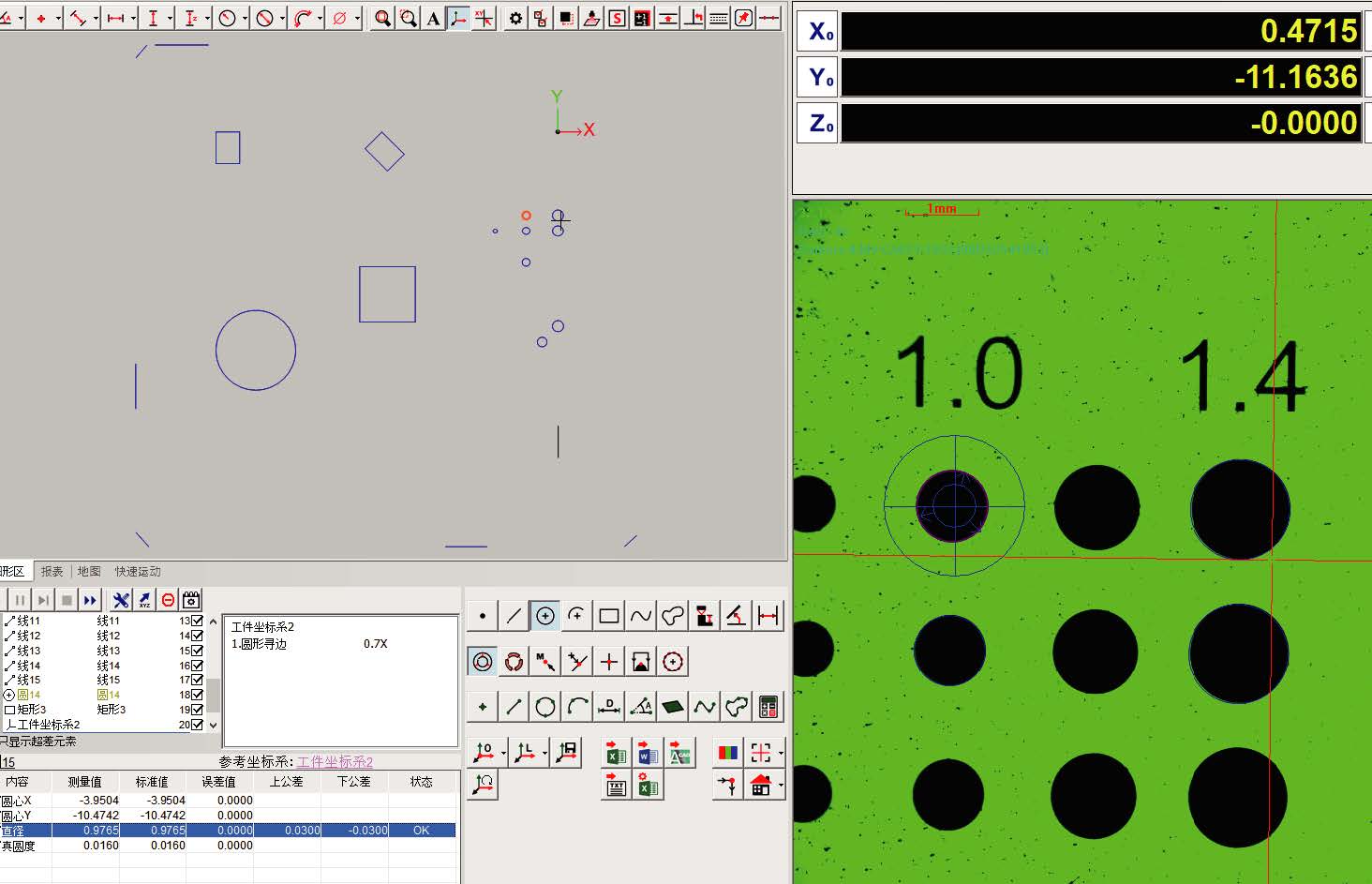

• The independently developed measurement software has functions such as fast focusing, automatic edge finding, and diversified output reports. It can realize on-line SPC data processing and analysis, and can set automatic measurement tasks to efficiently complete batch inspections.

Product Application：

• In the electronic manufacturing field, it can measure the dimensions of electronic components with high precision and detect the quality of PCB boards to ensure the reliability of electronic products.
• In the mechanical processing field, it can accurately detect the dimensions of complex parts and the conditions of cutting tools, helping to improve processing accuracy and effect.
• In mold manufacturing, it can comprehensively detect the mold cavity and provide a basis for its repair and improvement, ensuring product molding quality and extending the mold life.
• In the automotive manufacturing industry, it can accurately measure automotive parts and the appearance of vehicle bodies to ensure the performance and appearance quality of automobiles.
• In the fields of scientific research and teaching, it can meet the precision measurement requirements of scientific research, and can also be used for teaching demonstrations and training.
