uVision-PB Portable Brinell Hardness Testing System

Product Feature：

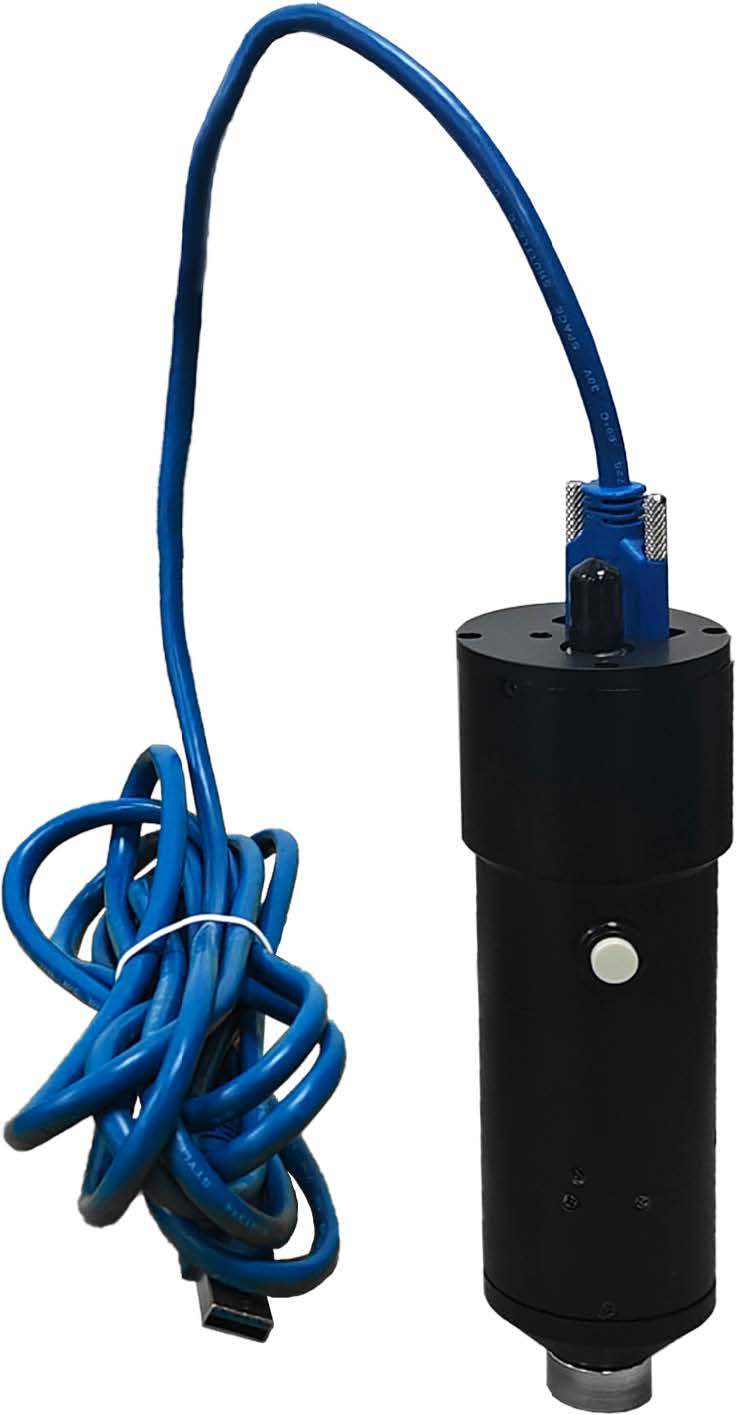

• Portability design: The system features a compact and exquisite structural design. It is easy to install and has an intuitive operation,fully meeting the convenient usage requirements in mobile scenarios；
• Professional optical system: By precise optical imaging technology,it can clearly present the contour of the Brinell indentation image, ensuring the accuracy of the measurement；

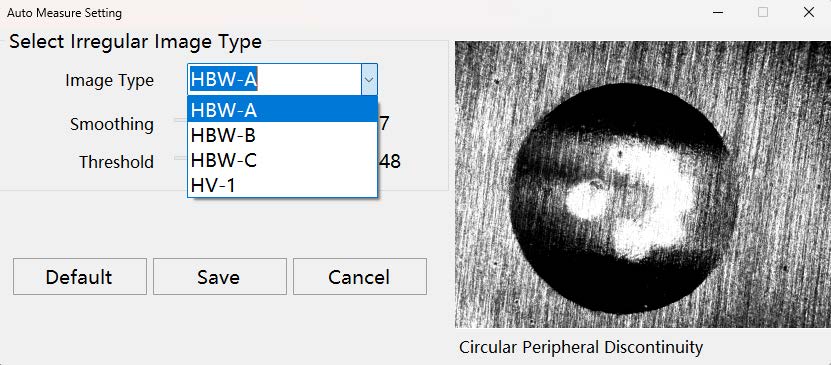

• Intelligent Image Analysis: By integrating three algorithms of shape recognition, brightness analysis, and edge computing, the accuracy of measurement results is significantly enhanced；
• Standard sample part testing supports both manual and automatic measurement: It is equipped with a one — click automatic measurement function, which simplifies the operation process and enables non — professionals to get started quickly. Manual measurement and adjustment are also supported；
• The brightness, contrast, and lighting system are adjustable.Parameters can be saved separately and input according to different sample surfaces；
• Multi — scenario applicability: Compatible with both laboratory -level precision inspection and rapid quality inspection in industrial sites；

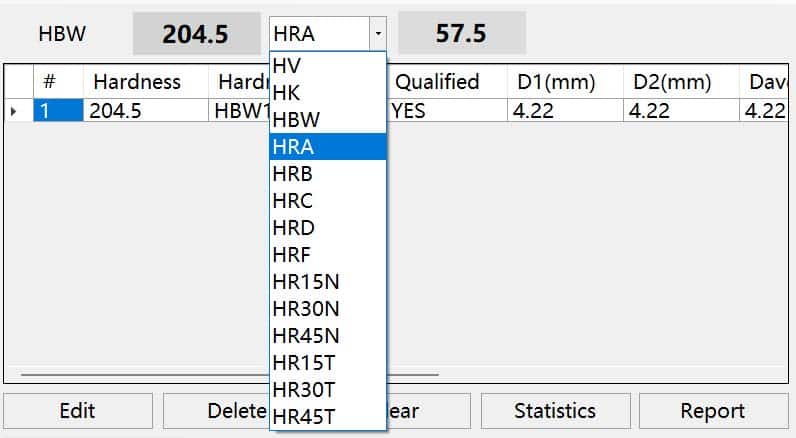

• Hardness conversion: Automatically conduct conversions among various hardness scales such as Brinell, Rockwell, and Vickers；

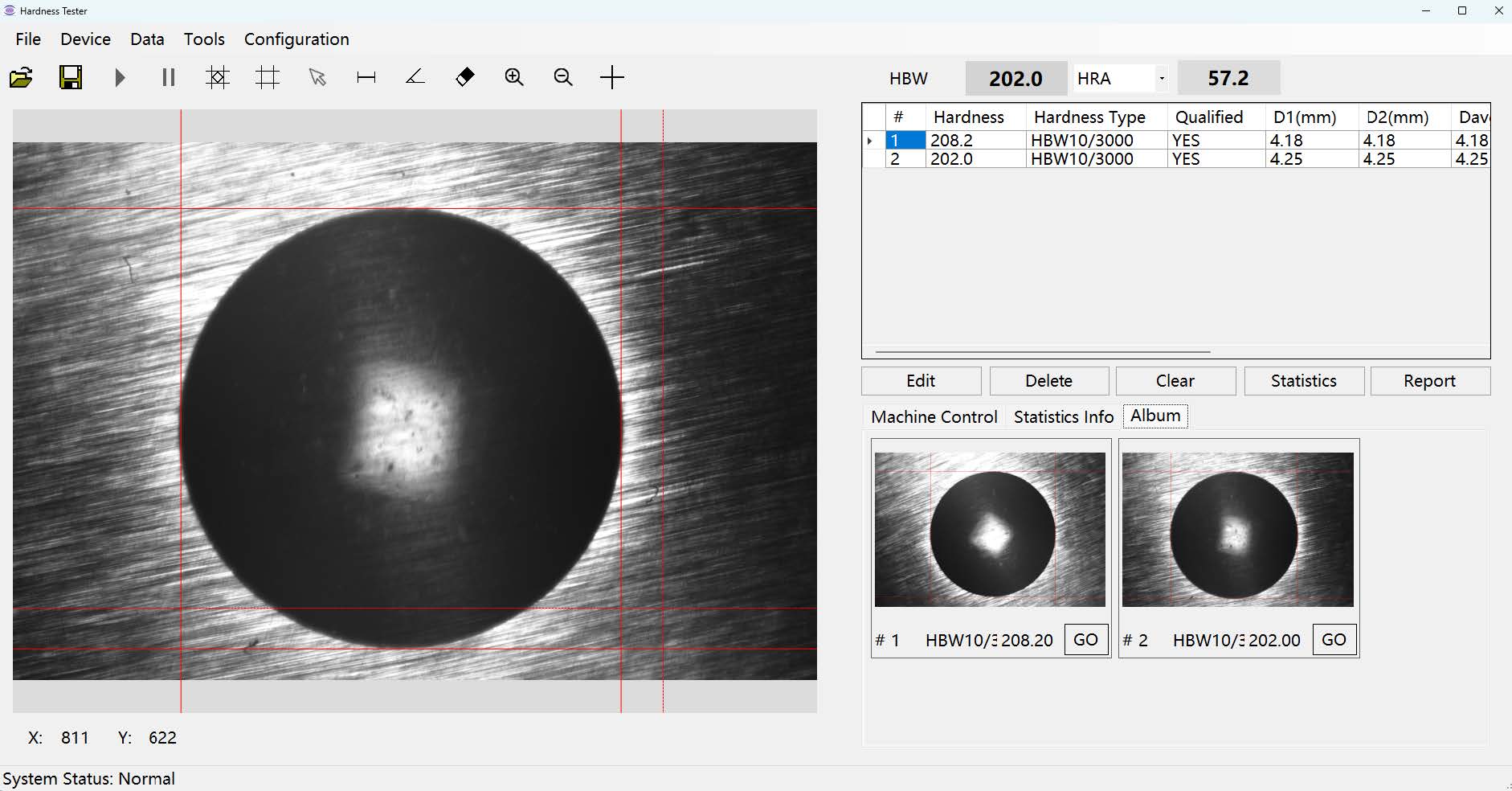

• Real — time display of hardness indentation images, with the ability to store and print the images；

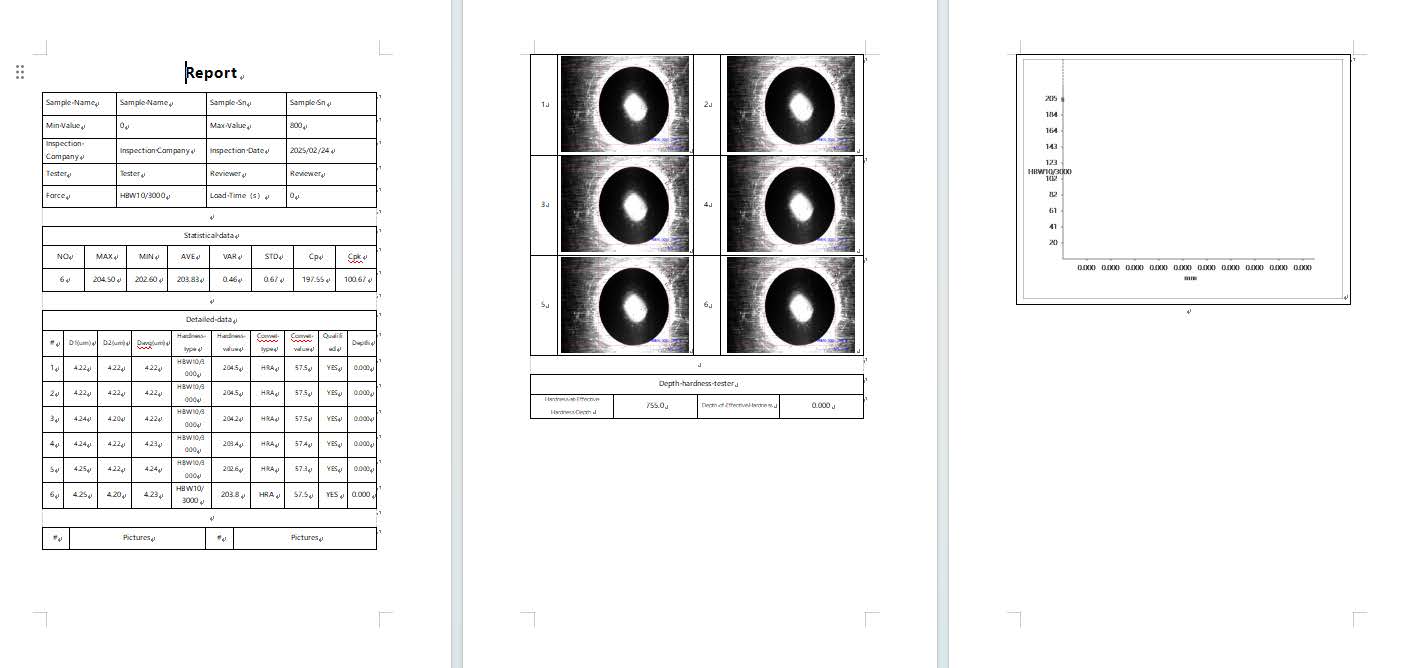

• Automatically record measuring data. Reports can be generated according to user — customized requirements and are supported in multiple formats;

Product Application：

• Industrial Manufacturing and On — site Quality Control.It is applicable to scenarios such as foundries, forging workshops,and machining factories. It can quickly test the hardness of materialslike cast iron, steel, non — ferrous metals, and alloys;
• Laboratory Material Research and Standardized Testing.It is used in scenarios such as hardness comparison experiments of metal materials and R & D testing of new alloys;
• Inspection of Large — scale Workpieces and Infrastructure.Particularly suitable for in — situ inspection of large — scale castings and forgings, pipelines, and pressure vessels in scenarios such as power plants and steel mills.
