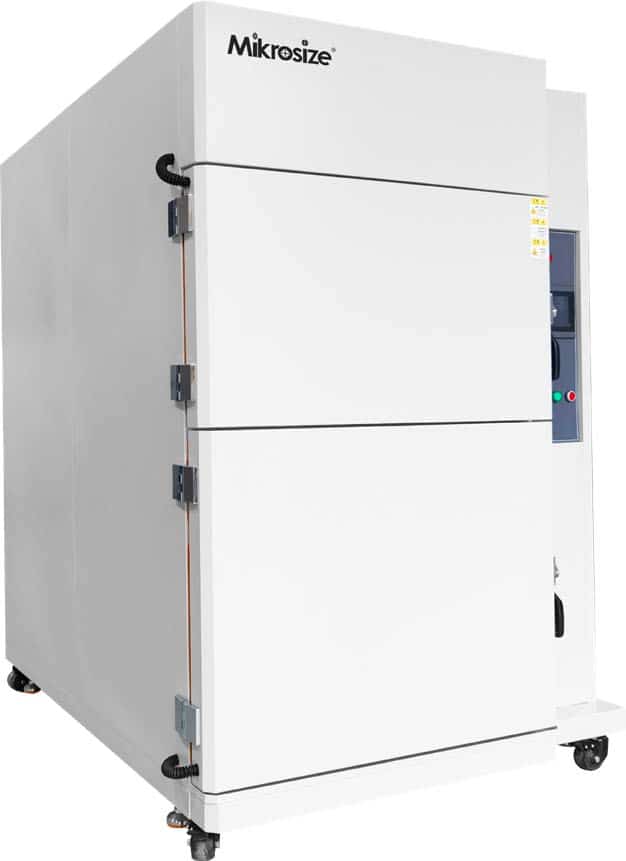

TST-64/80/100/150 Thermal Shock Test Chamber

Tst 64 80 100 150 thermal shock test chamber（1）
Tst 64 80 100 150 thermal shock test chamber（2）
Tst 64 80 100 150 thermal shock test chamber（3）
Tst 64 80 100 150 thermal shock test chamber（4）
Tst 64 80 100 150 thermal shock test chamber（5）
Tst 64 80 100 150 thermal shock test chamber（6）
Миниатюра 1
Миниатюра 2
Миниатюра 3
Миниатюра 4
Миниатюра 5
Миниатюра 6
Tst 64 80 100 150 thermal shock test chamber（1）

Tst 64 80 100 150 thermal shock test chamber（1）

Tst 64 80 100 150 thermal shock test chamber（2）

Tst 64 80 100 150 thermal shock test chamber（2）

Tst 64 80 100 150 thermal shock test chamber（3）

Tst 64 80 100 150 thermal shock test chamber（3）

Tst 64 80 100 150 thermal shock test chamber（4）

Tst 64 80 100 150 thermal shock test chamber（4）

Tst 64 80 100 150 thermal shock test chamber（5）

Tst 64 80 100 150 thermal shock test chamber（5）

Tst 64 80 100 150 thermal shock test chamber（6）

Tst 64 80 100 150 thermal shock test chamber（6）

Особенности и применение

Product Features:

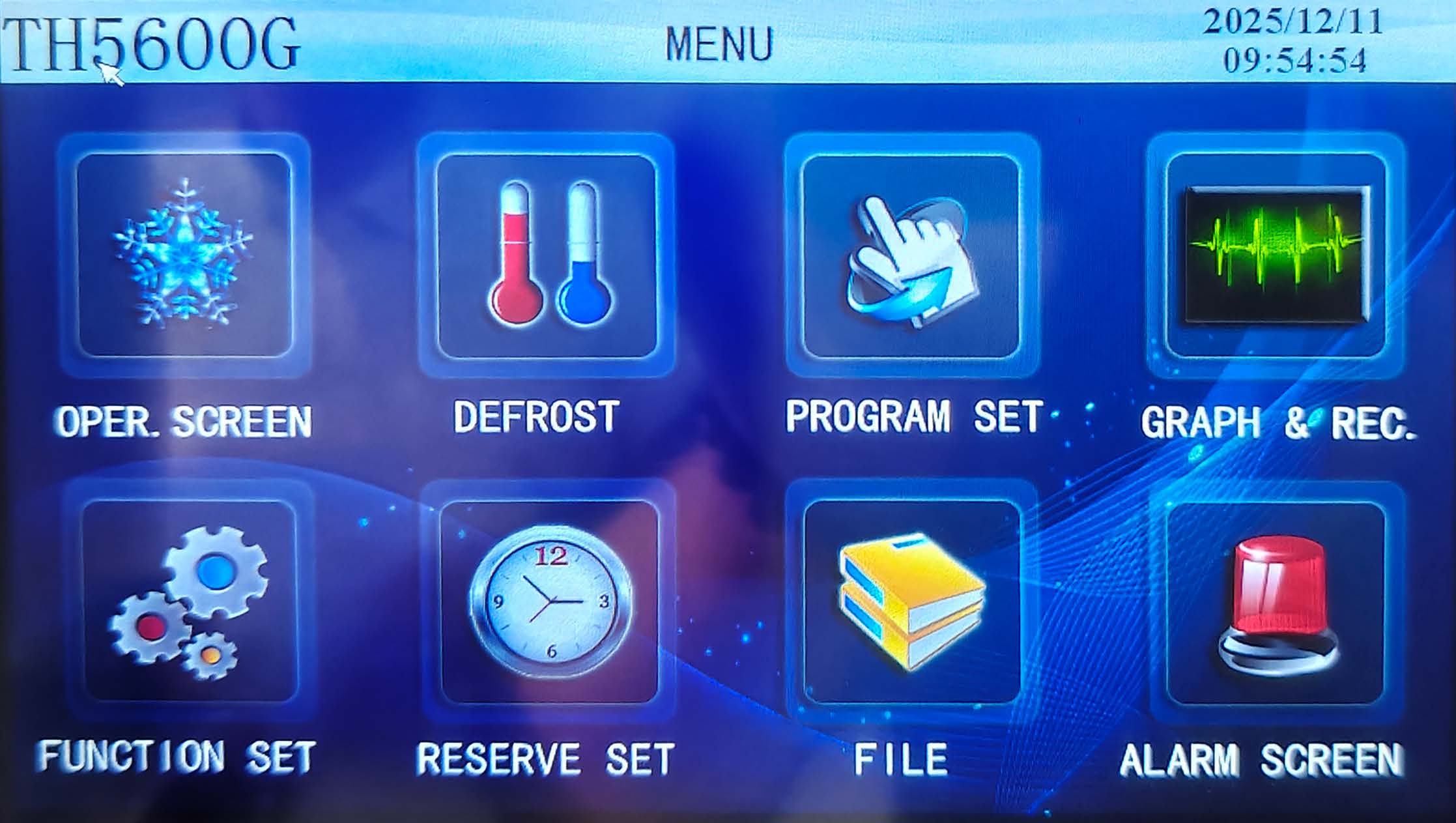

  • 7-inch color touch screen for easy operation

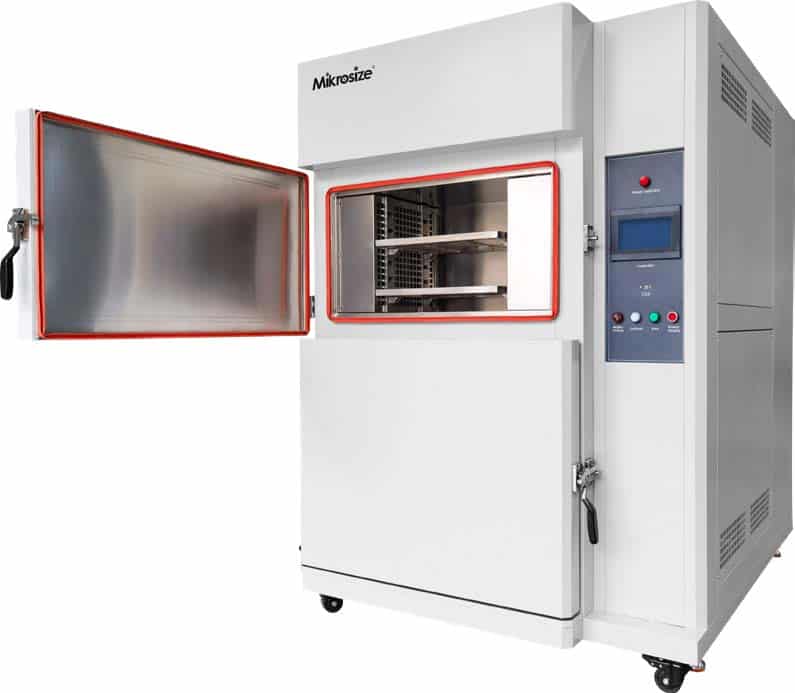

  • Three-chamber design: divided into high-temperature zone, low-temperature zone, and test zone; test samples do not need to be moved
  • Outer box made of cold-rolled steel plate with baking paint, wear-resistant, corrosion-resistant, beautiful and easy to clean
  • Customizable test chamber size
  • Built-in lighting in the inner box
  • Equipped with 2 sets of stainless steel shelves. Each layer can bear 20kg, and the position is adjustable
  • Imported fully enclosed scroll compressor
  • Test range: -65℃~+200℃
  • Thermal shock temperature conversion time within 8 seconds, recovery time within 5 minutes
  • Shock method: air circuit switching to introduce into the test zone
  • Supports cycle tests; test programs can be set, and each command can be repeated up to 999 times
  • Real-time recording of test data and generation of curves; supports export of historical curves
  • Reservation function supported
  • Defrosting modes: automatic and manual
  • Alarm recording function, including time and fault name for easy troubleshooting
  • Cooling methods: air-cooled and water-cooled options
  • Equipped with 4 casters at the bottom for easy equipment movement
  • Supports language switching; default is Chinese and English, other languages can be customized
  • Complies with the following execution standards:GB/T2423、GJB150、GJB360、EIA 364

Product Applications:

  • Electronic and electrical industry

        Test circuit boards, chips, batteries, displays, connectors, etc., to verify whether short circuits, open circuits, performance degradation and other problems occur after high and low temperature shocks

  • Auto parts industry

        Test engine parts, sensors, car lights, on-board electronics, etc., to simulate the working conditions of cars when quickly switching between alpine and high-temperature areas

  • Medical device industry

       Test the core components of medical equipment to ensure their stability and safety in different temperature environments

Технические характеристики

Name Thermal Shock Test Chamber
Model  TST-64  TST-80  TST-100  TST-150
Inner Box Size W*H*D（mm） 400*400*400 500*400*400 500*400*500 500*600*500
Volume 64L 80L 100L 150L
Temperature Range Low temperature：-10℃~-80℃ High temperature：+60℃~+220℃
Heating Time Rt~+150℃≤30min
Cooling Time Rt~-65℃≤70min
Temperature Shock Range -65℃~+200℃
Temperature Fluctuation ±1.0℃
Temperature Uniformity ±2℃
Temperature Conversion Time 8s
Temperature Recovery Time 5min
Inner Box Material SUS 304# stainless steel
Outer Box Material Cold-rolled steel plate with baking paint
Thermal Insulation Material High-temperature tank: aluminum silicate insulation cotton; Low-temperature tank: high-density PU foam
Test Rack Stainless steel rack
Structure Three-chamber type: high-temperature zone, low-temperature zone, test zone
Valve Device Forced air device valve
Refrigeration System Semi-hermetic two-stage compressor (water-cooled) / Fully enclosed two-stage compressor (air-cooled)
Compressor Tecumseh or Emerson brand
Protection Device No-fuse switch, compressor high-low pressure protection switch, refrigerant high-pressure protection switch, fault warning system, electronic alarm
Power Supply AC 380V ;50Hz/60Hz,3Φ

Стандартная комплектация

Name Quantity
Main Unit 1
Controller 1
AC Contactor  /
Solid State Relay  /
Intermediate Relay  /
Phase Sequence Protection  /
Circuit Breaker  /
Heating Tube  /
Motor  /
Compressor  /
Refrigerant  /
Oil Separator  /
Electronic Expansion Valve  /
Dry Filter  /
Shock Absorbing Tube  /

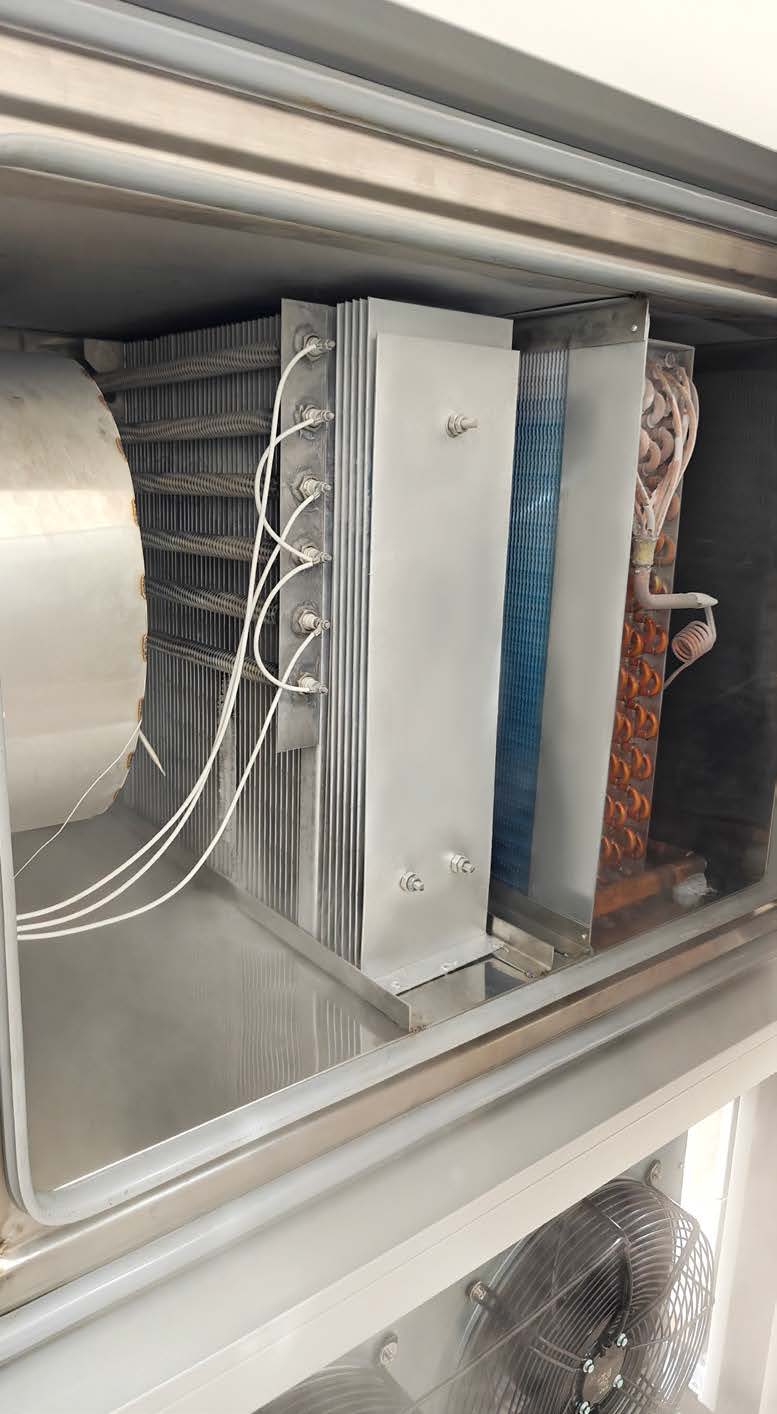

Evaporator  /
Condenser  /
High-Low Pressure Protector  /
Refrigeration Oil /


Опциональная комплектация

Power-on Test Hole
Observation Window
Sample Rack
