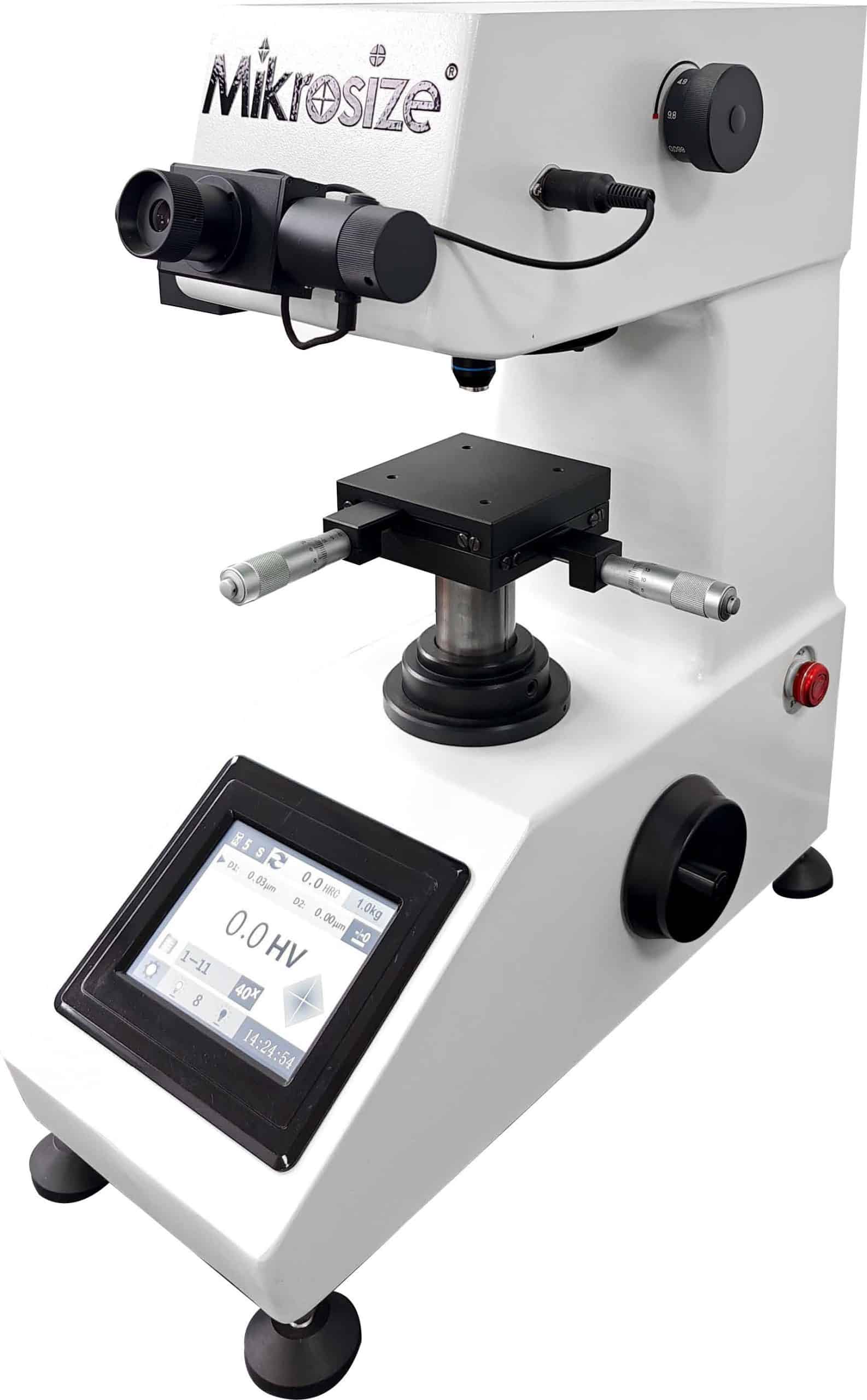

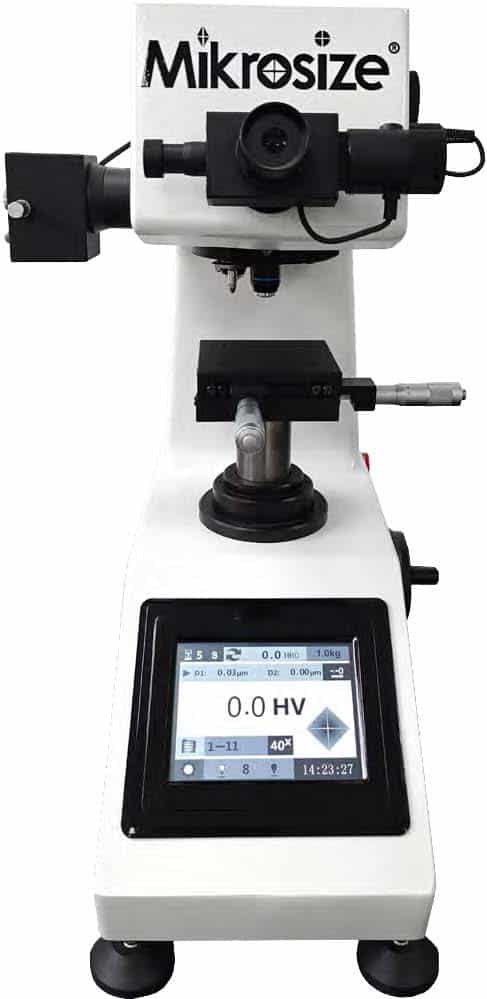

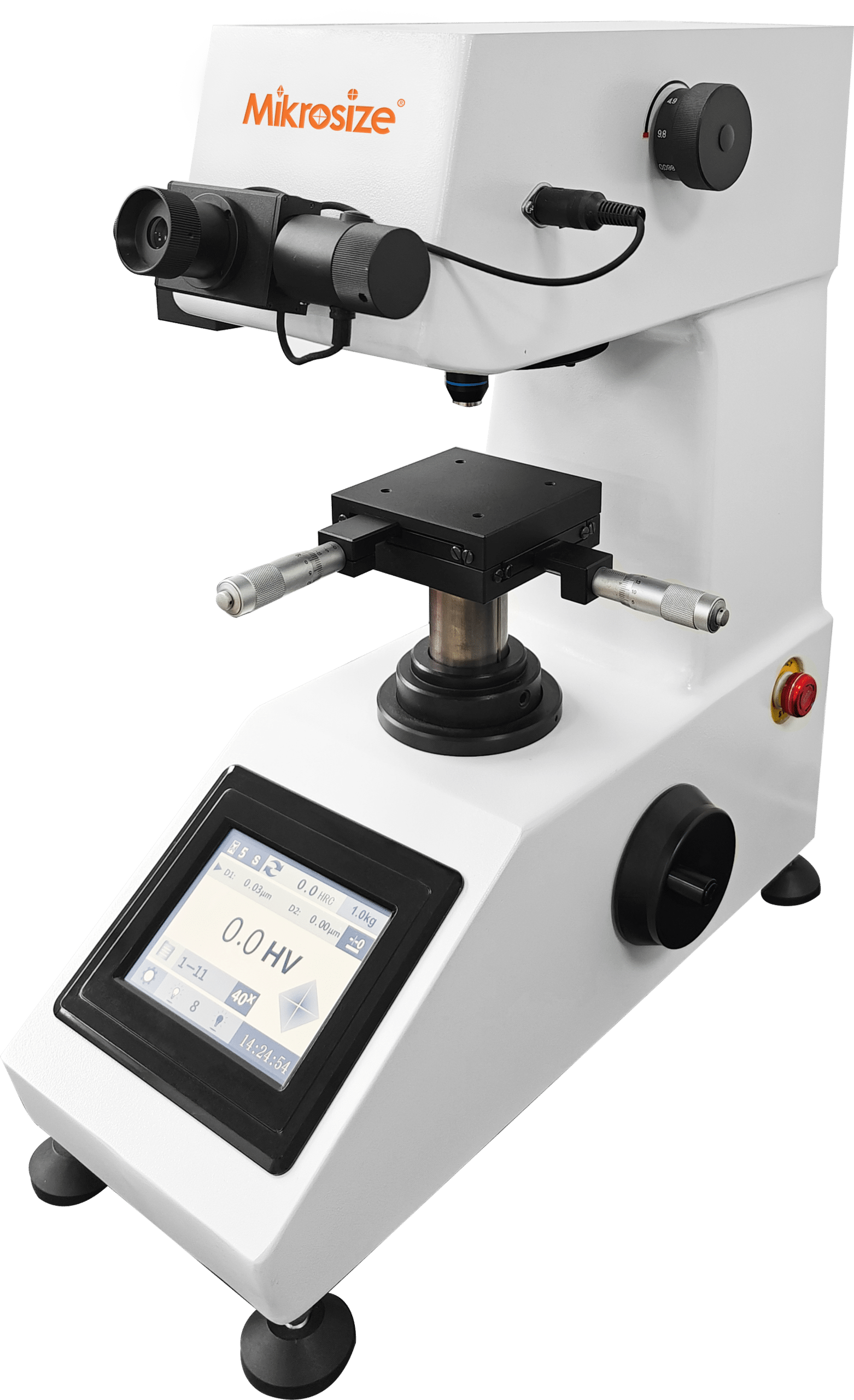

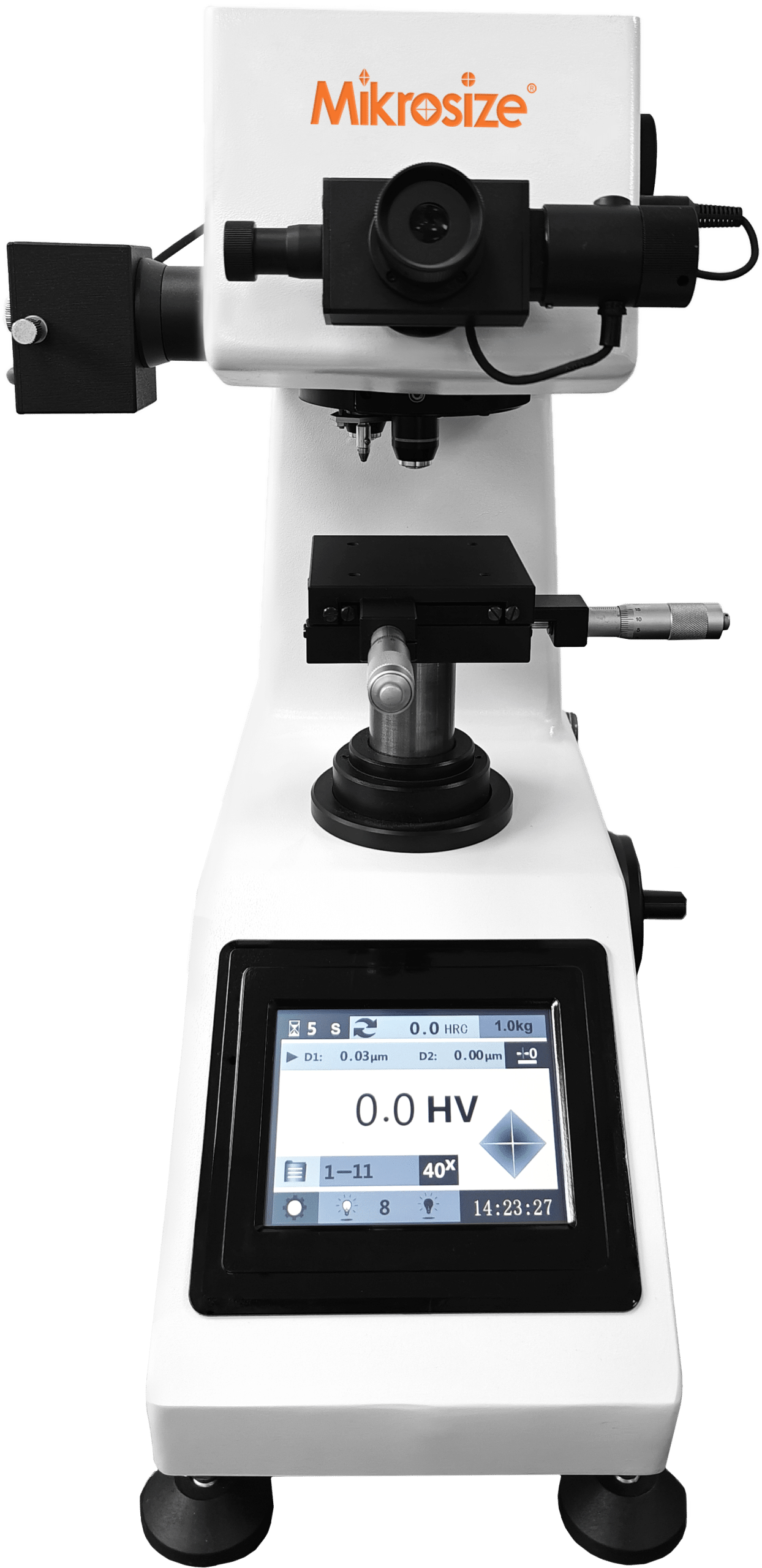

MVicky-1000PC Touch Screen Micro Vickers Hardness Tester
MVicky 1000pc图（1）
MVicky 1000pc图（2） scaled
MVicky 1000pc图（3）
MVicky 1000pc图（4）
MVicky 1000pc图（5）
MVicky 1000pc图（6）
Видеодемонстрация
Особенности и применение
Product Feature：
- High-definition touch screen display and operation
- Automatic switching turret,automatic positioning.
- Precise mechanical design, controlled by the CPU electri- cally, and high-definitionoptical measurement system is used optically to improve the test accuracy
- Testing mode both mico vickers and knoop.
- Selected all micro vickers scales,and converted hardnessscales
- Preset test force load dwelling time
- Adjustable illumination brightness
- The diagonal length of the indentation automatically entered after digital encode button pushed, the hardness value is automatically displayed on the screen, and the number of hardness tests is prompted
- Built-in printer , test result can be printed out.
Product Application：
- Hardness testing of various metal materials such as steel, aluminum alloy, copper alloy, etc
- It enables users to understand the hardness properties of the material, and then evaluate its processability and usabil- ity.
- It is also suitable for hardness testing of non-metallic materials such as ceramics, glass, and rubber etc.
Технические характеристики
| Product Name | Touch Screen Micro Vickers Hardness Tester |
| Model | MVicky-1000pc |
| Test Force | 0.098N、0.245N 、0.49N 、0.9807N 、1.961N 、2.942N )、4.903N 、9.807N |
| 10gf、25gf、50gf、100gf、200gf、300gf、500gf、1kgf | |
| Indenter | Diamond Indenter |
| Test Force Application Method | Automatic application and removal of test force |
| Indenter And Objective Lens | Automatic switching |
| Test Force Dwell Time | 0~60s(in 5s increments) |
| Eyepiece | 10x |
| Objective | 10x , 40x |
| Total Magnification | 100x , 400x |
| X-Y Test Anvil | Size:100x100mm,
Travel: 25x25mm, Resolution:0.01mm |
| Test Height | 90mm |
| Test Throat | 100mm |
| Net Weight | 31kg |

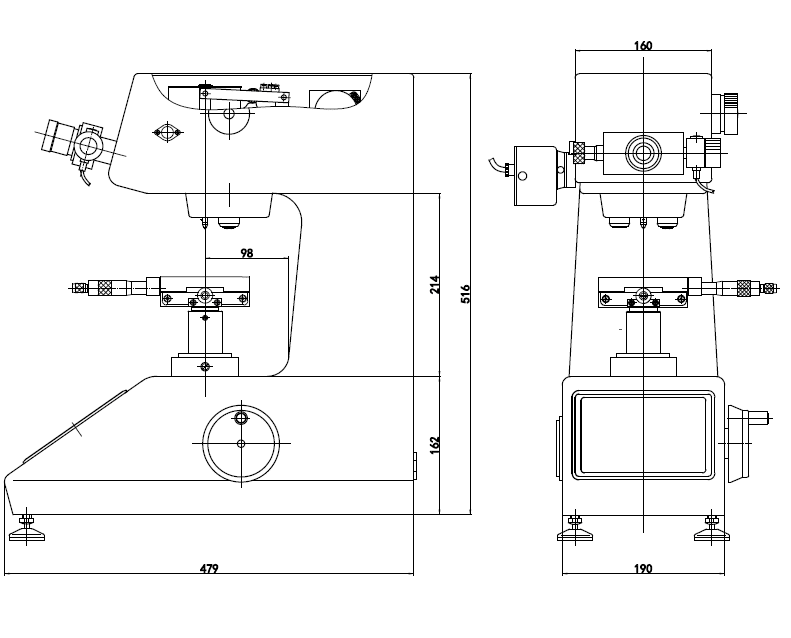

| Machine Dimension | 480x325x545mm (LxWxH) |
| Power Supply | AC110/220 V/50~60 Hz |
| Working Environment | In the range of (23±5) °C at room temperature.
Placed horizontally on a solid foundation. No corrosive media around it in a vibration-free environment. Indoor relative humidity is not more than 65%. |
Стандартная комплектация
| Name | Quantity |
| Machine Mainframe | 1 set |
| Diamond Micro Vickers Indenter | 1 PC |
| X-Y Test Table | 1 PC |
| Thin Specimen Clamp | 1 PC |
| Hardness Block 400~500 HV0.2 | 1 PC |
| Weights | 6 PCS |
| Horizontal Adjusting Screw | 4 PCS |
| Fuse 1A | 2 PCS |
| Power Cord | 1 PC |
| Anti-dust Cover | 1 PC |
| 10X Digital Measuring Eyepiece | 1 PC |
| 10X, 40X Objective | 1 PC ea. |
| Flat Clamp | 1 PC |
| Filament Clamp | 1 PC |
| Hardness Block 700~800 HV1 | 1 PC |
| Weight Axis | 1 PC |
| Level | 1 PC |
| Halogen Lamp 12V, 20W | 1 PC ea. |
| Screwdriver | 2 PCS |
| Instruction Manual | 1 Copy |
