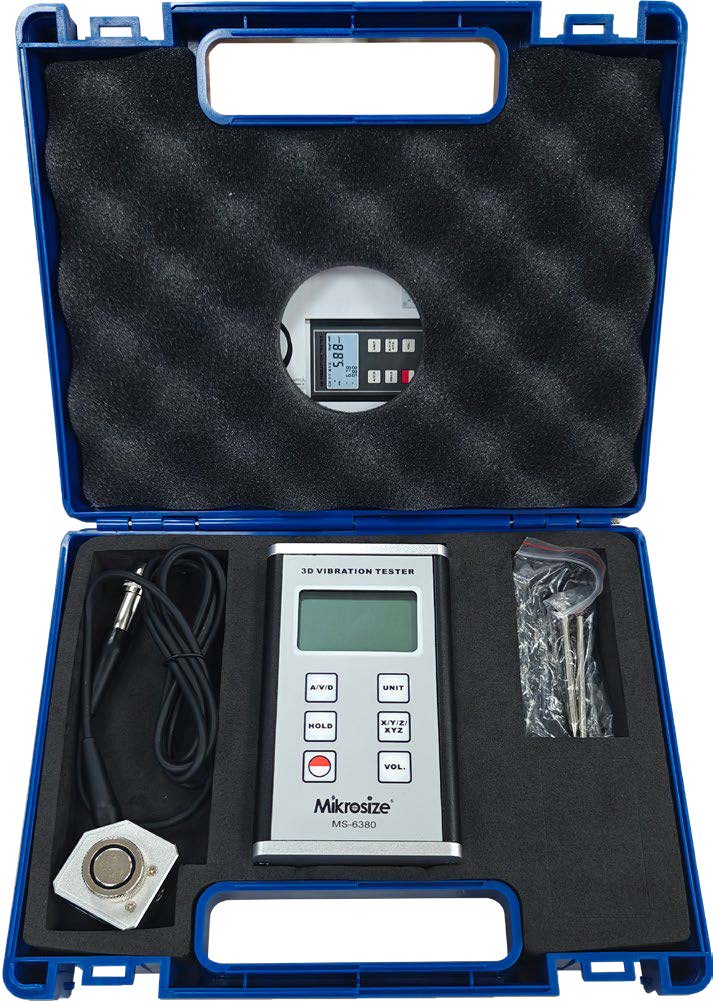

MS-6380 3-Axis Vibration Tester Instruction Manual

Product Features

• Uses piezoelectric acceleration transducer to convert vibration signal.
• In accordance with ISO 2954,GB13823.3, used for periodic measurements, to detect out-of-balance,misalignment and other mechanical faults in rotating machines.
• Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.

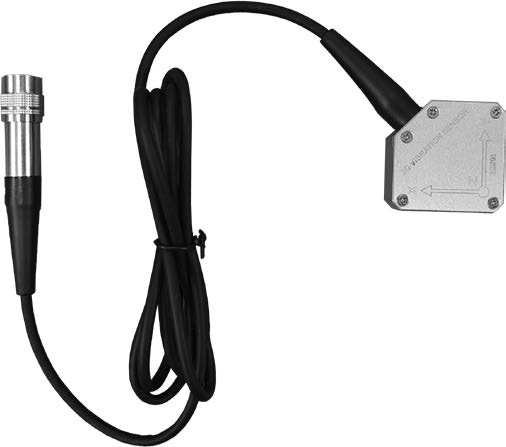

• 3 accelerators in 1 sensor for 3-axis vibration measurement.

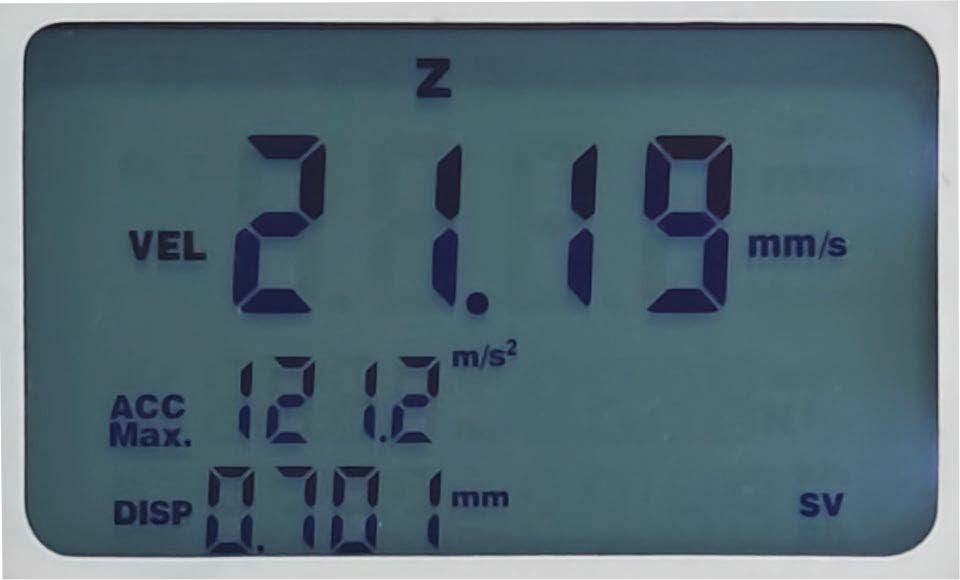

• 3 same parameters  in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
• Bearing condition monitoring function.
• LCD digital display with back light.
• Lightweight and easy to use.
• Wide frequency range (10Hz.~10kHz.)
• Automatic power shut off to conserve power.

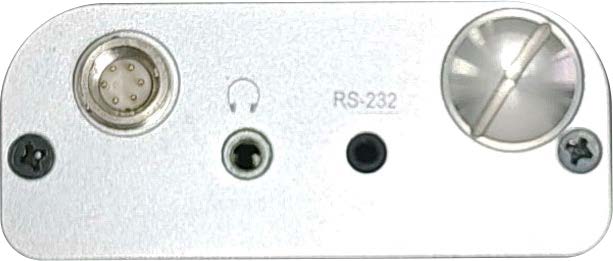

• AC output socket for headphones and recording.
• Optional headphones for use as electronic stethoscope.
• Optional software and cable for RS232C.

Product Application：

• Used for maintenance of mechanical equipment, such as fault diagnosis of bearings and gearboxes.
• By plotting trend charts based on vibration parameters, it predicts fault times in advance, maximizes equipment utilization, and facilitates production by ordering spare parts and formulating maintenance plans simultaneously.
• Monitor the vibration conditions of buildings, bridges, and other structures to ensure their structural safety and stability.
