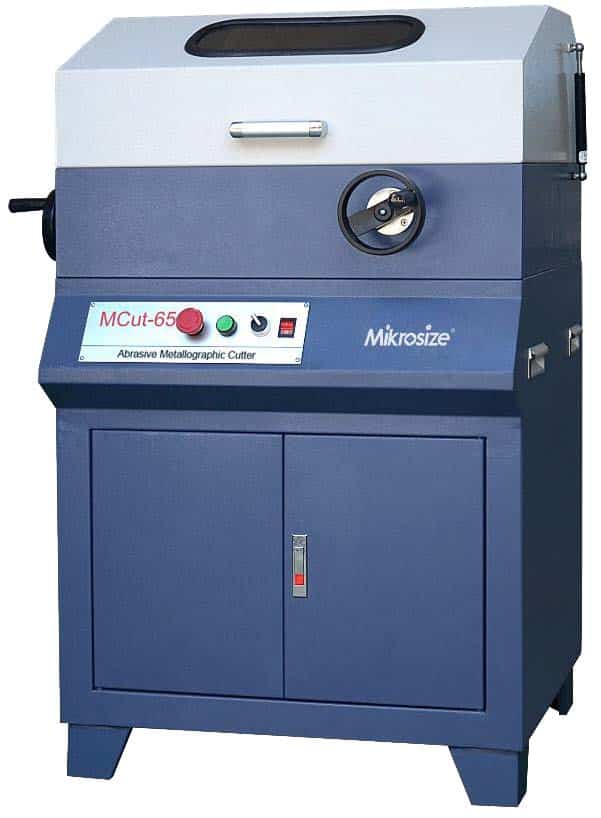

MCut-65 Manual Abrasive Metallographic Cutter
MCut 65 Manual Abrasive Metallographic Cutter
MCut 65 Manual Abrasive Metallographic Cutter图（2）
MCut 65 Manual Abrasive Metallographic Cutter图（3）
MCut 65 Manual Abrasive Metallographic Cutter图（4）
MCut 65 Manual Abrasive Metallographic Cutter图（5）
MCut 65 Manual Abrasive Metallographic Cutter图（6）
Особенности и применение
Product Feature：

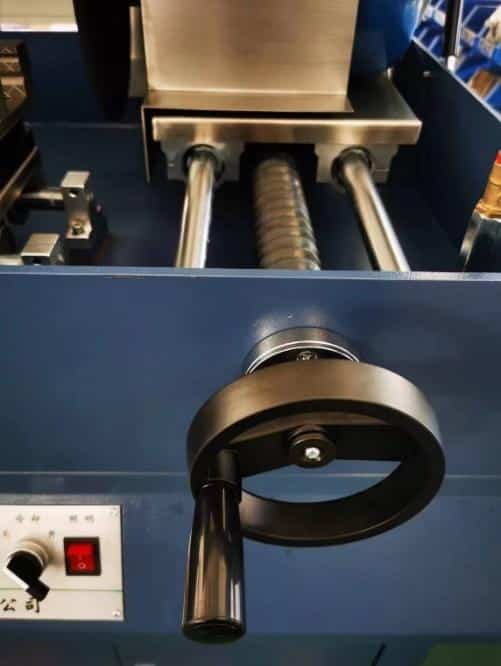

- X-axis manual movement controls cutting thickness
- Y-axis feeding controls sample cutting off
- 1.5kW motor has strong cutting ability and convenient operation.

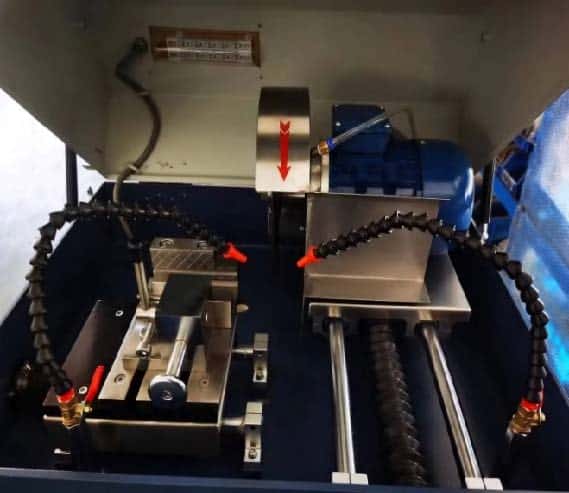

- The main parts of the clamp device and cutting table are all made of stainless steel, which has long service life and convenient maintenance.

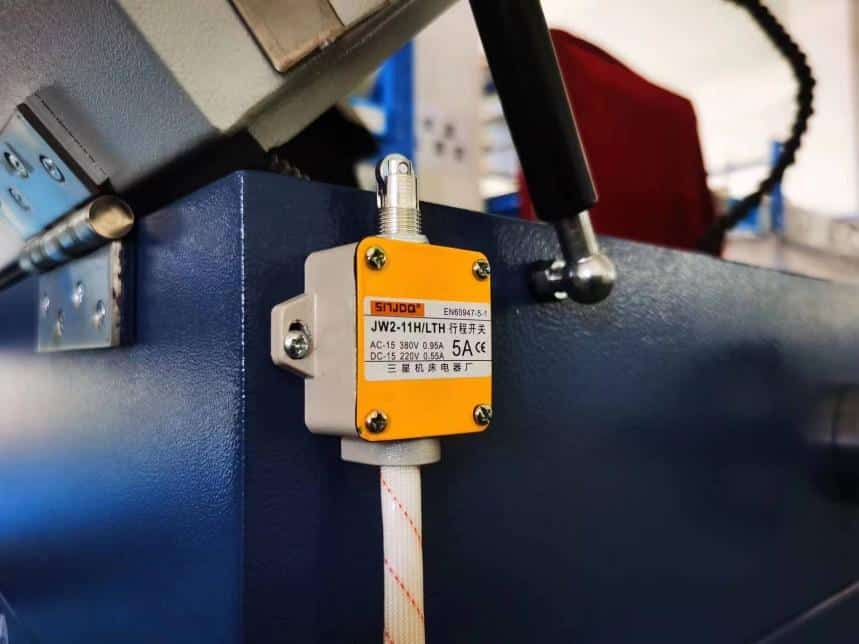

- The cutting chamber adopts closed structure with safety limit switch
- Transparent organic glass window and built-in LED lamp for cutting observation
- With cabinet structure, it is easy to store all kinds of cutting consumables.

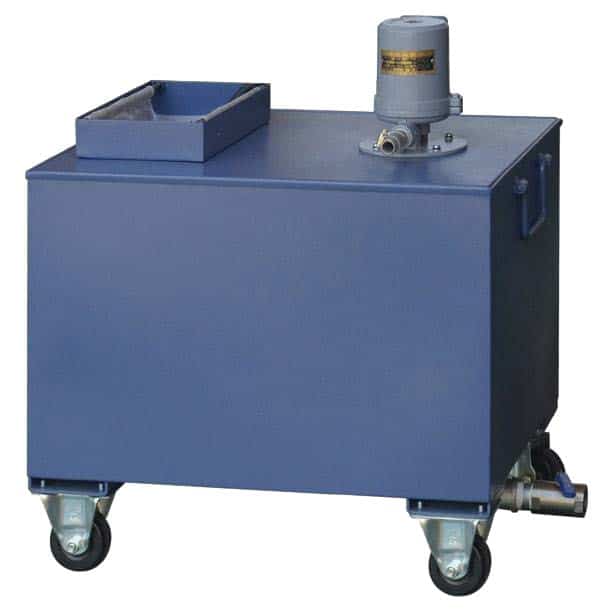

- With circulating cooling water tank, the surface of the sample after cutting is bright and flat without burns.
Product Application：
- This machine is suitable for various metallographic materials。it is the ideal equipment for sample cutting.
Технические характеристики
| Product Name | Manual Abrasive Metallographic Cutter |
| Model | MCut-65 |
| Cutting Method | Manual, Y-axis Feeding |
| Cut-off Wheel | @250×2x@32mm |
| Max. Cutting Capacity | 65×65mm |
| X -axis Travel | 45mm |
| Y -axis Travel | 270mm |
| Spindle Speed | 2800r/min |
| Motor Power | 1.5kW |
| Cutting Table | 130x190mm, T-slot 12mm |
| Clamping Fixture | Quick Clamp, Jaw Height 60mm |
| Power Supply | 380V, 50Hz, 6A, Three-phase, Four-wire |
| Machine Dimensions | 700×520×1110mm |
| Net Weight | 170kg |
| Water Tank Capacity | 60L |
| Pump Flow | 25L/min |
| Water Tank Dimensions | 565×360×600mm |
| Water Tank Weight | 27kg |
Стандартная комплектация
| Name | Specification | Qty | |
| Machine Mainframe | / | 1 set | |
| Water Tank | / | 1 set |
|
| Cut-off Wheel | Φ250×2×Φ32mm Resin cut-off wheel | 1 pc |
|
| Cutting Fluid | 3kg | 1 bottle |
|
| Spanner | 36mm, 14×17mm, 24×27mm | each 1 pc | |
| Water Inlet Pipe | 1/2 Metal pipe | 1 pc | |
| Water Outlet Pipe | Φ32mm | 1 pc | |
| Usage Instruction Manual | / | 1 copy |
