MCut-100 Manual Metallographic Cutter
MCut 100 Manual Metallographic Cutter图（1）

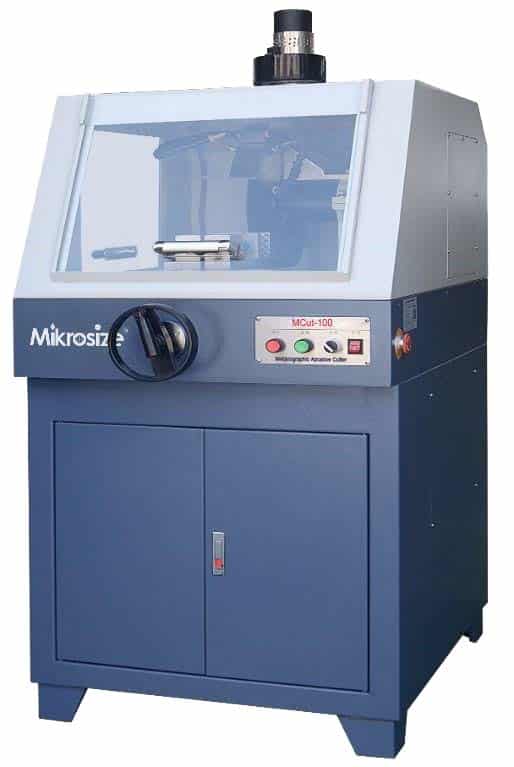

MCut 100 Manual Metallographic Cutter图（2）
MCut 100 Manual Metallographic Cutter图（3）
MCut 100 Manual Metallographic Cutter图（4）
MCut 100 Manual Metallographic Cutter图（5）
MCut 100 Manual Metallographic Cutter图（6）
Видеодемонстрация
Особенности и применение
Product Feature：
- Sample cutting by the longitudinal movement of cutting stage, large cutting range and strong cutting ability.

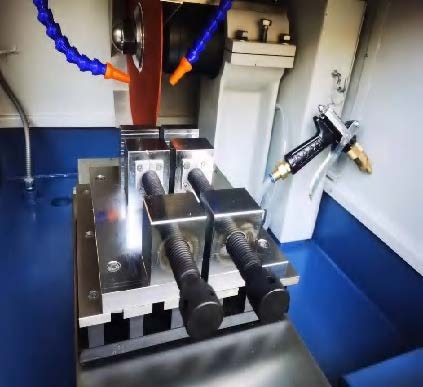

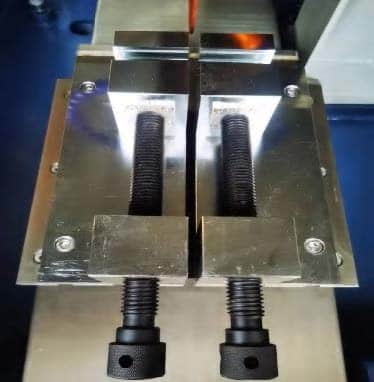

- Double-sided clamp device, fixing the sample firmly.
- The main parts of the clamp device and cutting stage are all made of stainless steel and with built-in flushing water gun,
- The cutting chamber is with two sides transparent organic glass window, built-in LED lamp and powerful exhaust system for user’s observation
- With cabinet structure to store all kinds of cutting consumables.
- With circulating cooling system
Product Application：
- This machine is suitable for various metallographic materials, the surface of sample after cutting is bright and flat without burns, it is an ideal equipment for sample cutting.
Технические характеристики
| Model | MCut-100 |
| Cutting Method | Manual, Y axis Stage Feeding |
| Cutting Disc | Φ380×2.8xΦ32mm |
| Max. Cutting Capacity | 100×120mm |
| Y Axis Travel | 265mm |
| Spindle Speed | 2800r/min |
| Motor Power | 4kW |
| Cutting Stage | 250x240mm, T-slot 12mm |
| Clamping Device | Threaded Clamp, Jaw height 60mm, Opening 120mm |
| Power Supply | 380V, 50Hz, 10A, Three-phase five-wire |
| Machine Dimensions | 800×900×1640mm |
| Net Weight | 340kg |
| Water Tank Capacity | 100L |
| Pump Flow | 25L/min |
| Water Tank Dimensions | 460×600×680mm |
| Water Tank Weight | 36kg |
Стандартная комплектация
| Name | Specification | Qty | |
| Machine Mainframe | / | 1 set | |

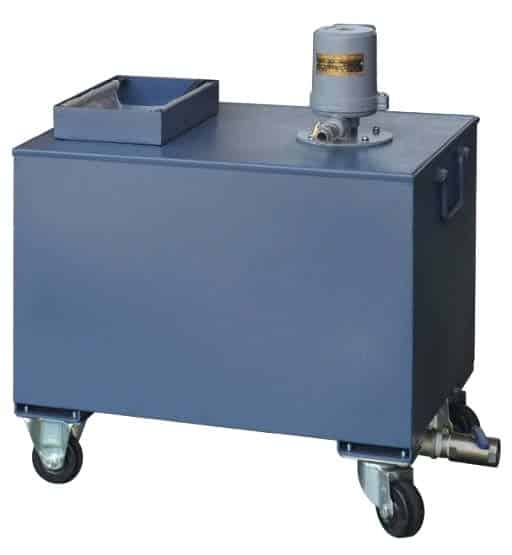

| Water Tank | / | 1 set |
|
| Cutting Disc | Φ380×2.8×Φ32mm Resin cut-off wheel | 2 pcs |
|

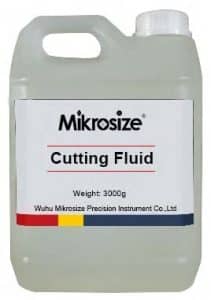

| Cutting Fluid | 3kg | 1 bottle |
|

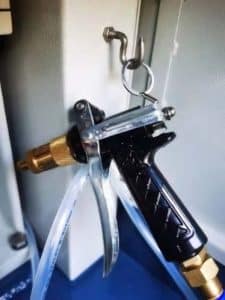

| Cleaning Water Gun | Handheld | 1 pc |
|
| Wrench | 36mm, 46mm | each 1 pc | |
| Inner Hexagon Spanner | 5mm, 6mm | each 1 pc | |
| Socket Spanner | 24mm | 1 pc | |
| Water Inlet Pipe | Φ20mm | 1 pc | |
| Water Outlet Pipe | Φ48mm | 1 pc | |
| Fan Pipe | / | 1 pc | |
| Fan | / | 1 pc | |
| Usage Instruction Manual | / | 1 copy |
