Line Scale Ruler
3 包装箱
4 二等玻璃线纹尺 1
2 标准玻璃线纹尺 4
1 标准玻璃线纹尺 3
Особенности и применение

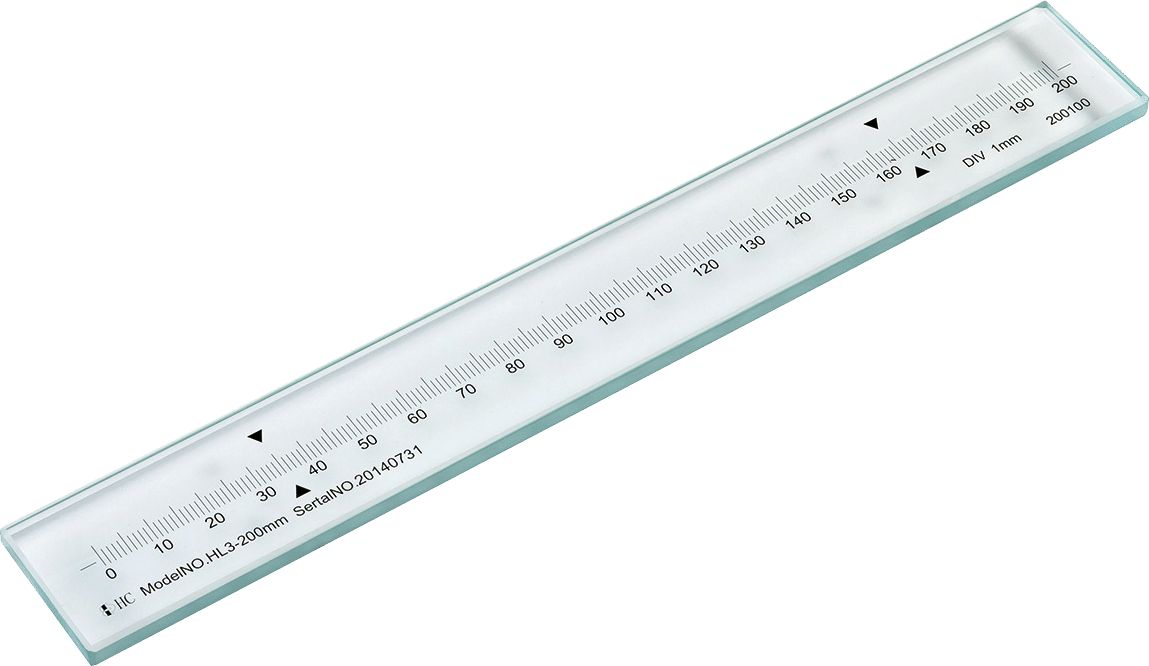

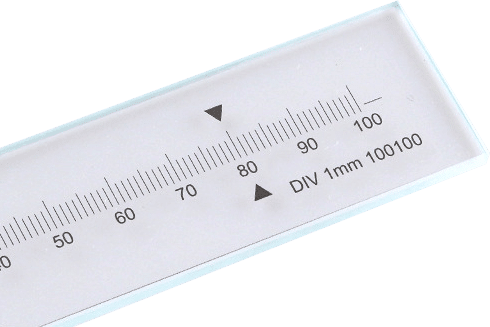

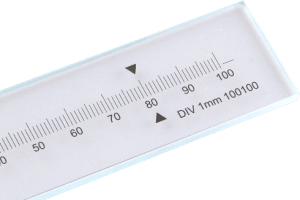

STANDARD GLASS LINEAR SCALE RULER
| Model |
Length(mm) |
Width(mm) |
Thickness(mm) |
Division value(mm) |
Accuracy(um) |
| MSL01-100 |
100 |
30 |
5 |
0.1,0.5,1 |
1 |
| MSL01-200 |
200 |
30 |
5 |
0.1,0.5,1 |
1 |
| MSL01-300 |
300 |
30 |
5 |
0.1,0.5,1 |
1 |
| MSL01-400 |
400 |
30 |
5 |
0.1,0.5,1 |
1 |
| MSL01-500 |
500 |
30 |
5 |
0.1,0.5,1 |
1 |
| MSL01-600 |
600 |
30 |
5 |
1 |
3 |
| MSL01-700 |
700 |
30 |
5 |
1 |
3 |
| MSL01-800 |
800 |
30 |
5 |
1 |
5-8 |
| MSL01-1000 |
1000 |
30 |
5 |
1 |
8-10 |
 |
 |
|
|
● High precision: It is accurate to micrometers (μm) and is used for measuring tools and precision machine tools. The precision is absolutely exact.
● Strong stability: It has a low coefficient of thermal expansion and excellent corrosion resistance, and can be used in various harsh environments.
●Resistant to scratching: With high-quality glass material, it has good physical properties, extremely high hardness and a high level of scratch resistance.
● High transparency: There are extremely few bubbles and impurities, and it is transparent and uniform as a whole.

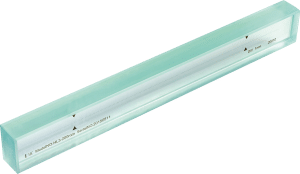

SECOND-CLASS GLASS LINEAR SCALE RULEL
| Model |
Length(mm) |
Width(mm) |
Thickness(mm) |
Division value(mm) |
Accuracy(um) |
| MSL01-10-GB |
46 |
30 |
5 |
0.01 |
1 |
| MSL01-100-GB |
130 |
30 |
10 |
1 |
1 |
| MSL01-200-GB |
230 |
30 |
10 |
1 |
2.5 |
| MSL01-300-GB |
330 |
30 |
15 |
1 |
2.5 |
| MSL01-400-GB |
430 |
30 |
15 |
1 |
3 |
| MSL01-500-GB |
530 |
30-35 |
15-25 |
1 |
3.5 |
 |
●The engraved lines are located between the two layers of glass and will not be worn out.
●High precision: Precise to micrometers (μm), it is applied to measuring tools and precision machine tools, and the accuracy is absolutely spot-on.
●It has strong stability: With a low coefficient of thermal expansion and excellent corrosion resistance, it can be used in various harsh environments.
●Scratch-resistant: The glass material is of high quality, with good physical properties, extremely high hardness and excellent scratch resistance.
●High transparency: There are very few bubbles and impurities, and it is uniformly transparent throughout.
