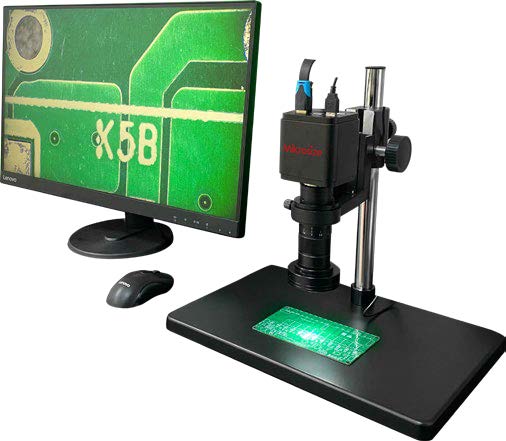

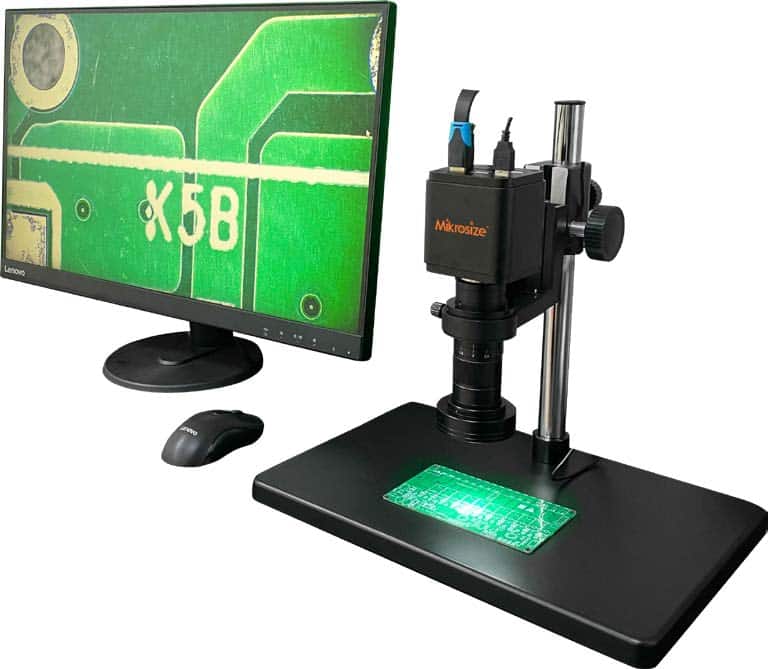

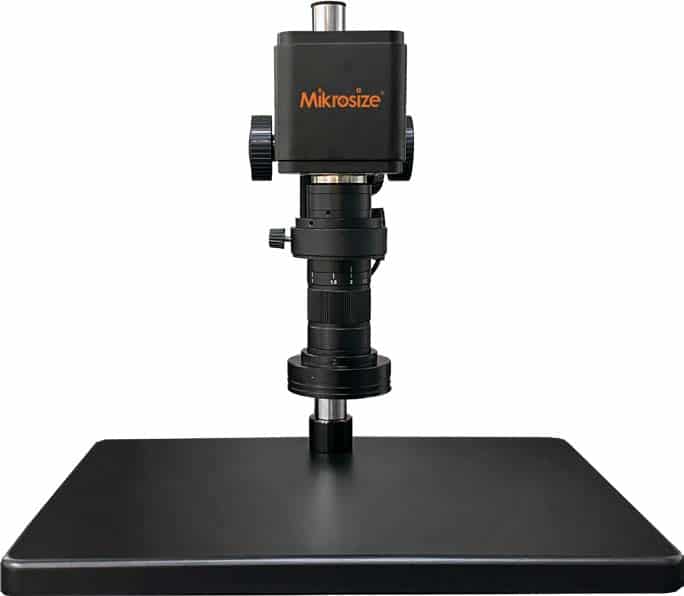

iVideo-80 Digital Video Microscope
Видеодемонстрация
Особенности и применение
Product Features:
- Back-illuminated CMOS sensor, adaptively switch between 4K and 1080P, providing clear imaging and high resolution.

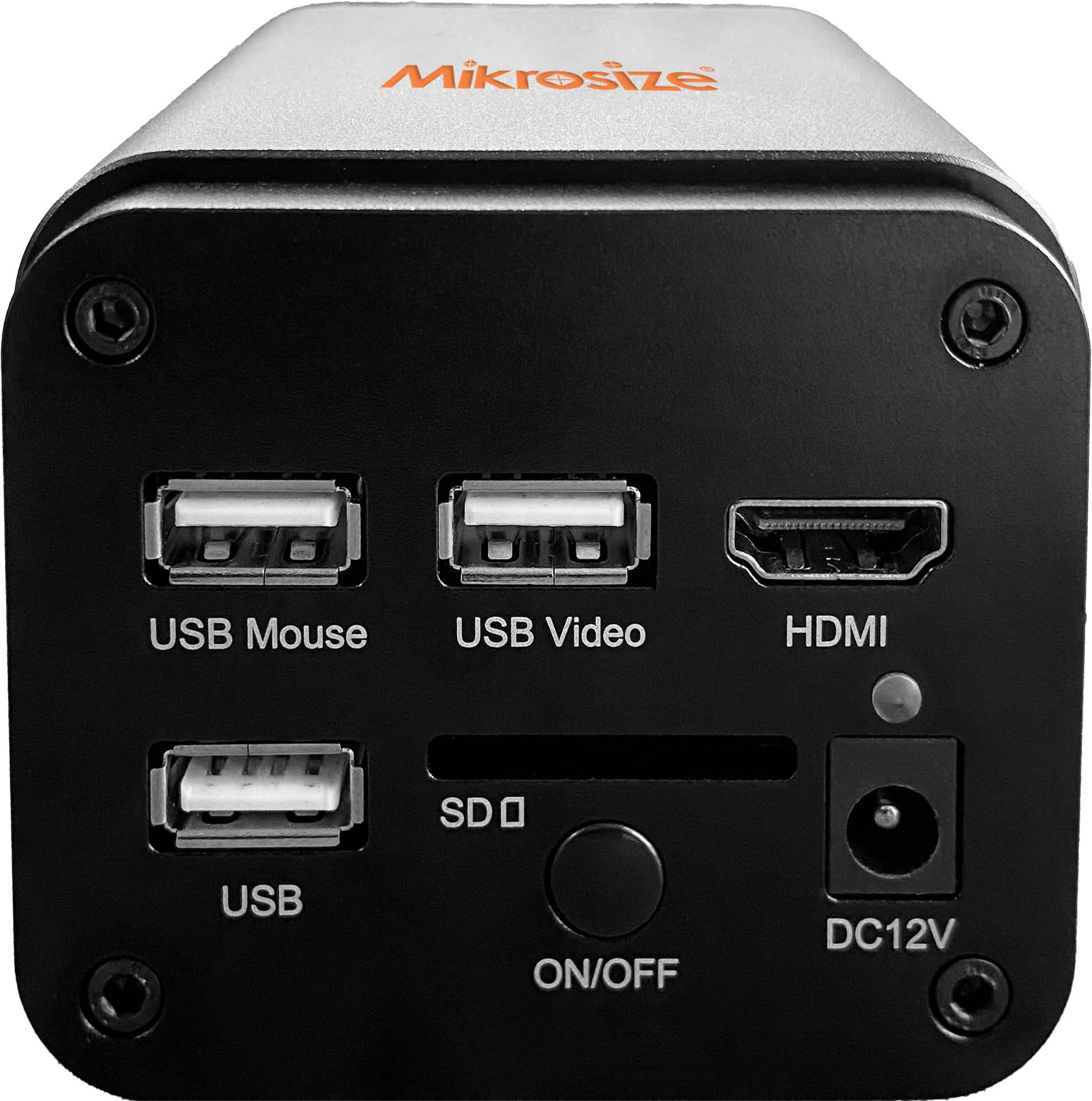

- It has multiple interface outputs such as HDMI and USB, offering various connection methods and being adaptable to a variety of devices for flexible use.

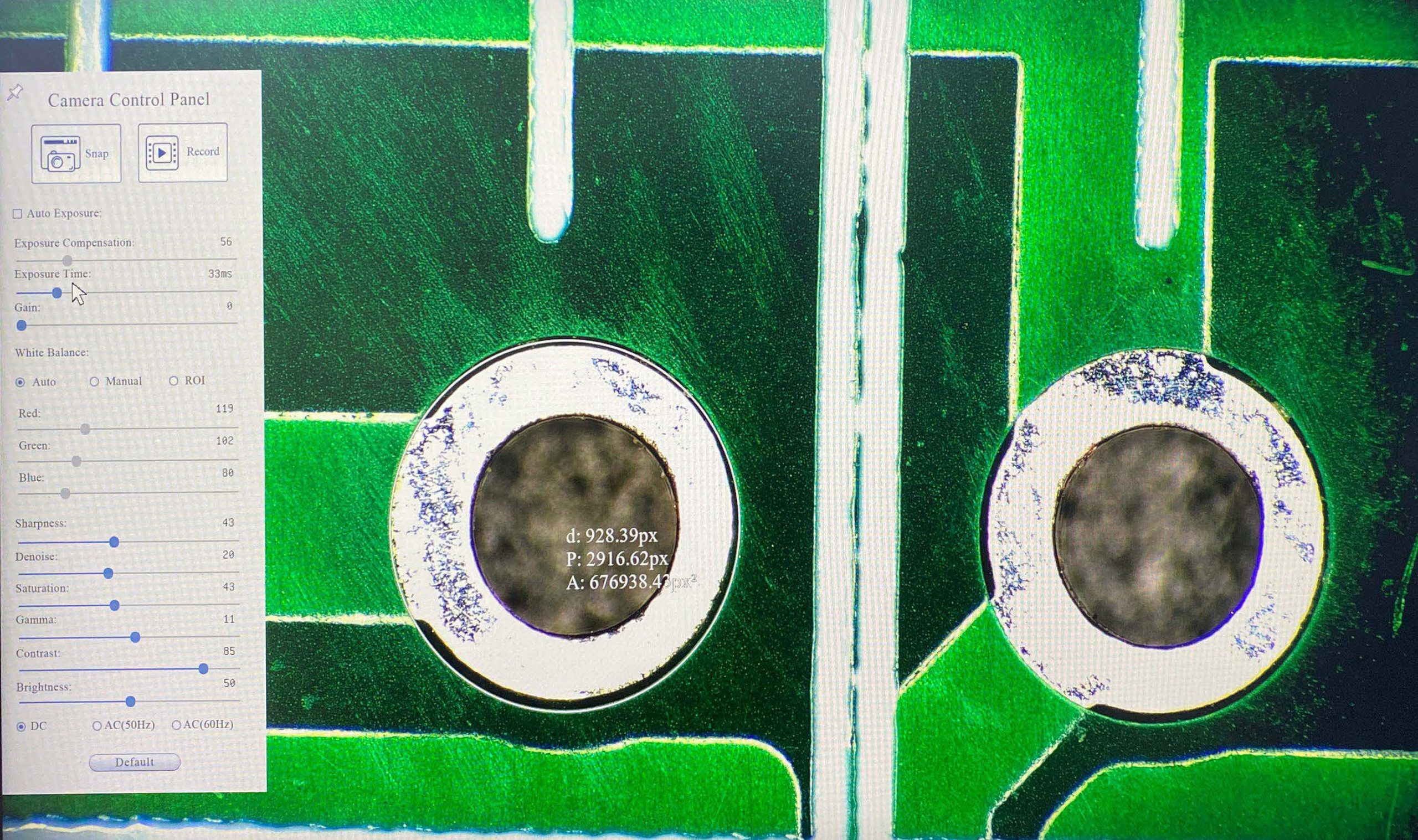

- Powerful ISP function, supporting multiple adjustments such as automatic/manual exposure and white balance to optimize the image.

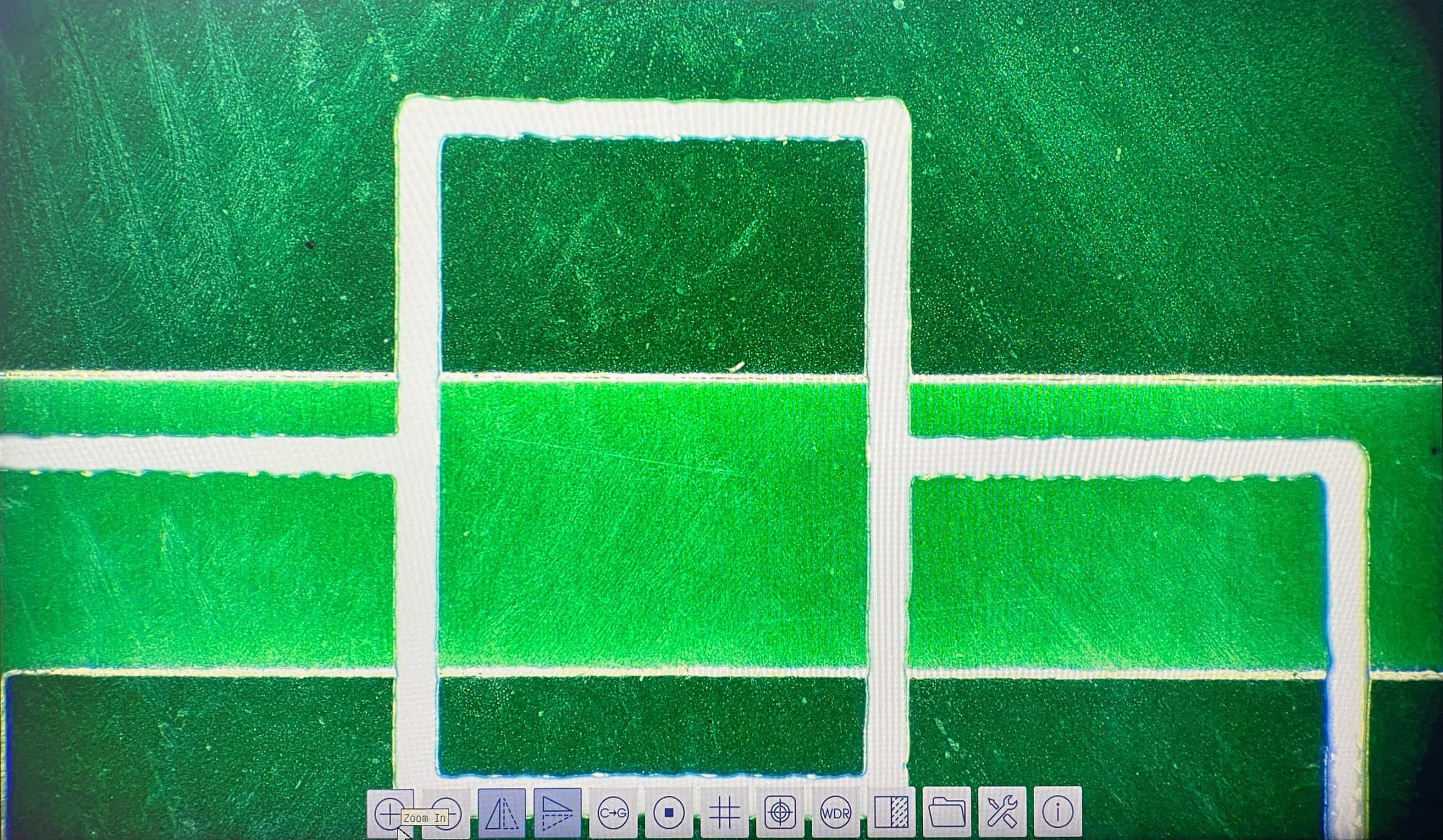

- Powerful software functions and convenient operation, it sup- ports multiple languages for different users.
- It supports storage via SD card and USB flash drive, with the SD card priority.Convenient storage and ensures data security.
- Camera has strong adaptability to working environment, working temperature ranging from -10℃ to 50℃ and a humidity of 30% to 80% RH.
Product Application:

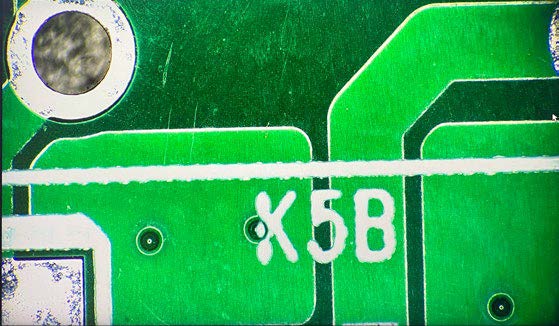

- High-definition imaging and measurement functions, it can accurately detect product defects.
- Industrial inspection field. Various image adjustment functions, assisting in the inspection of industrial parts.
- Scientific research. High resolution and powerful functions provide clear images for scientific research observations.
- Education field. It is convenient for teachers to display micro- scopic structures and assist in the implementation of teaching activities.
- Video collection of stereo microscopes, recording the experi- mental process ,facilitating analysis and research.
- Image collection of biological microscopes, meeting image acquisition in biological research and teaching.
Технические характеристики
| Magnification Ratio(27-inch Monitor) | 54.3X-349.4X | |
| Objective Lens | 0.7X~4.5X The back focal length is adjustable, and the magnification ratio can be fixed. | |
| LED ring light source | Maximum Diameter is 65mm. Central Diameter is 40mm. | |

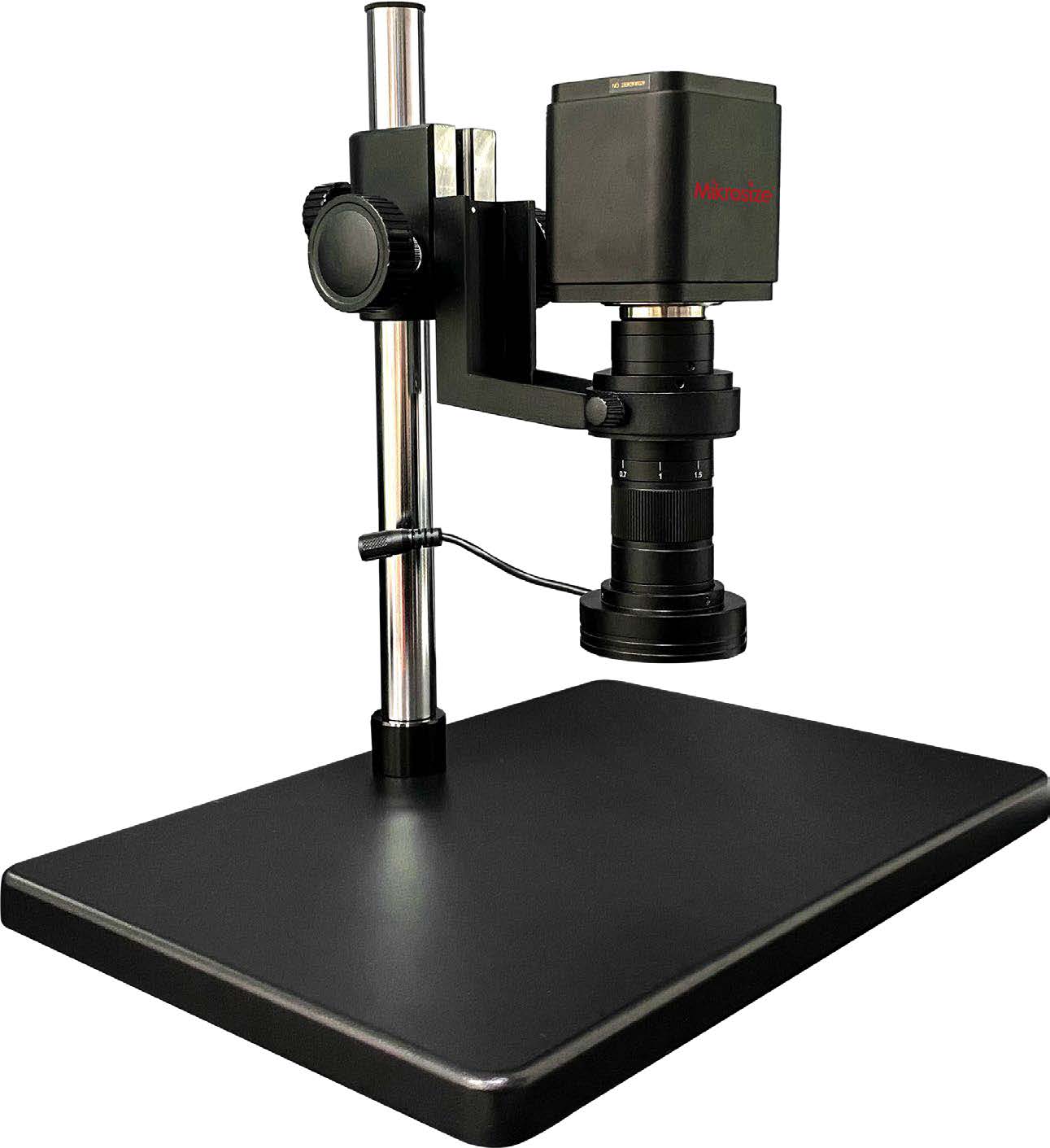

| Bracket | Column Aperture | 25mm |
| Lens Aperture | 50mm | |
| Apertures Central Distance | 140mm | |
| Lifting Range | 62mm | |
| Support | Base Size | 380*248*23 mm |
| Column Height | 340mm | |
| Column Diameter | 25mm | |
Стандартная комплектация
| Name | Qty | |

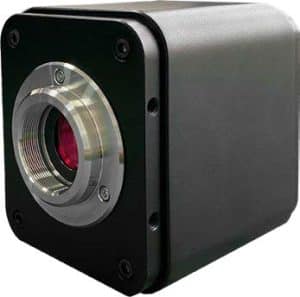

| Camera | 1 pc |
|

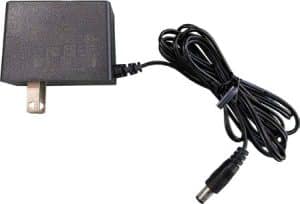

| Power Adapter | 1 pc |
|

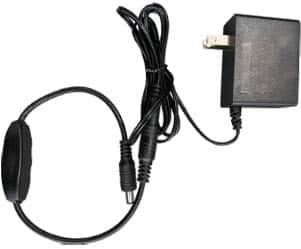

| Power Adapter for LED Light Source | 1 pc |
|

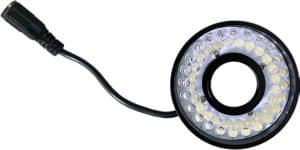

| LED Light Source | 1 pc |
|
| USB Mouse | 1 pc |
|

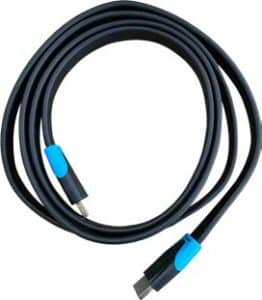

| HDMI Cable | 1 pc |
|

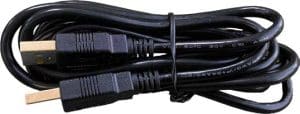

| 2M USB 2.0 Cable | 1 pc |
|

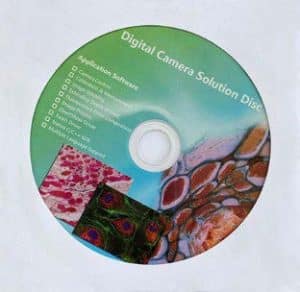

| CD (Drivers and Appli- cation Programs) | 1 pc |
|
