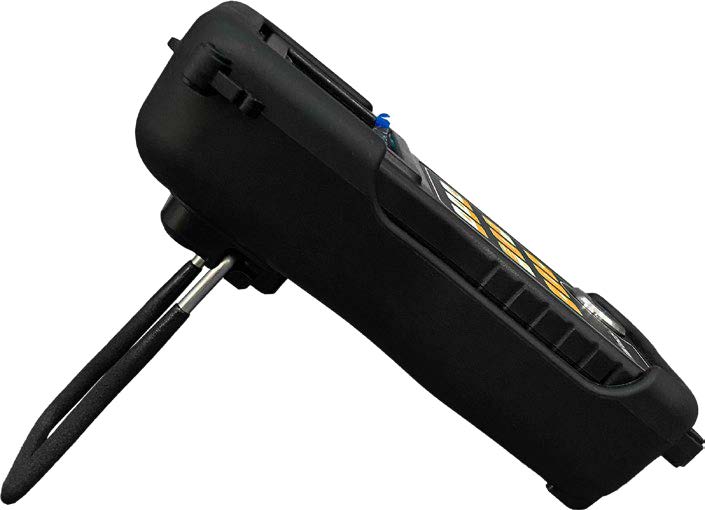

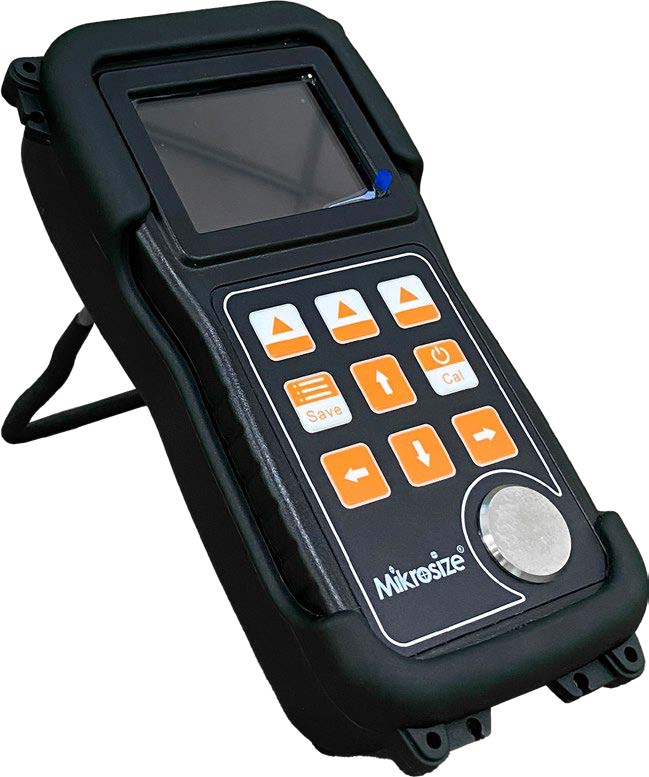

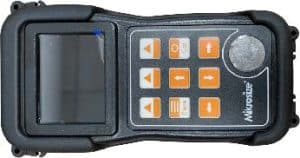

iThick-7000 Ultrasonic Thickness Gauge

Product Features：

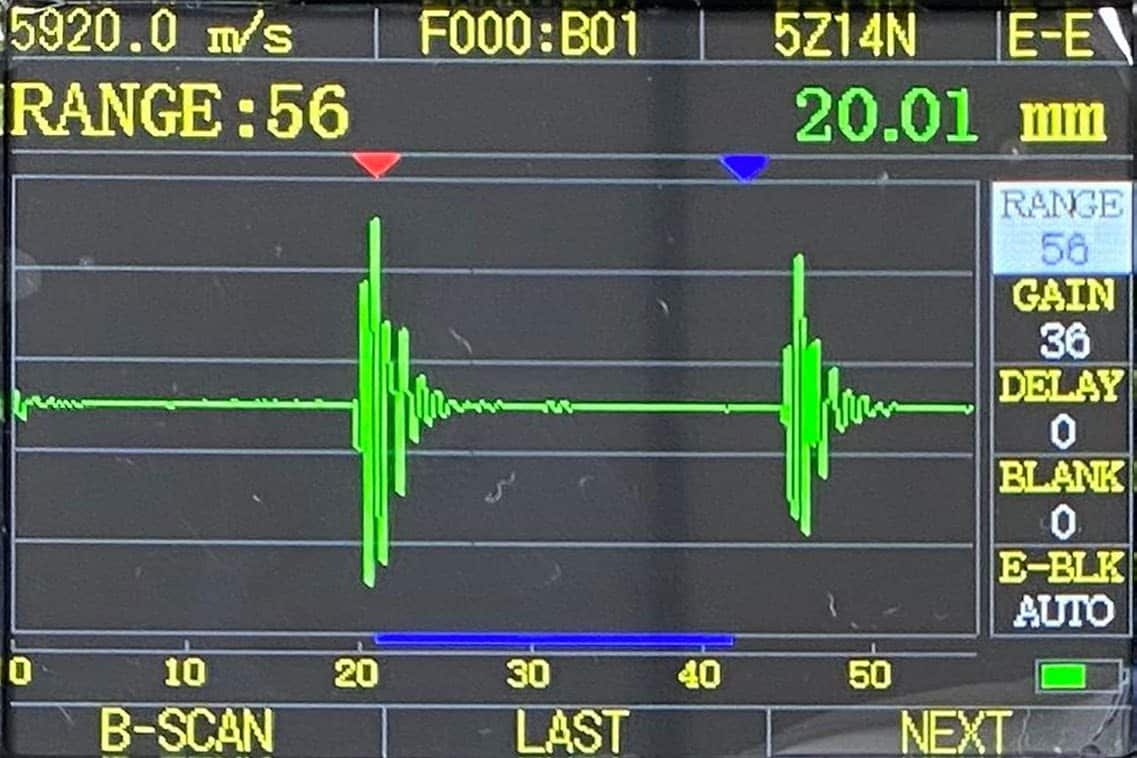

• Features A-scan, B-scan, and numerical display modes, with the numerical display mode including regular, differential, and maximum/minimum capture modes to meet various measurement requirements.
• Equipped with automatic ranging, automatic freeze, automatic E-blanking, automatic gain, and other functions to enhance measurement convenience and accuracy.
• Thickness alarm function: Changes the color of thickness values and sounds a buzzer alarm when measurements exceed the upper or lower limits. Probe coupling prompt: Displays thickness values in white font and sounds a buzzer prompt when coupling is good.
• Bandwidth of 1MHz-20MHz, gain of 72dB with step adjustment, automatically adjustable averaging times, multiple selectable update rates, diverse filters, abundant probe types, multiple measurement modes, and an effective range of 0.15-3200mm (longitudinal wave in carbon steel).
• Can save 520 files, with each file recording 252 sets of thickness values, totaling 130,000 sets. Uses a grid file format for easy access and selection of storage locations.
• Includes functions such as automatic shutdown (sleep mode), buzzer alarm, upper computer communication, backlight adjustment, etc., to adapt to various working environments and needs.

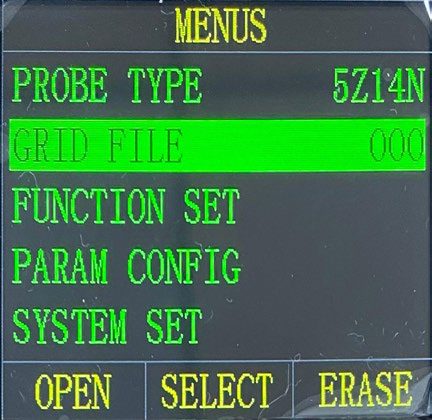

• The keyboard has 9 clearly defined keys for easy operation. The menu interface allows adjustment of multiple parameters, such as measurement range and mode.
• Includes bundled Data View upper computer software for data statistics, analysis, archiving, and report printing.

Application：

• Used to measure the thickness of metal products such as steel plates and aluminum plates, ensuring the precise thickness of products like automobile body panels and aircraft frames.
• Can measure the thickness of concrete columns and walls to assess their strength, check the thickness of floor concrete to ensure uniformity, and is also used for metal corrosion inspection to measure thickness reduction due to external corrosion in a non-destructive manner.
• Measures the thickness of metal pipes, containers, and plates to provide important data for quality control during production processes. Detects material uniformity and defects in welding, casting, and other processes.
