iStereo-211VT Stereo Microscope

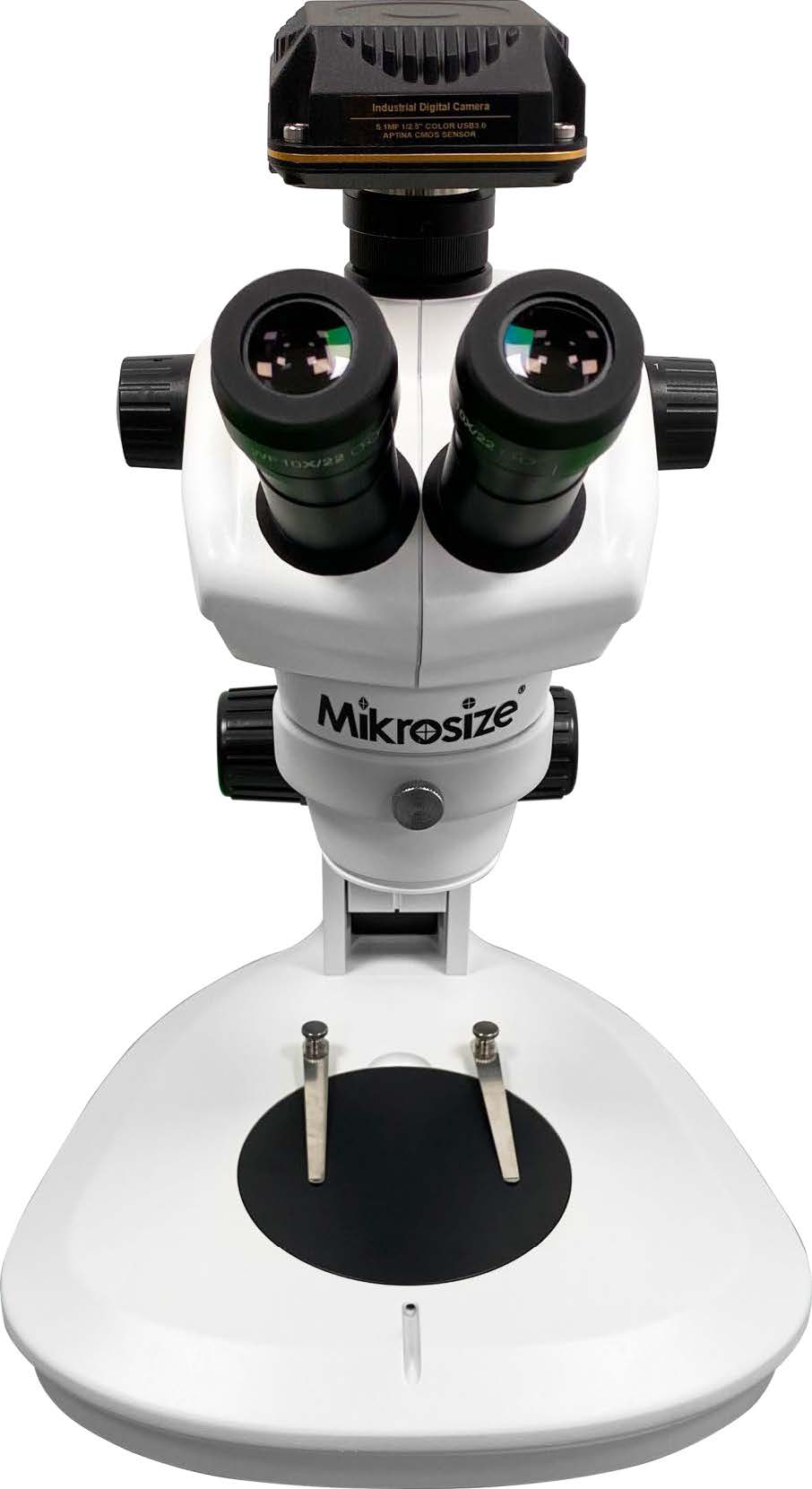

IStereo 211VT Stereo Microscope（1）

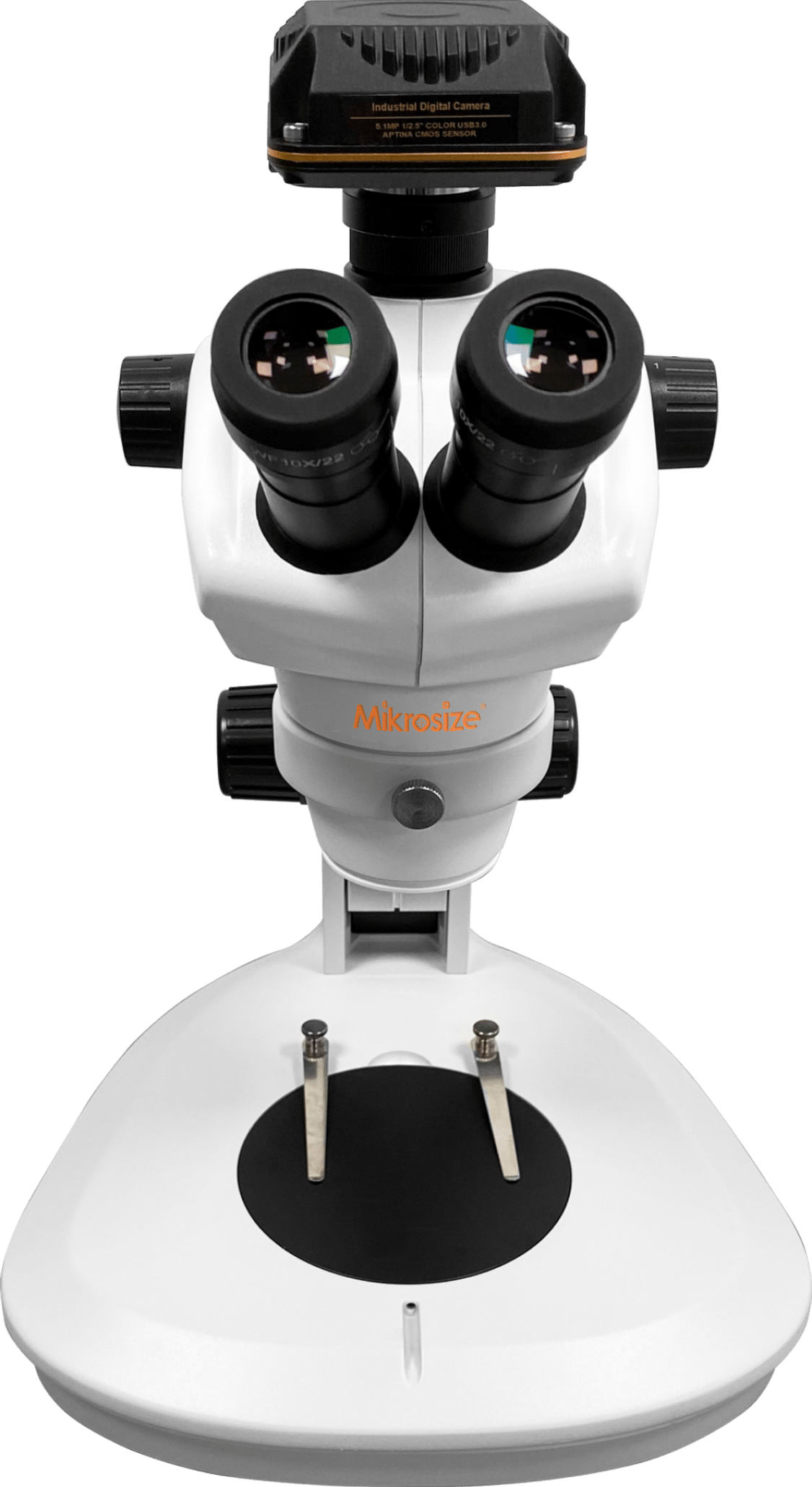

IStereo 211VT Stereo Microscope（2）

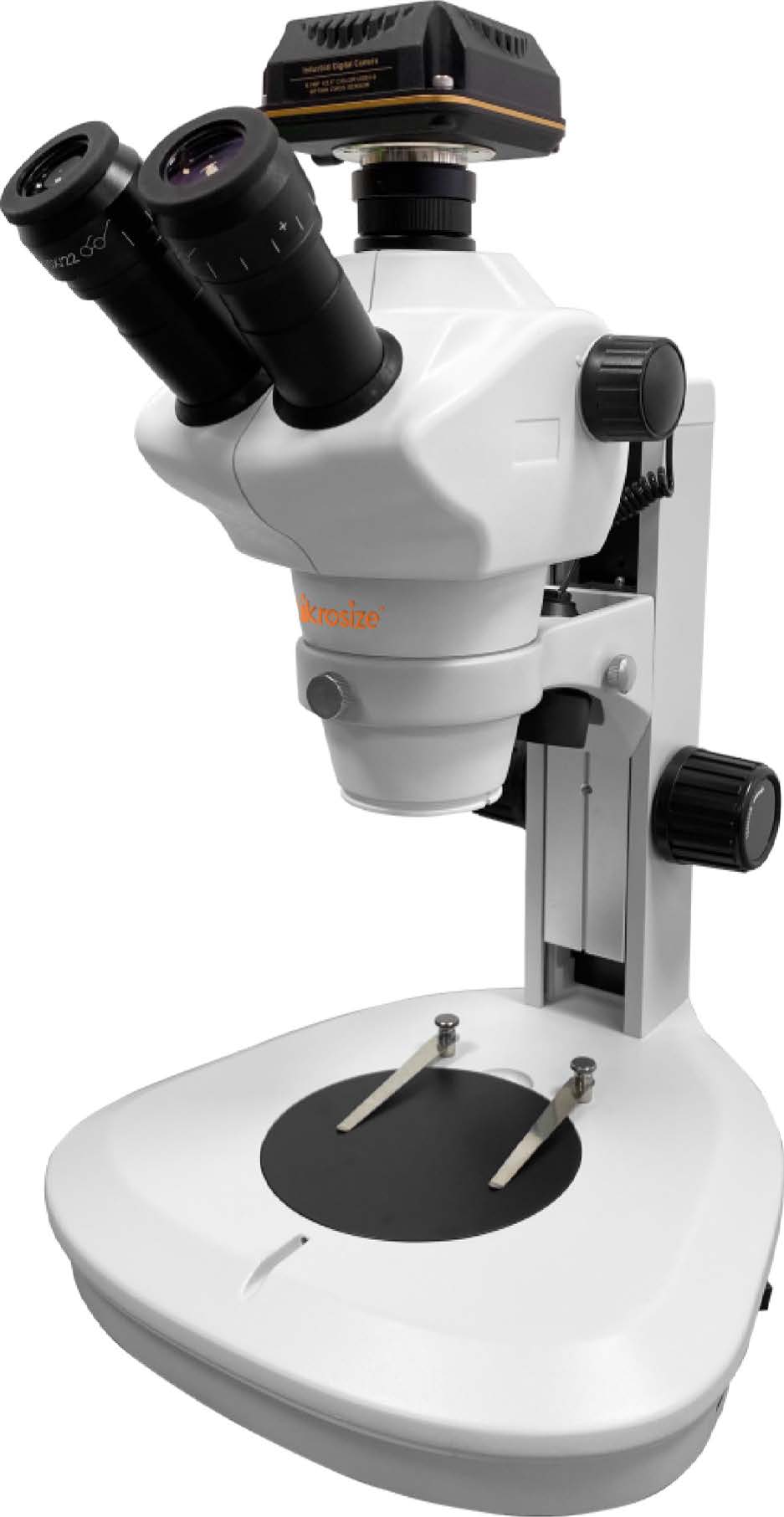

IStereo 211VT Stereo Microscope（3）

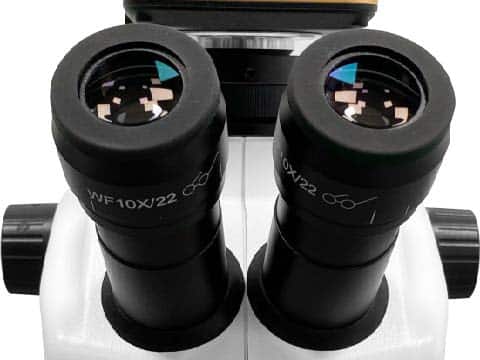

IStereo 211VT Stereo Microscope（4）

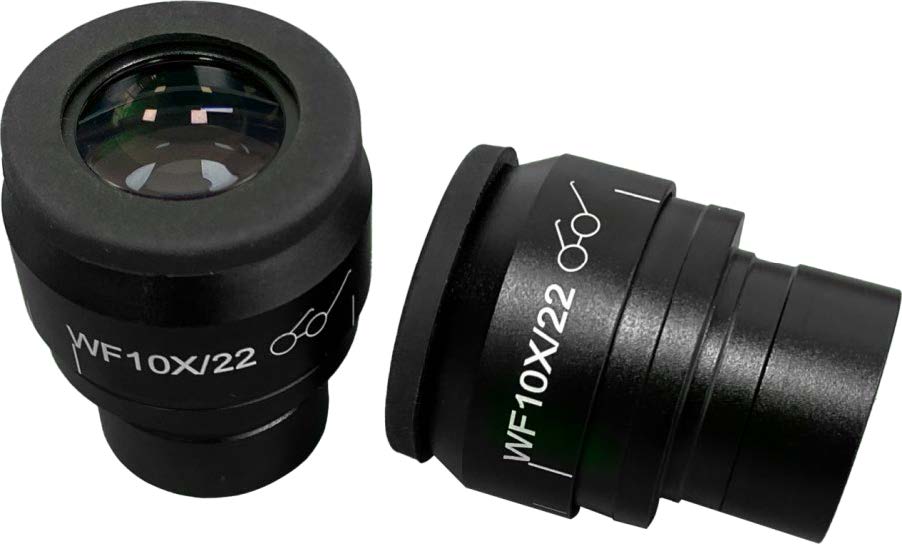

IStereo 211VT Stereo Microscope（5）

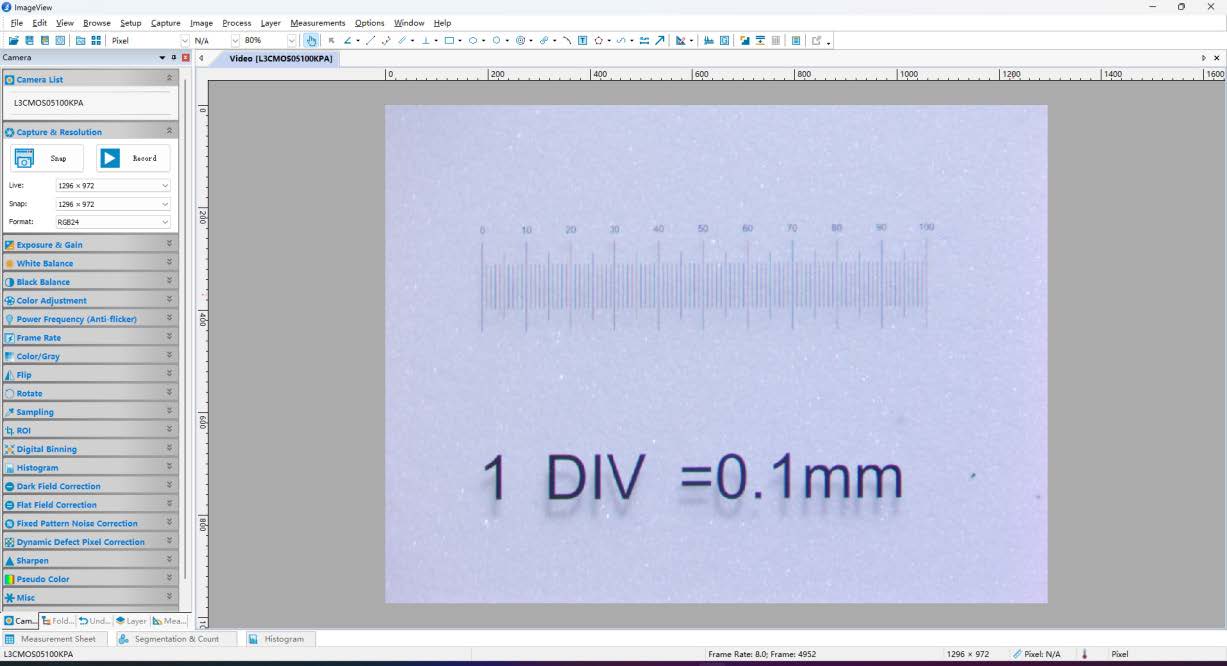

IStereo 211VT Stereo Microscope（6）
Видеодемонстрация
Особенности и применение
Product Feature：
- Continuous zoom ratio 1:6.3.
- Anti static function:zoom lens tube, 10X eyepiece, auxiliary objective lens, it is very useful when observing samples this function is used, the microscope can be grounded through the ground socket behind the stand).
- Sealing function:zoon lens tube and 10x eyepiece making it convenient to use the microscope in environments with high humidity such as oil vapor and water vapor.
- Ergonomic design ensures longer and more comfortable operation for operators.
- High definition, large viewfield, long working distance, various magnification and accessories for choose.
Product Application:
- Training and education in natural sciences provided by schools and research institutes.
- Daily inspections in medical institutions, research in biology and electronic engineering.
- Industrial assembly, testing, measurement, and quality control, especially IT industry inspection.
Технические характеристики
| Auxiliary objective lens | Eyepiece | ||||||||
| 10xΦ22 | 15xΦ16 | 20xΦ12.5 | 30xΦ7 | ||||||
| Magnification | Viewfield(mm) | Magnification | Viewfield(mm) | Magnification | Viewfield(mm) | Magnification | Viewfield(mm) | ||
| / | 115 | 8-50x | Φ27.5-4.4 | 12-75x | Φ20-3.2 | 16-100x | Φ15.6-2.5 | 24-150x | Φ8.8-1.4 |
| 0.5X | 211 | 4-25x | Φ55-8.8 | 6-38.5x | Φ40-6.4 | 8-60x | Φ31-2.5 | 12-75x | Φ17.6-2.8 |
| 2X | 43.5 | 16-100x | Φ13.8-2.2 | 24-150x | Φ10-1.6 | 32-200x | Φ7.8-1.3 | 48-300x | Φ4.4-0.7 |
Стандартная комплектация
| Item | Qty | Photo |

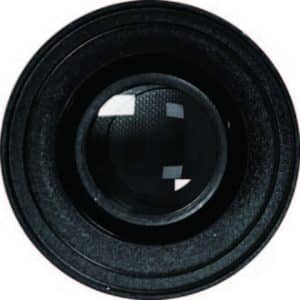

| 10x Eyepiece | 2pcs |
|

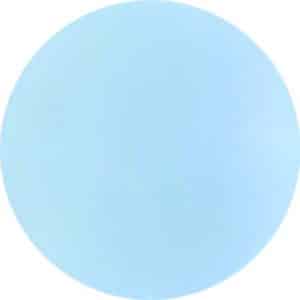

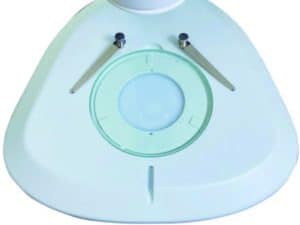

| Glass Plate | 1pc |
|

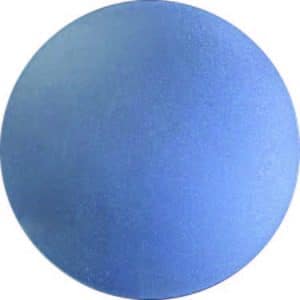

| Black and white board | Each 1 pc |
|
| Zoom lens tube | 1 set | |
| Transmission rack | 1 set | |
| Mainframe | 1pc |
Опциональная комплектация
| Item | Qty | Photo |
| 15x Eyepiece | 2pcs |
|
| 20x Eyepiece | 1pc | |

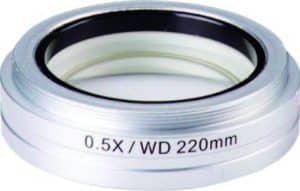

| 0.5X Auxiliary objective lens | Each 1 pc |
|
| 2X Auxiliary objective lens | 1 set | |

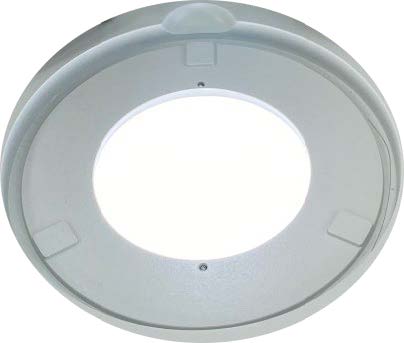

| LED Circular illumination | 1 set | |
| Oblique illumination（LED） | 1pc | |
| 10X Dividing eyepiece | 1pc | |
| Micrometer | 1pc |
|

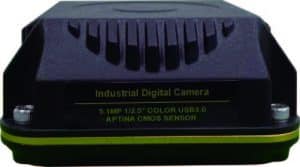

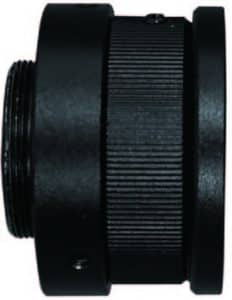

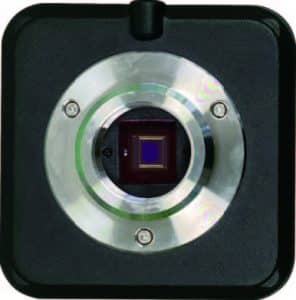

| Adapter+CCD | 1pc |
|
| Universal bracket stand | 1pc |
