iStereo-165D Long Arm Stereo Microscope(Double Rod)

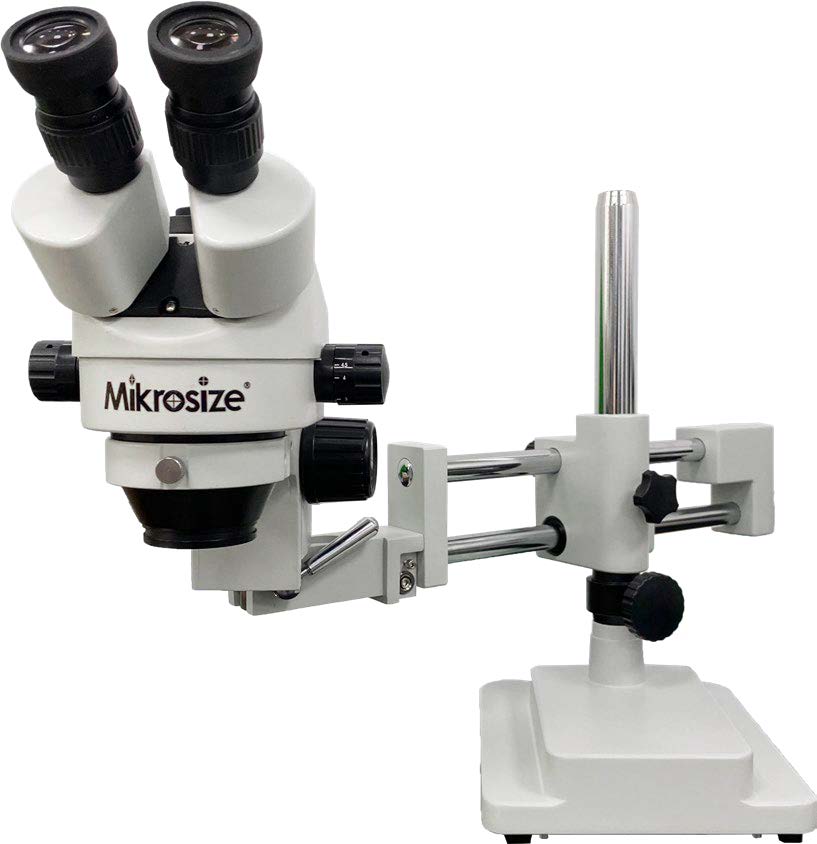

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(1)

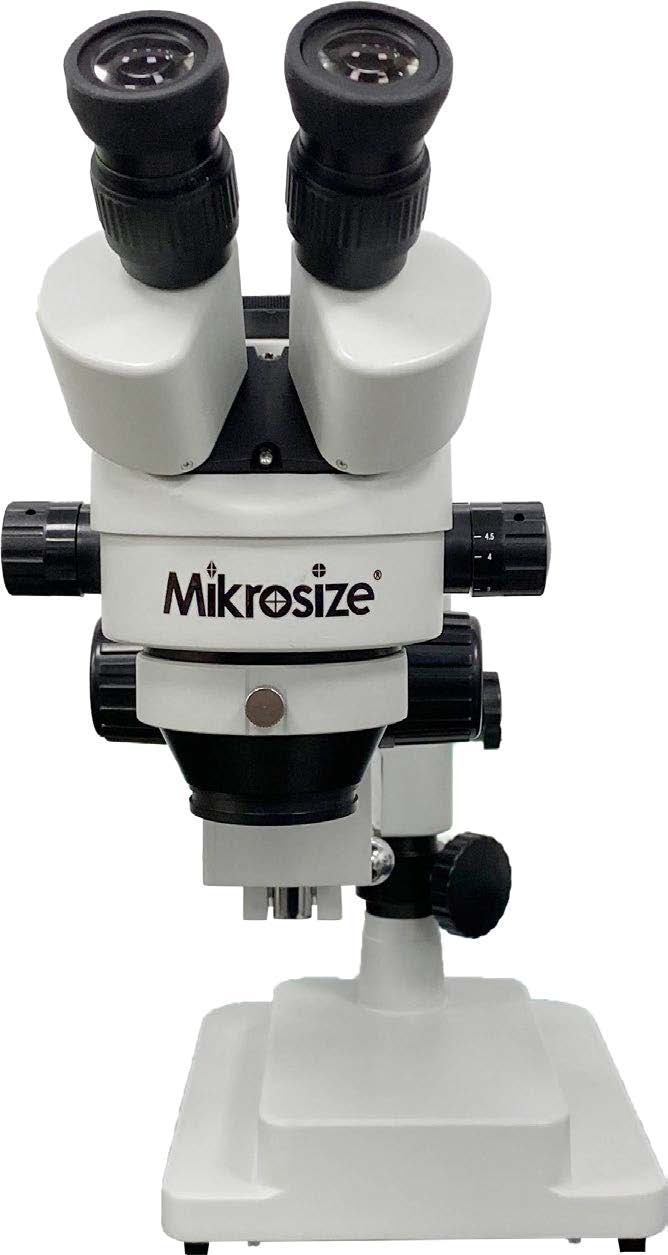

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(2)
iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(3)

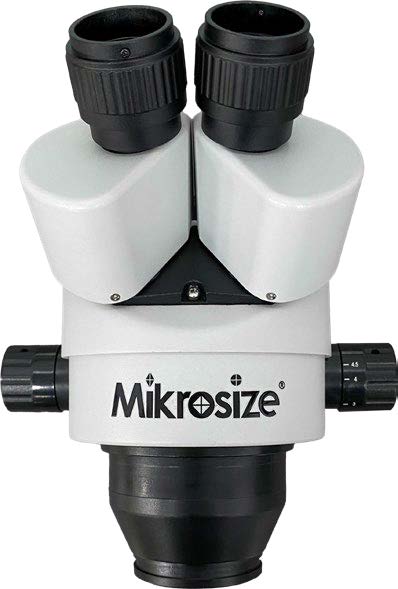

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(4)

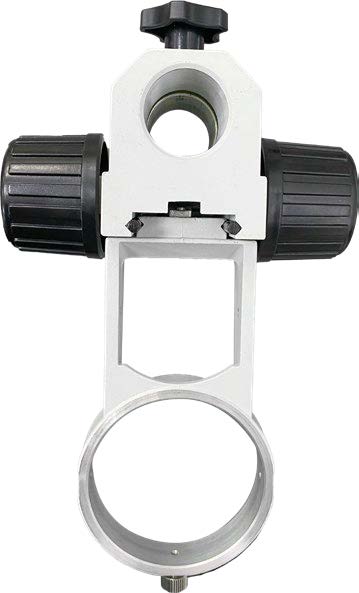

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(5)

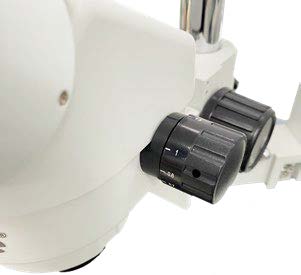

iStereo-165D Long Arm Support Stereo Microscope(Double Rod)(6)
Миниатюра 1
Миниатюра 2
Миниатюра 3
Миниатюра 4
Миниатюра 5
Миниатюра 6

Видеодемонстрация

Особенности и применение

Product Feature:

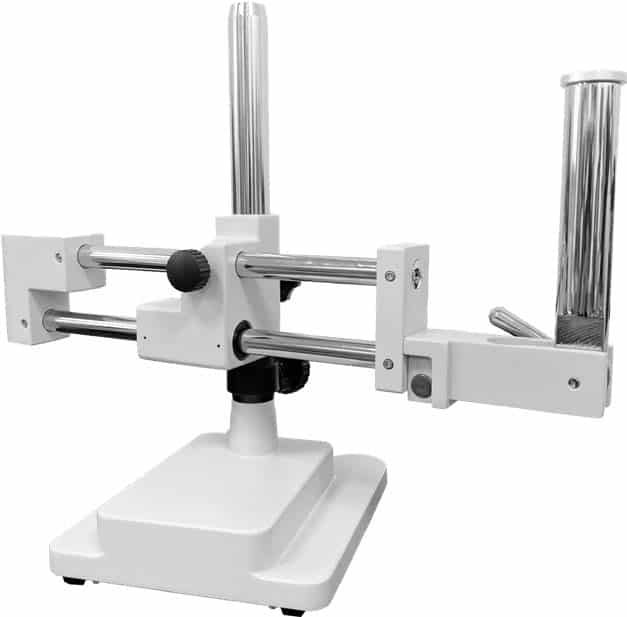

  • Flexible bracket design: double-rod long arm structure, flexible adjustment in X and Y directions, wide operating range, suitable for a variety of complex observation environments;
  • Excellent optical effect: presents clear upright three-dimensional images with strong stereoscopic effect, one-time focusing and continuous zooming, large field of view and depth of focus, and can clearly observe all levels of objects;
  • Convenient operation function: The binocular tube can be rotated 360° and positioned arbitrarily, and the long working distance facilitates the operation of large objects;
  • Rich accessory configuration: different eyepieces, objective lenses and various illumination systems can be selected to meet the diverse observation needs in biology, industry, teaching and other fields;
  • Can be connected to an external camera to observe on the computer screen;
  • Module and combination series design to expand the scope of application.

Product Application:

  • Dual-rod long-arm stereo microscopes are widely used in the biomedical field and can assist in anatomical research, cell culture monitoring and pathological diagnosis;
  • It plays a significant role in industrial manufacturing and testing, and can detect electronic components, precision machining and material surfaces to ensure product quality;
  • Can be used for multidisciplinary experimental teaching and vocational skills training
  • It has been applied in other fields such as agricultural research , jewelry identification,observing plant seed structure and detecting gemstone characteristics etc.

Технические характеристики

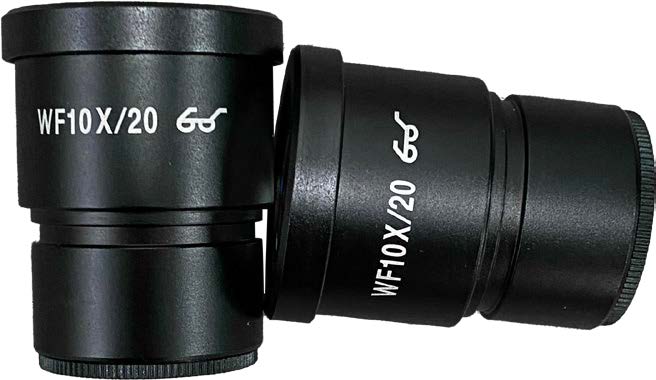

Eyepiece Standard configuration: 10X/20mm, large field of view, wide angle, high eye point
Optional Eyepiece WF10/20mm,WF15/15mm,WF20/10mm,WF25/9mm,WF30/8mm

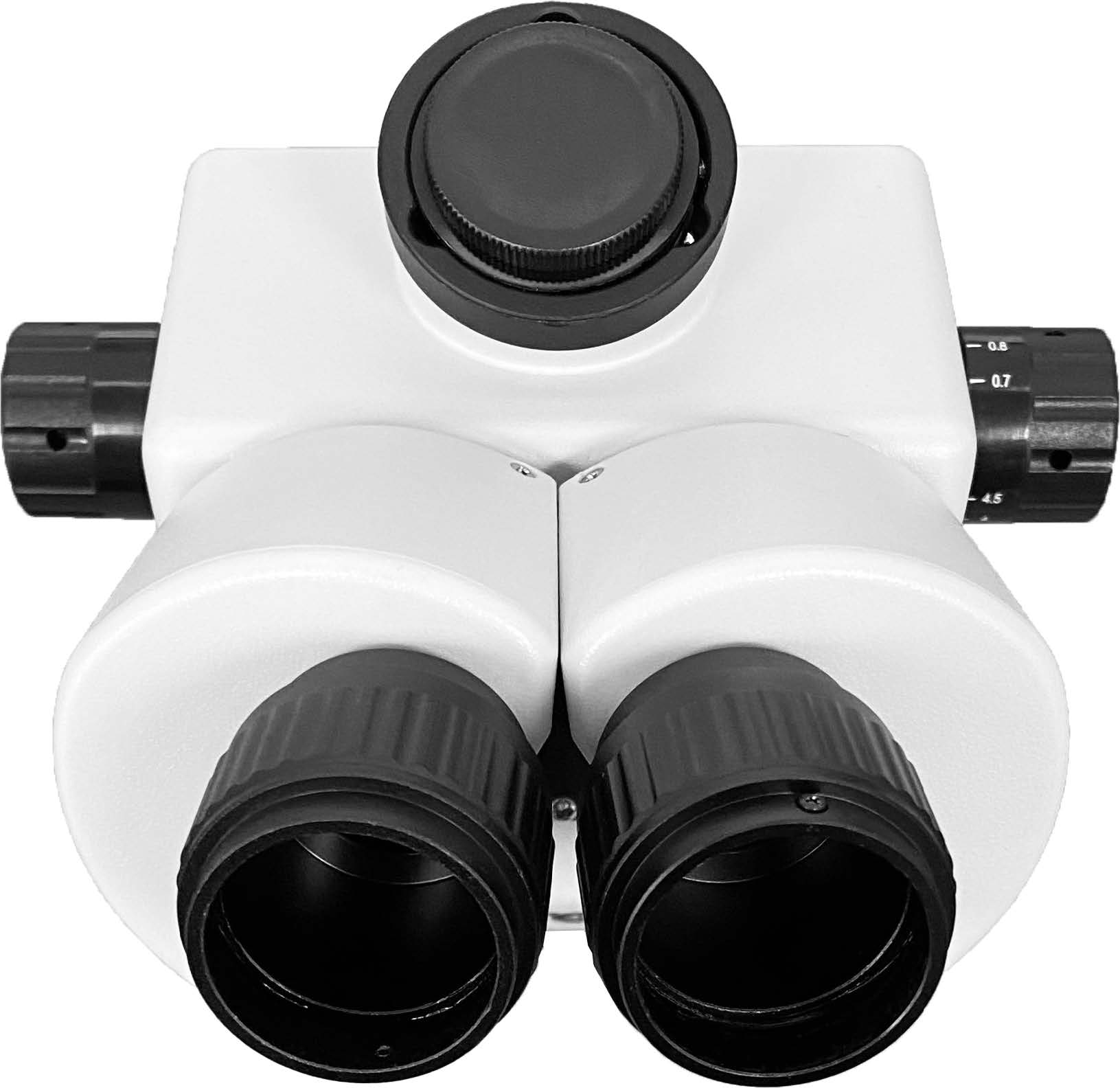

Observation head 45° tilt, 360° rotation, interpupillary distance 54-76mm; bilateral diopter adjustment (±5)

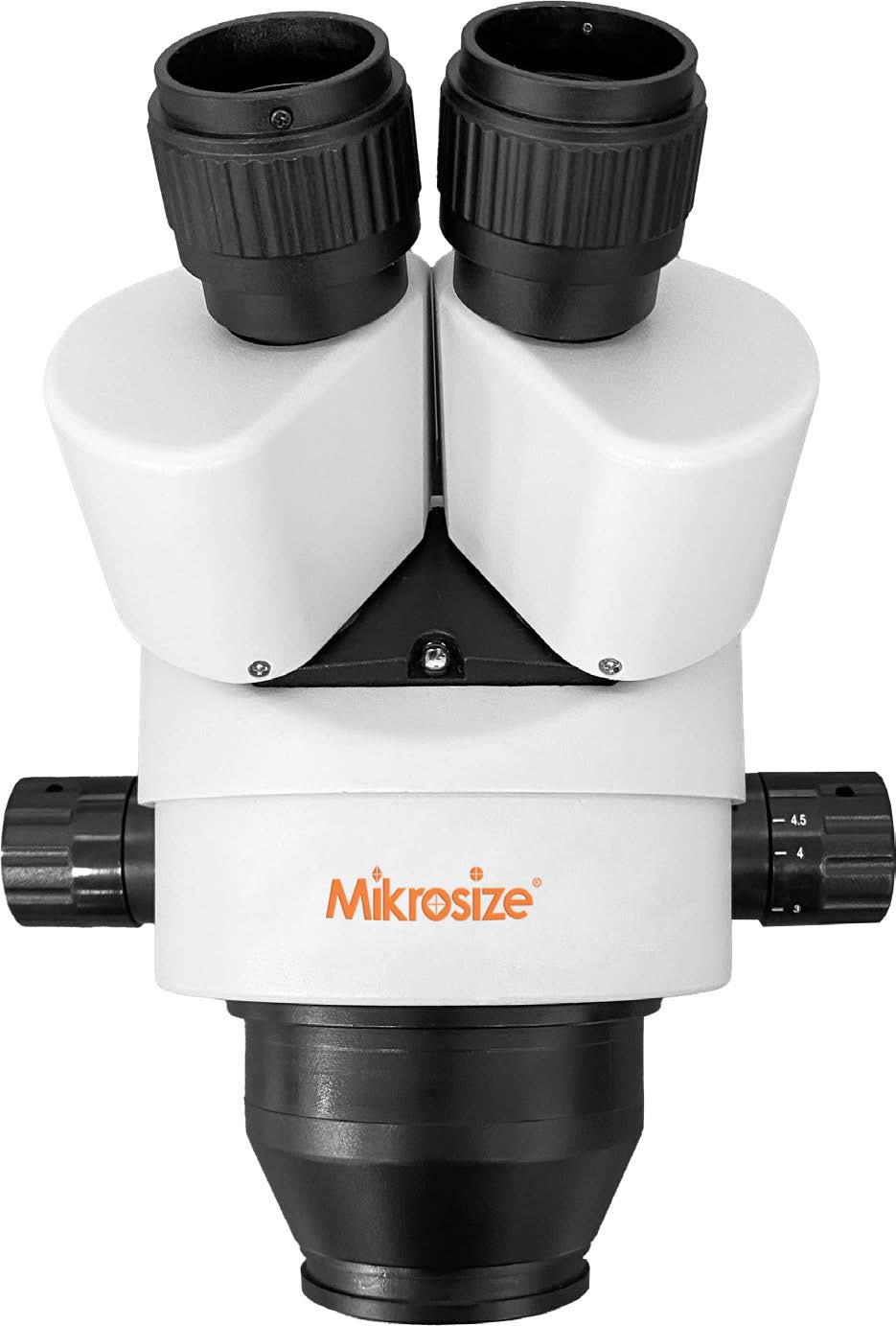

Objective 0.7X-4.5X continuous zoom, objective zoom ratio 6.4:1 ensures image plane parfocality
Auxiliary objective Optional 0.3X,0.7X,0.75X,0.5X,1.5X,2X
Focus bracket The focus bracket hand wheel is adjustable in tightness and has a lifting range of 50mm
Base Double-arm universal bracket, other bases can be optional
Net Weight 22kg
Illumination Optional various fluorescent and LED ring lights

Стандартная комплектация

Name Qty
Base 1
Column 1
Double rod bracket 1
Eyepiece 2
Variable magnification 1
Zoom bracket 1
Eyepiece cover 2

Опциональная комплектация

Eyepiece Standard configuration Auxiliary objective .5X Auxiliary objective 1.5X Auxiliary objective 2X
Working Distance 100mm Working Distance165mm Working Distance45mm Working Distance30mm

Magnification View Field Magnification View Field Magnification View Field Magnification ratio View Field
10X/20mm 7X 28.6mm 3.5X 57.1mm 10.5X 19mm 14X 14.3mm
45X 4.4mm 22.5X 8.9mm 67.5X 3mm 90X 2.2mm
15X/15mm 10.5X 21.1mm 5.25X 42.8mm 15.75X 14.3mm 21X 10.7mm
67.5X 3.3mm 33.75X 6.7mm 101.25X 2.2mm 135X 1.7mm
20X/10mm 14X 14.3mm 7X 28.6mm 21X 9.5mm 28X 7.1mm
90X 2.2mm 45X 4.4mm 135X 1.5mm 180X 1.1mm
25X/9mm 17.5X 12.9mm 8.85X 25.4mm 26.2X 8.6mm 35X 6.4mm
112.5X 2.0mm 56.3X 4.0mm 168.8X 1.3mm 225X 1.0mm
30X/8mm 21X 11.4mm 10.5X 22.9mm 31.5X 7.6mm 42X 5.7mm
135X 1.8mm 67.5X 3.6mm 202.5X 1.2mm 270X 0.9mm
