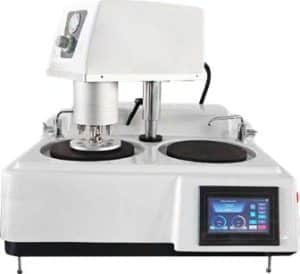

iPoli-2S-250A Auto Metallographic Grinding Polishing Machine(Single Force)
IPoli 1S 250A图（1）
IPoli 1S 250A图（3）
IPoli 1S 250A图（5）
IPoli 2S 250A图（4）
IPoli 2S 250A图（20
Особенности и применение
Product Feature：
- One machine with multiple functions can easily complete the pre grinding, rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples.
- Double disc single control，Variable speed regulation, four-stage constant speed, optimized speed control
- Easy to control the LCD screen display, simple operation
- Fine grinding and surface treatment of the work disc, to ensure that the surface of the sample is smooth
- The overall molding of high-strength glass steel material shell, durable.
Product Application：
- iPoli-2S-250A Double disc automatic grinding and polishing machine is a set of metallographic sample pre grinding, grinding and polishing and other functions in one, strong power, low noise, durable, simple operation, is the ideal grinding and polishing machine for enterprises and scientific research institution.
Технические характеристики
| Product Name | Auto Metallographic Grinding Polishing Machine |
| Model | iPoli-2S-250A |
| Polishing Disc Diameter | Φ250mm(Customized (230mm. (300mm) |
| Polishing Disc Rotation Speed | 50-1000 rpm(stepless) 400/600/800/1000 r/min(Four constant speed) |
| Grinding Disc Steering Position | Adjustable Clockwisely or Counter-clockwisely |
| Grinding Head Speed | 5-150 rpm(stepless) |
| Sample Holder Qty | 6 pcs (Customized 4 pcs) |
| Loading Range | 0-0.7Mpa Adjustable, the factory parameters set within 0.2Mpa |
| Sample Preparation Time | 0-3000S |
| Polishing Sample Diameter | Standard $30mm(Customized (22-$45mm) |
| Voltage Supply | AC220V 50Hz |
| Power Supply | 900W |
| Machine Dimension | 755*815*6900mm |
| Net Weight | 89KG |
| Gross Weight | 113KG |
Стандартная комплектация
| Name | Qty | |
| Auto Metallographic Grinding Polishing Machine | 1set |
|
| Polishing Cloth Φ250mm | 2pc |
|
| Abrasive Paper Φ250mm | 8pc |
|
| Polishing Disc Φ250mm | iPoli-2S:2 pcs |
|
| Aluminum Buckle Ring Φ250mm | iPoli-2S:2 pcs |
|
| Outlet Pipe | 1pc |
|
| Inlet Pipe | 1pc |
|
| Pressure Pipe Φ8 | 1pc |
|
| Oil-water Separator | 1pc |
|
| Magnetic Disc | iPoli-2S:2 pcs |
|
| Anti-stick disc | iPoli-2S:3 pcs |
|
| Adjusting Feet | 4 pc |
|
| Power Cord | 1 pc |
|
| Anti-dust Cover | iPoli-2S:2 pcs |
|
| Water Retaining Ring | iPoli-2S:2 pcs |
|
| Instruction Manual | 1 copy | |
| Product Certificate | 1 copy | |
| Warranty Card | 1 copy |
