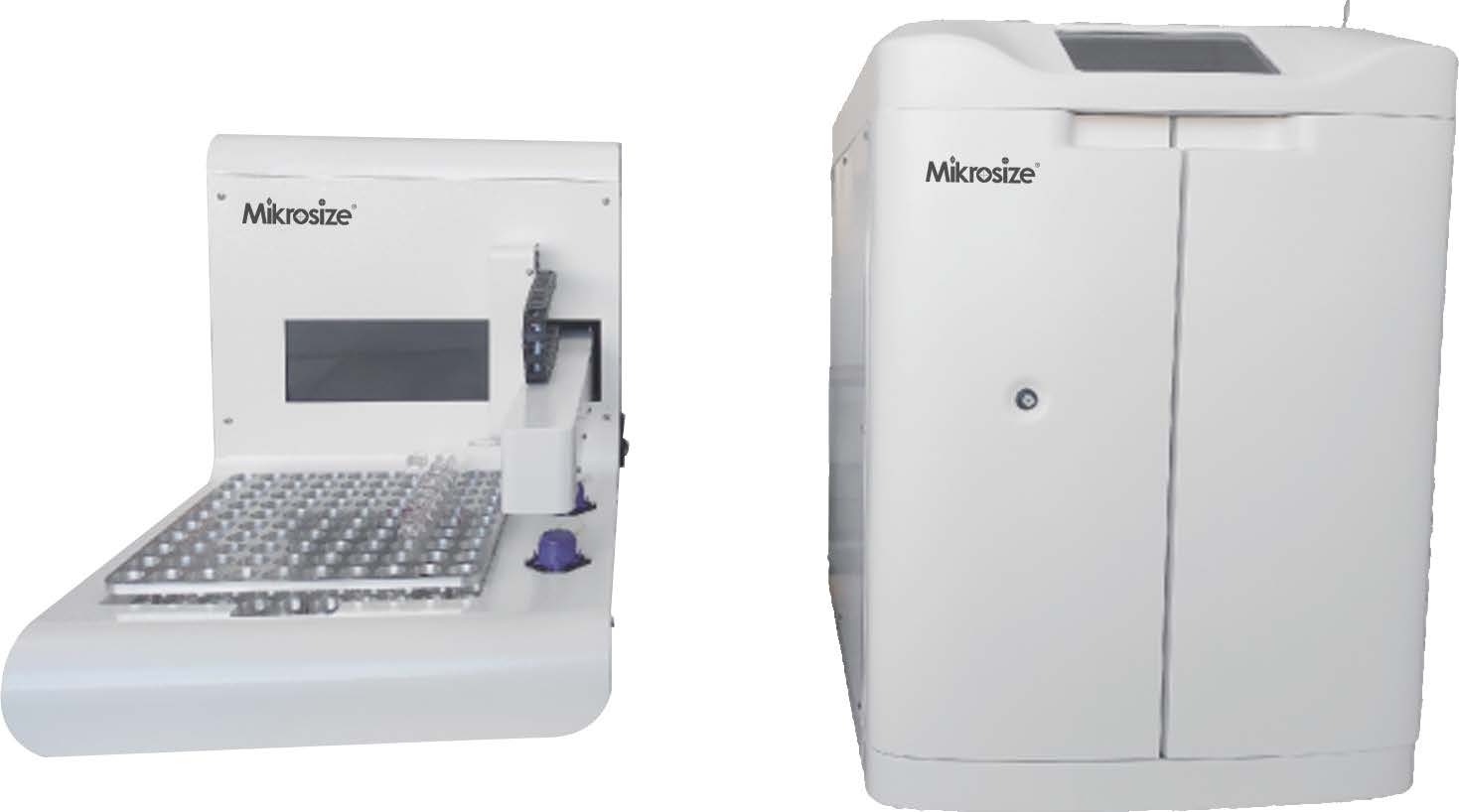

iIon-1200D Series Ion Chromatograph

Touch Screen System

7.0-inch touch screen: ARM series, Windows 7 operating platform, ensuring reliable and stable operation.
Real-time monitoring of instrument status and modification of instrument parameters.
Real-time connection with PC control software, achieving synchronization of all statuses.
Instant chromatogram display with operable functions, enabling more intuitive analysis.

PC Data Software System

Equipped with remote instrument control, allowing control of the instrument via PC and synchronization with the touch screen.
Adopts a 24-bit A/D acquisition chip for high-precision data signal collection and processing.

Технические характеристики

All-PEEK Pump Head	pressure range 0–40 MPa
Flow Rate Setting Range	0.001–10.000 mL/min
Flow Rate Setting Error	≤0.1% (eluent: water, flow rate 1 mL/min, back pres- sure 6 MPa)
Flow Rate Stability Error	≤0.1% (eluent: water, flow rate 1 mL/min, back pres- sure 6 MPa)
Current Range	0–300 mA
Current Setting Step	0.1 mA
Temperature Setting Error	≤0.1 °C
Temperature Control Stability Error	≤0.1 °C
Temperature Display Resolution	0.01 °C
Baseline Noise	≤0.5%FS
Baseline Drift	≤±1.0%FS
Lowest Detection Limit (μg/g)	Cl⁻ ≤0.00008; NO₃⁻ ≤0.005; Na⁺ ≤0.0005; Ca²⁺ ≤0.010
Linear Range	≥10²
Linear Correlation Coefficient	≥0.999
Repeatability Error of Retention Time	NO₃⁻, SO₄²⁻, Na⁺ and Ca²⁺ ≤1.0%
Temperature Setting Error	≤0.01℃
Temperature Control Stability Error	≤0.01℃
Temperature Accuracy	0.001℃

Name	Qty	Model & Specification
Mainframe Machine	1 set	iIon-1200D
Low-Flow Pulsation Dual-Plunger Series Pump	1 pcs	YK-A11
Conductivity Detector	1 pcs	YKD-2106
Anion Analytical Column (CO₃²⁻)	1 pcs	Domestic
Anion Guard Column (CO₃²⁻)	1 pcs	Domestic
Anion Suppressor	1 pcs	YKY-1
Built-in Column Oven	1 pcs	YK-021-6
Ultrasonic Device	pcs	SHZ-D(Optional)
High-Pressure Six-Port Valve	1 pcs	C52-07B
Workstation	1 pcs	SP4000
Liquid Autosampler	set	YAS-180(Optional)
Computer & Printer	set	Branded(Self-supplied or procured by buyer)
Spare Parts	1 batch	YK000
