iBrin-3000SA Image Processing Semi-auto Brinell Hardness Tester
IBrin 3000SA Intelligent Semi Auto Brinell Hardness Tester图（1）
IBrin 3000SA Intelligent Semi Auto Brinell Hardness Tester图（5）
IBrin 3000SA Intelligent Semi Auto Brinell Hardness Tester图（6）
IBrin 3000SA Intelligent Semi Auto Brinell Hardness Tester图（2）
IBrin 3000SA Intelligent Semi Auto Brinell Hardness Tester图（3）
IBrin 3000SA Intelligent Semi Auto Brinell Hardness Tester图（4）
Видеодемонстрация
Особенности и применение
Product Feature：
- Closed loop loading, ready to use upon startup.
- 10-inch touch screen, easy to use and operate.
- CMOS directly captures indentation images.

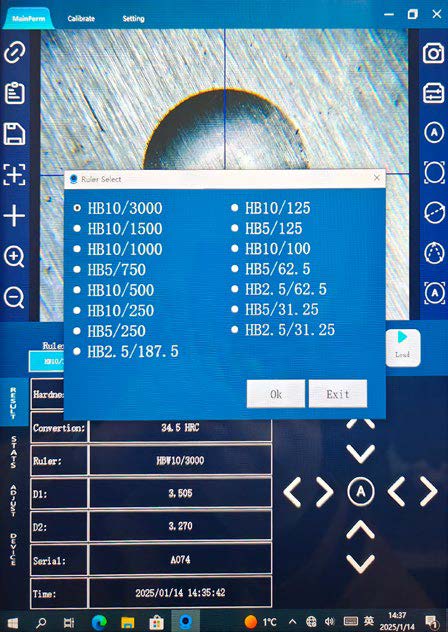

- 10-level test force with 15 brinell hardness test scales for flexible selection.
- Automatic turret simultaneously installs indenter and objective lens, both automatically engaged in testing.
- Automatically switches objective lens and indenter based on selected scale.
- Pre-sets test force holding time and adjusts indentation measurement light intensity.
- Real-time display of loading time.

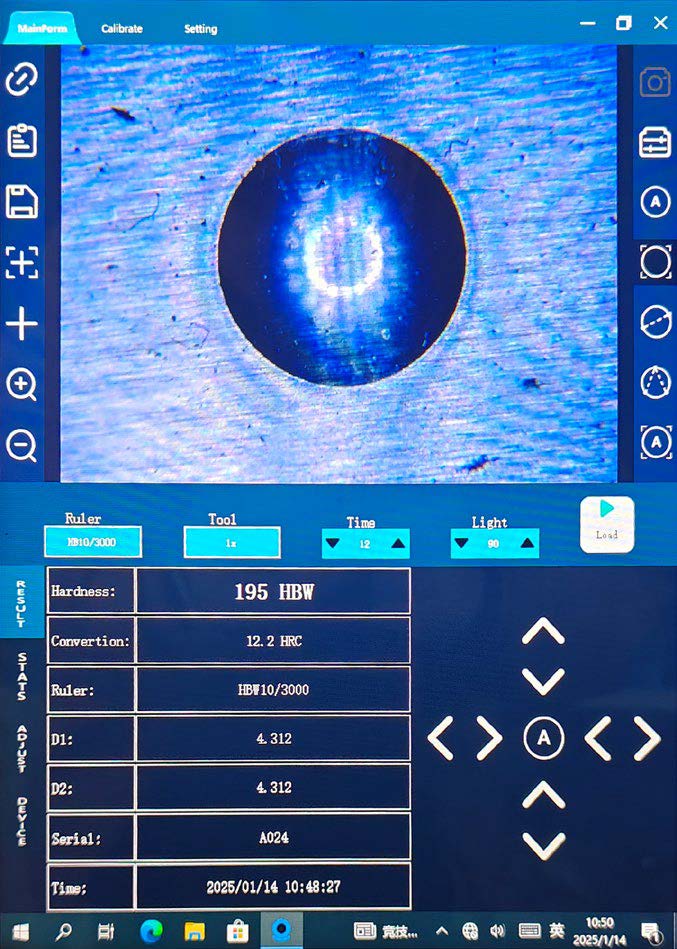

- Displays indentation length, hardness value, measurement count, etc.

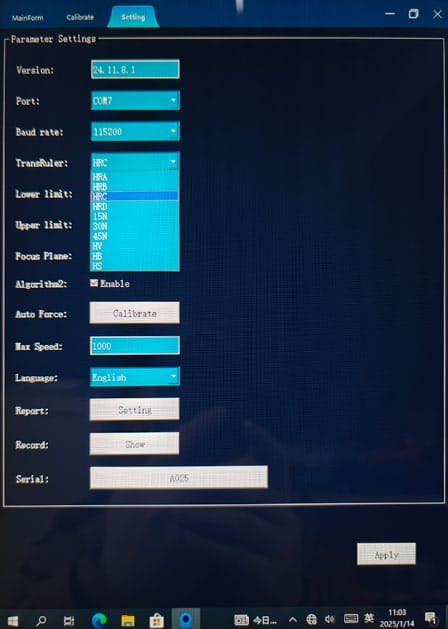

- Test results convertible between common hardness scales.
- Hardness test results printable.
- Multiple communication interfaces: USB, RS232, wlan,RJ45LAN.
Product Application：
- Detects Raw Material Hardness During Machining To Select Suitable Processes And Tools.
Inspects Hardness Of Mechanical Parts (Gears, Bearings,Bolts, Etc.) To Ensure Compliance With Design And Performance Requirements.
Технические характеристики
| Name | Image Processing Brinell Hardness Tester | |
| Model | iBrin-3000SA2 | iBrin-3000SA3 |
| Measurement Range | 8~650HBW | |
| Test Force | 62.5kgf、100kgf、125kgf、187.5kgf、250kgf、500kgf、750kgf、1000kgf、1500kgf、3000kgf | |
| 612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、8907N、14710N、29420N | ||
| Test Scales |
HBW2.5/31.25、HBW2.5/62.5、HBW2.5/187.5、 HBW5/31.25、HBW5/62.5、HBW5/125、HBW5/250、HBW5/750、 HBW10/100、HBW10/125、HBW10/250、HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000 | |
| Conversion Scales | HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T | |
| Indenter Specifications | Φ2.5mm、Φ5mm、Φ10mm | |
| Camera Lens | 20X | |
| Objective Lens | 1X | 1X、2X |
| Maximum Allowed Specimen Height | 280mm | |
| Distance from Indenter Center to Machine Wall | 150mm | |
| Holding Time Range | 0~99s | |
| Hardness Value Reading | Digital touchscreen LCD | |
| Indenter/Objective Switch | Automatic | |
| Communication Interfaces | USB、RJ45LAN、WLAN、RS232 | |
| Power Supply | AC220V，50Hz | |
| Dimensions | 230*600*920mm | |
| Net Weight | 130kg | |
Стандартная комплектация
| Name | Qty |
| Machine Mainframe | 1 |
| 230mm Test Anvil | 1 |
| 78mm Test Anvil | 1 |
| 60×90mm V-block Test Anvil | 1 |
| Φ2.5mm Brinell Indenter | 1 |
| Φ5mm Brinell Indenter | 1 |
| Φ10mm Brinell Indenter | 1 |
| Φ2.5/5/10mm Tungsten Carbide Balls | each 1 |
| (150~250) HBW10/3000 Hardness Block (150~250) HBW10/3000 | 1 |
| (80~110) HBW10/1000 Hardness Block (80~110) HBW10/1000 | 1 |
| Objective Lens | 1 |
| 2X Objective Lens | 1 |
| Software USB | 2 |
| Security Dongle | 1 |
| Dust Cover | 1 |
| Hex Key | 1 |
| Power Cord | 1 |
| Fuse | 1 |
| Product Certificate | 1 |
| User Manual | 1 |
Опциональная комплектация
| Tungsten carbide balls |
| Various work tables |
| Hardness test blocks |
| Internal machine parts |
| Various indenters |
