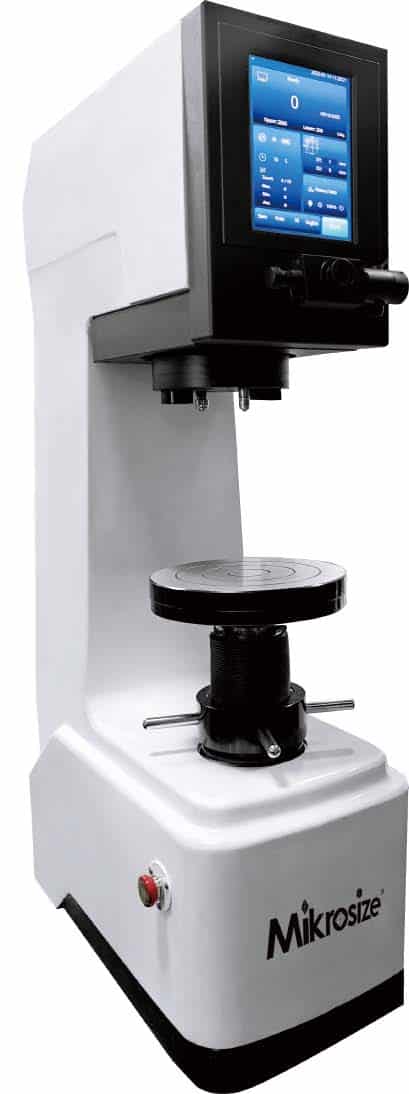

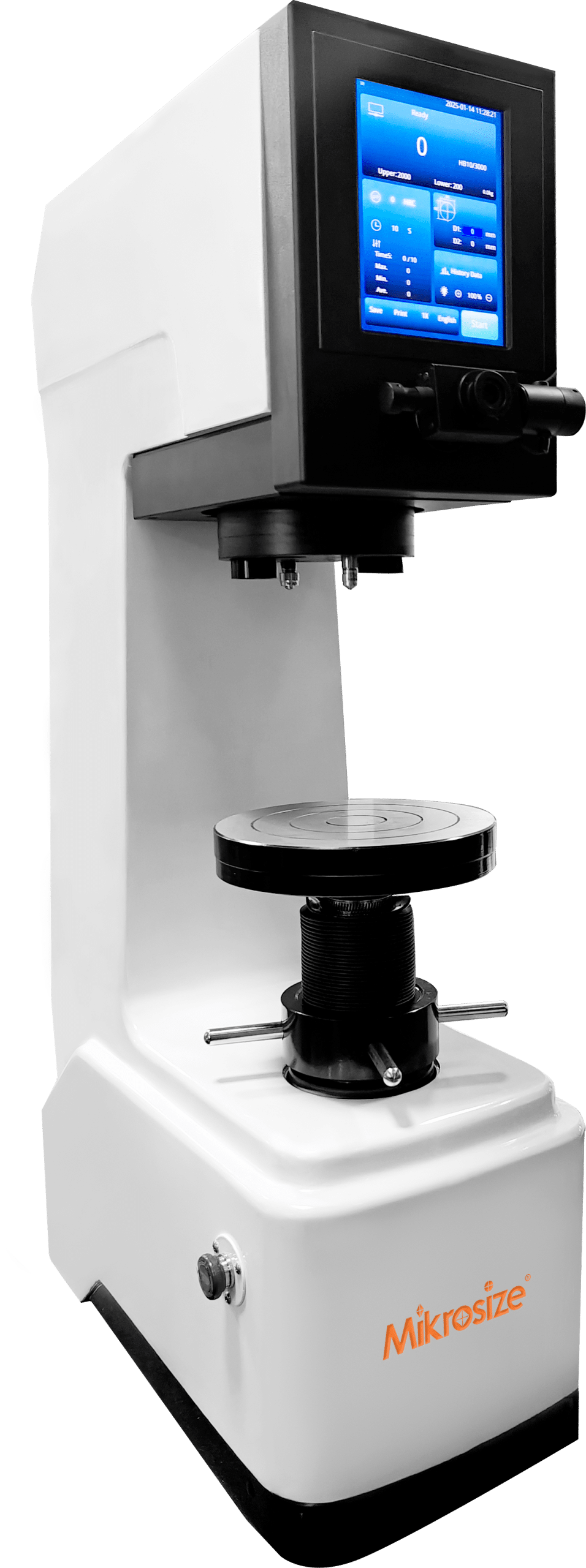

iBrin-3000CLD Digital Display Brinell Hardness Tester

Видеодемонстрация

Equipped with 11 test forces and 15 brinell hardness test scales for flexible selection.

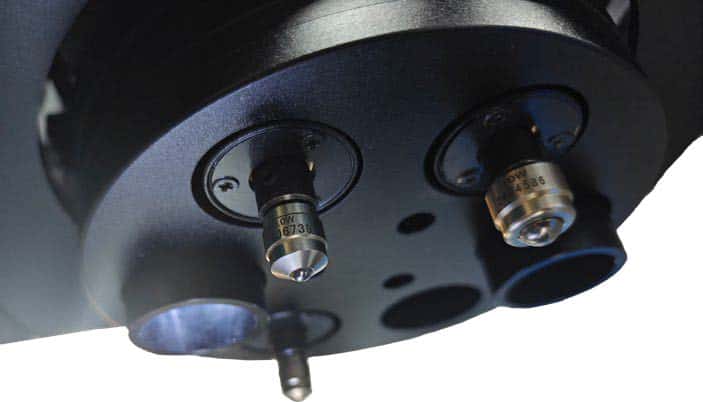

3 types of indenters pre-installed simultaneously.
2 sets of objectives, both capable of measuring indentation diameter.
Automatic switching of objectives and indenters based on selected scale.
Pre-set dwell time and adjustable indentation measurement light intensity.
Real-time display of loading time.

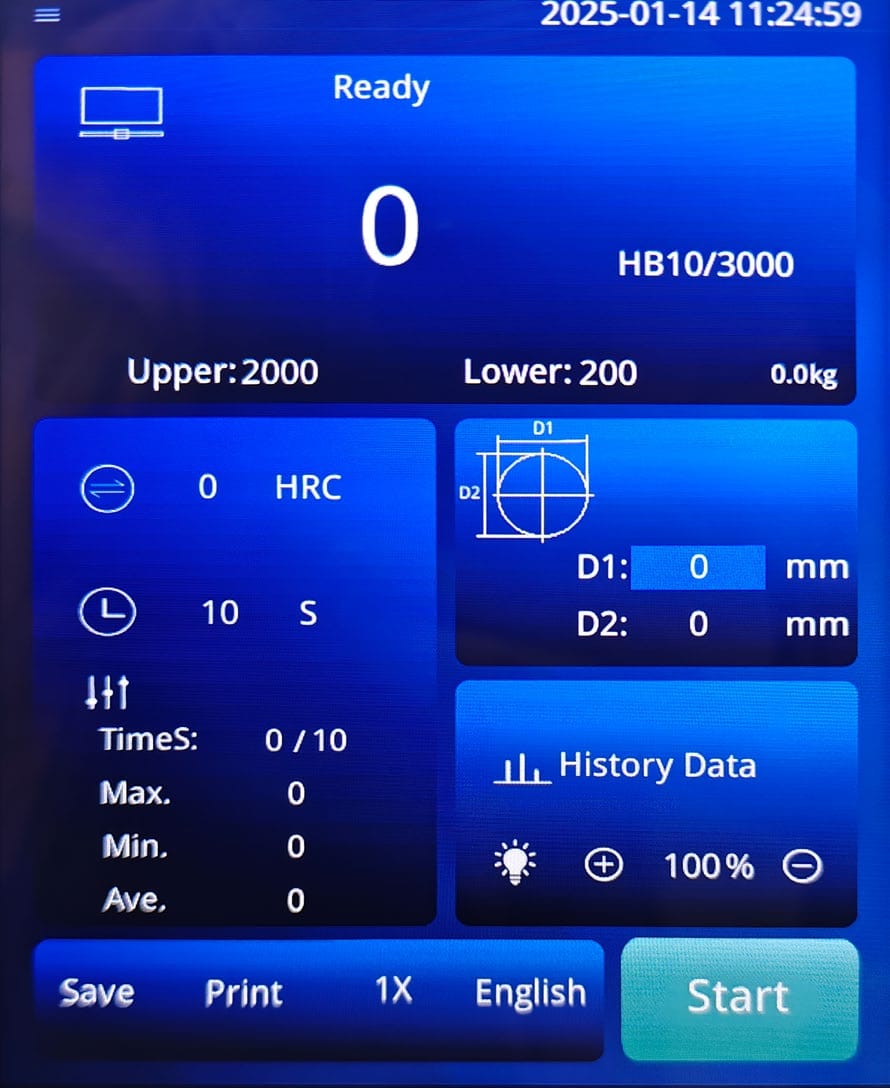

Displays indentation size, hardness value, test count, etc.
Converts between common hardness scales.
Printable test results.

Inspects raw material hardness during machining for optimal tool/process selection.
Verifies hardness of mechanical components (gears, bearings, bolts) for compliance.
Ensures safety-critical hardness of power plant equipment(boilers, turbines, generators).
Evaluates forging quality and process effectiveness.

Name	Digital Automatic Turret Brinell Hardness Tester
Model	iBrin-3000CLD
Test Range	8~650HBW
Test Force(N/kgf)	31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf(306.45N , 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N)

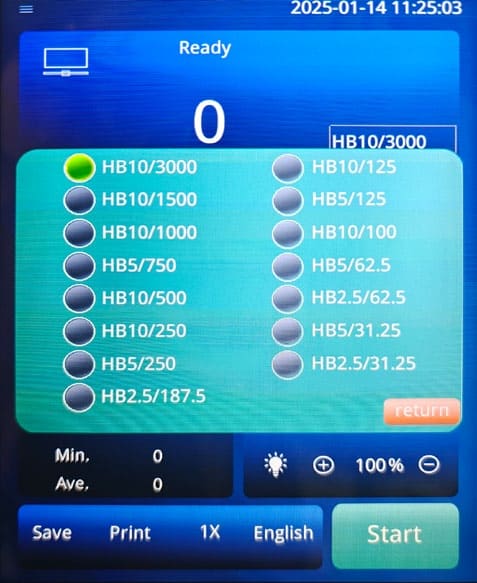

Test Scales	HBW2.5/31.25、HBW2.5/62.5、HBW2.5/187.5、HBW5/31.25、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/125、HBW10/250、HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000
Loading Method	Automatic Loading, Dwell, Unloading
Main Test Force Loading Time(s)	2~8s
Dwelling Times	0~99s Stepless Setting
Test Height(mm)	270mm
Test Throat(mm)	190mm
Indenter/Objective Transformation	Automatic Turret

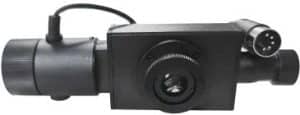

Indentation Measurement	Digital Reading Microscope
Eyepiece	20X
Objective	1X, 2X
Display	8-inch Industrial Touchscreen
Indenter Specifications	Φ2.5, Φ5, Φ10 Installed in the Same Turret
Data Output	Built-in Printer, RS232 Interface
Light Source	LED
Light Adjustment	Stepless Brightness Control
Optical Path Switching	Automatic
Machine Dimension(mm)	1000595350mm
Net Weight(kg)	150kg
Power Supply	AC220V, 50Hz
