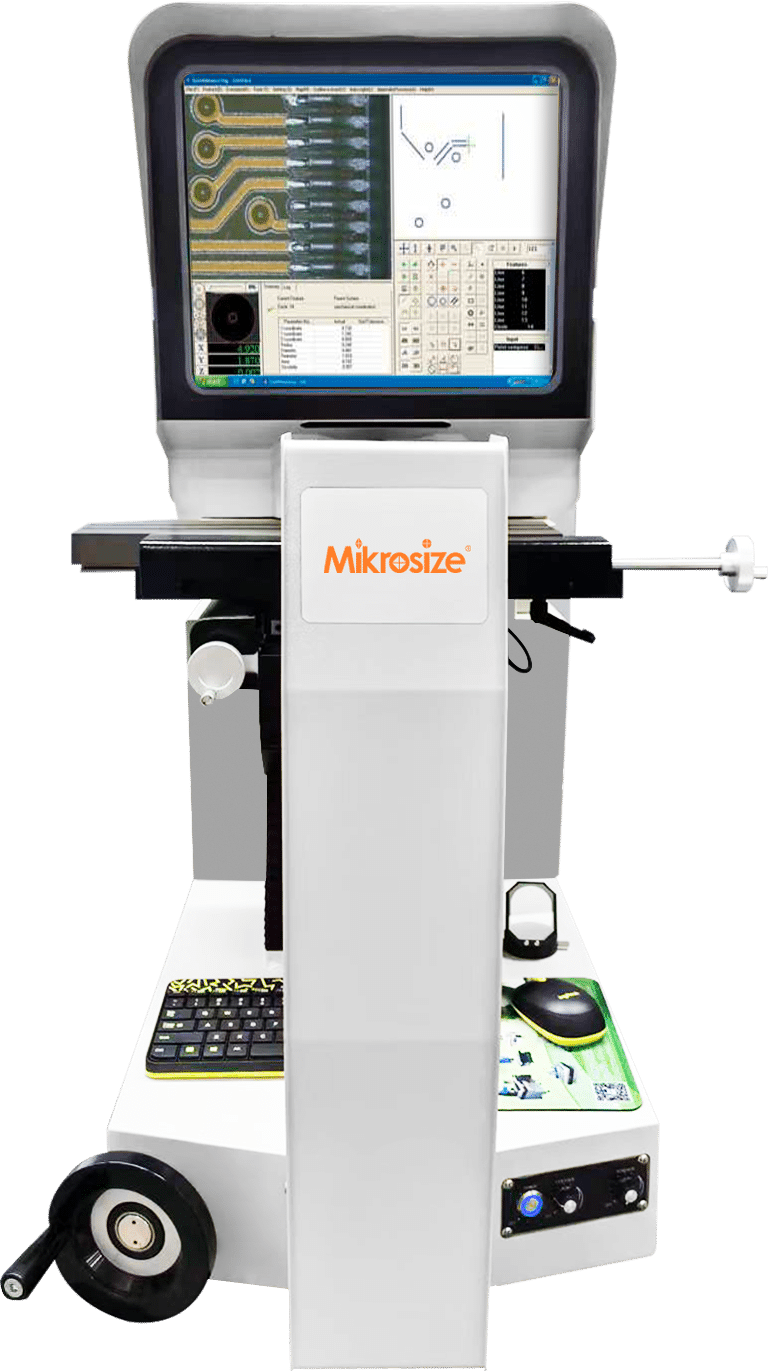

HVP-3015 Horizontal Video Projector
HVP 3015 （1）

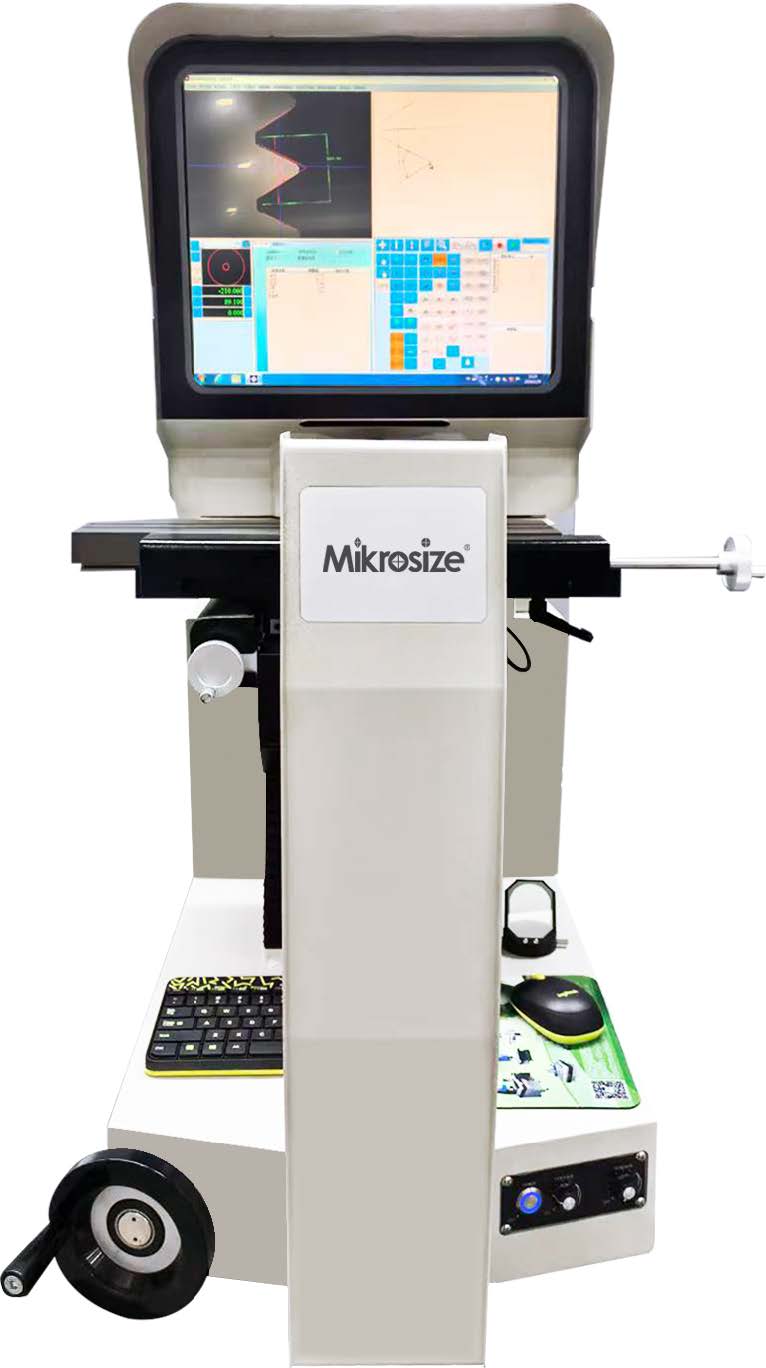

HVP 3015 2）

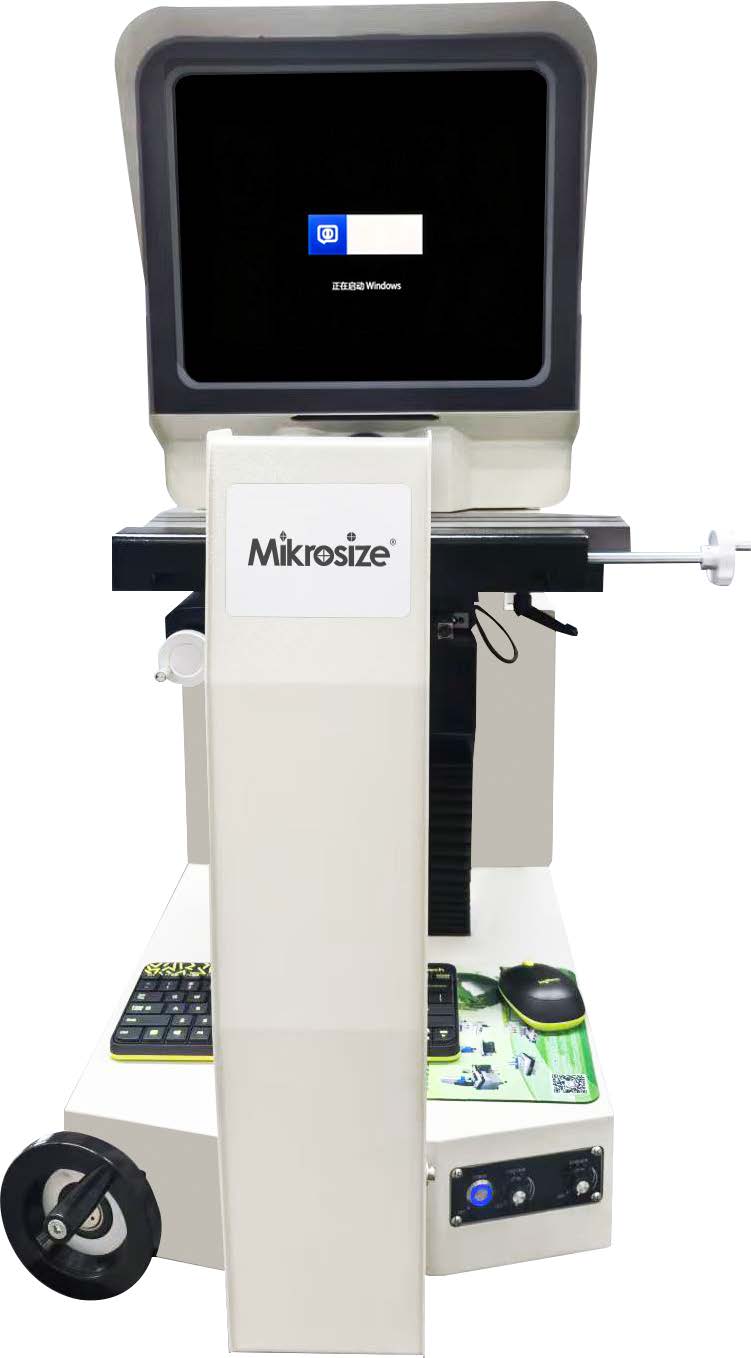

HVP 3015 3）
HVP 3015 4）
HVP 3015 5）

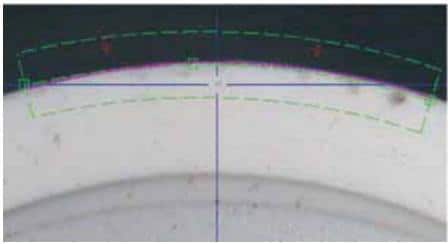

HVP 3015 6）
Особенности и применение
Product Feature：
- Solid framework,large lcd touch screen and advanced software.
- High quality optics for crisp and clear images.
- Excellent repeatibilty.
- Adjustable led illumination.
- High resolution industrial ccd camera.
- Lens changeable within the range of 20-120x magnification.
- Easy to operate user interface.
- Accuracy 0.005mm.
- Advanced functionallity such as quick measuring of correlative.
- Parameters of gear tapers.
- Extended function of priniting,saving and exporting data.
- Excel or txt report output,dxf input or output.
Product Application：
- Video measuring machines,measuring microscopes and other vision measuring systems,etc.
Технические характеристики
| Technical Specification | HMV-3015 | HMV-3020 |
| (XY/Z)Measuring range(mm) | 300x150x150 | 300x125×200 |
| Machine dimension(mm) | 650x800x1600 | |
| Operation mode | Manual | |
| Magnification | 20-120X | |
| Screen dimension | 19"monitor(HV)or 19"touch-type LED monitor (HTV) | |
| Lens work range | 95mm | |
| X,Y-axis resolution | 1um | |
| Accuracy | ≤(3+L/200)um | |
| Repeatability | 5um | |
| Measuring software | Quick Measuring 2.0 | |
| Color CCD Camera | 430,000pixel | |
| Suitable environment | Workshop and Metrology room | |
| Stage load capacity | 15Kg | |
Стандартная комплектация
| Name | Qty | |
| Measuring Software | 1 set |
|
| Color CCD Camera (MC1 (430,000 Pixels)) | 1 pc |
|
| Zoom Lens General Zoom Lens (0.7~4.5x) | 1 pc |
|
| Vision Capture Card 7130 (VC1) | 1 pc |
|
| Basic Adjustable LED Light Source | 1 pc |
|
Опциональная комплектация
| Accessory Category | Model/Specification |
| Camera Upgrade | MC2 (480TVL, 0.1Lux/F1.2) |
| MC3 (480TVL, S/N Ratio 57dB) | |
| Zoom Lens Upgrade | Navitar Click Zoom Lens (0.7~4.5x) |
| Coaxial Zoom Lens (0.7~4.5x) | |
| Motorized Zoom Lens (0.7~4.5x) | |
| Lens Accessories | 0.5x Adjustable Objective |
| 2x Adjustable Objective | |
| 0.5x CCD Adapter | |
| 2x CCD Adapter | |
| Ultrazoom Objective (5x/10x/20x/50x) | |
| Light Source Upgrade | 4-Division LED Light Source |
| 40-Division LED Light Source | |
| Point Fiber Light Source | |
| Mechanical Accessory | Working Cupboard ST04 |
| Precision Accessory | Renishaw MCP Touch Probe (K1/K2, 1-2mm) |
