Hardness testing indenter & Other spare parts

资源 35 scaled

资源 36 scaled

资源 37 scaled

资源 38 scaled

资源 39 scaled

资源 40 scaled

资源 26 scaled

资源 34 scaled

资源 35 scaled

资源 36 scaled

资源 37 scaled

资源 38 scaled

资源 39 scaled

资源 40 scaled

资源 26 scaled

资源 34 scaled

Технические характеристики

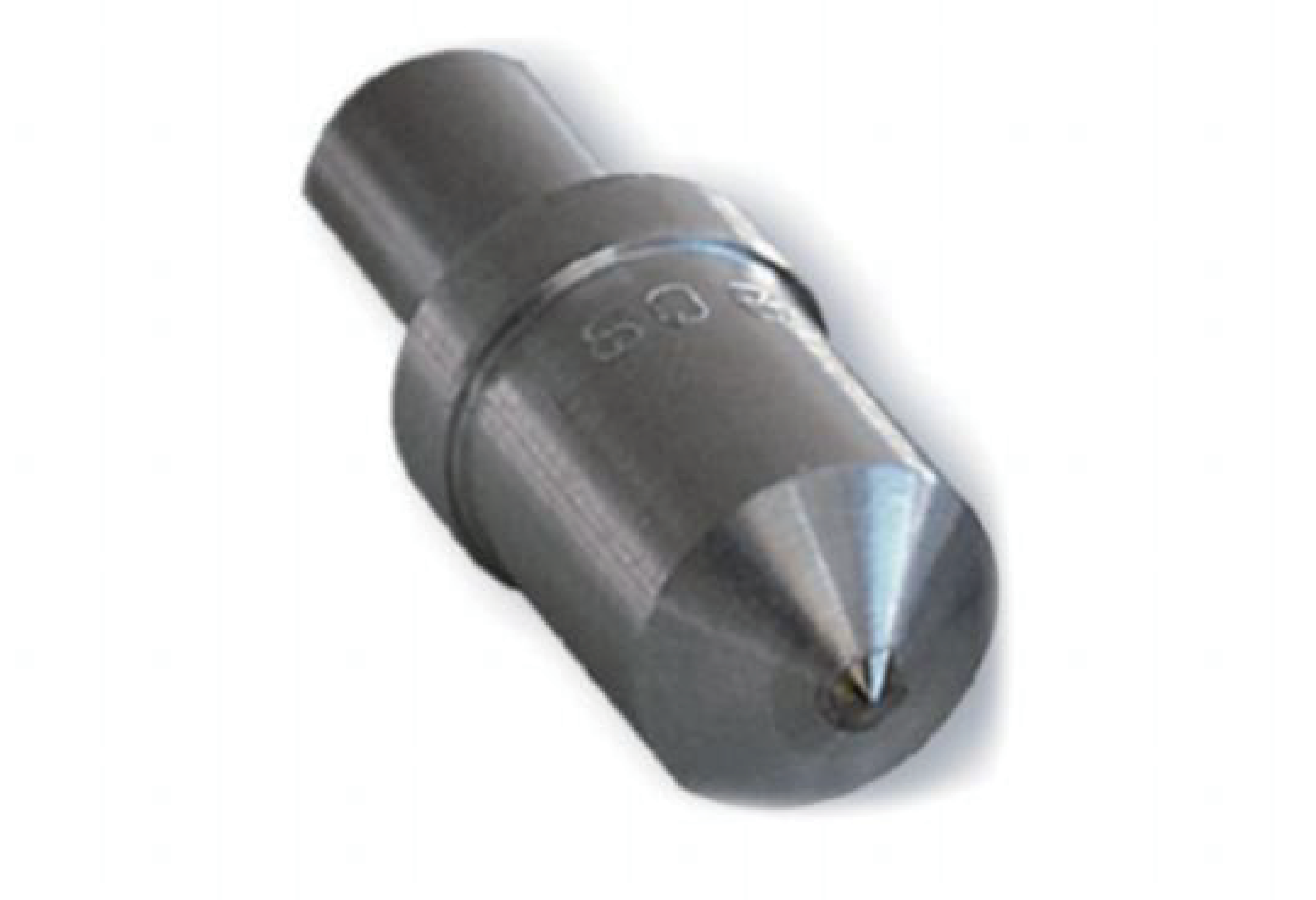

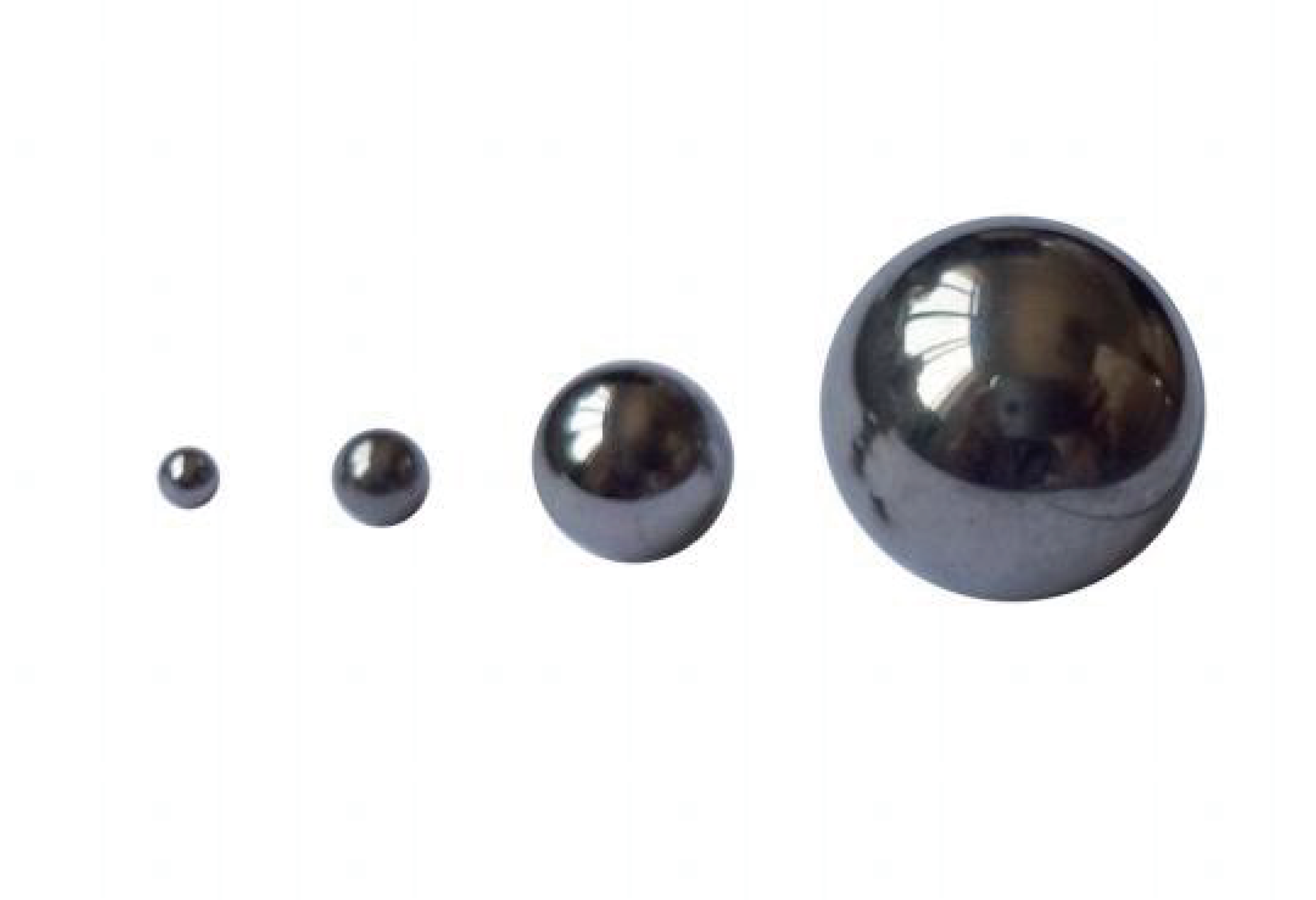

	1mm Brinell Steel Ball Code: BSB-1 Compatible machine: Brinell Hardness, Low Load Brinell Hardness Tester		Vickers Diamond Indentor Code: VDI 136° Diamond Indentor[Micro Vickers] 136° Diamond Indentor[Macro Vickers] Application: Micro/Macro Vickers Hardness Tester

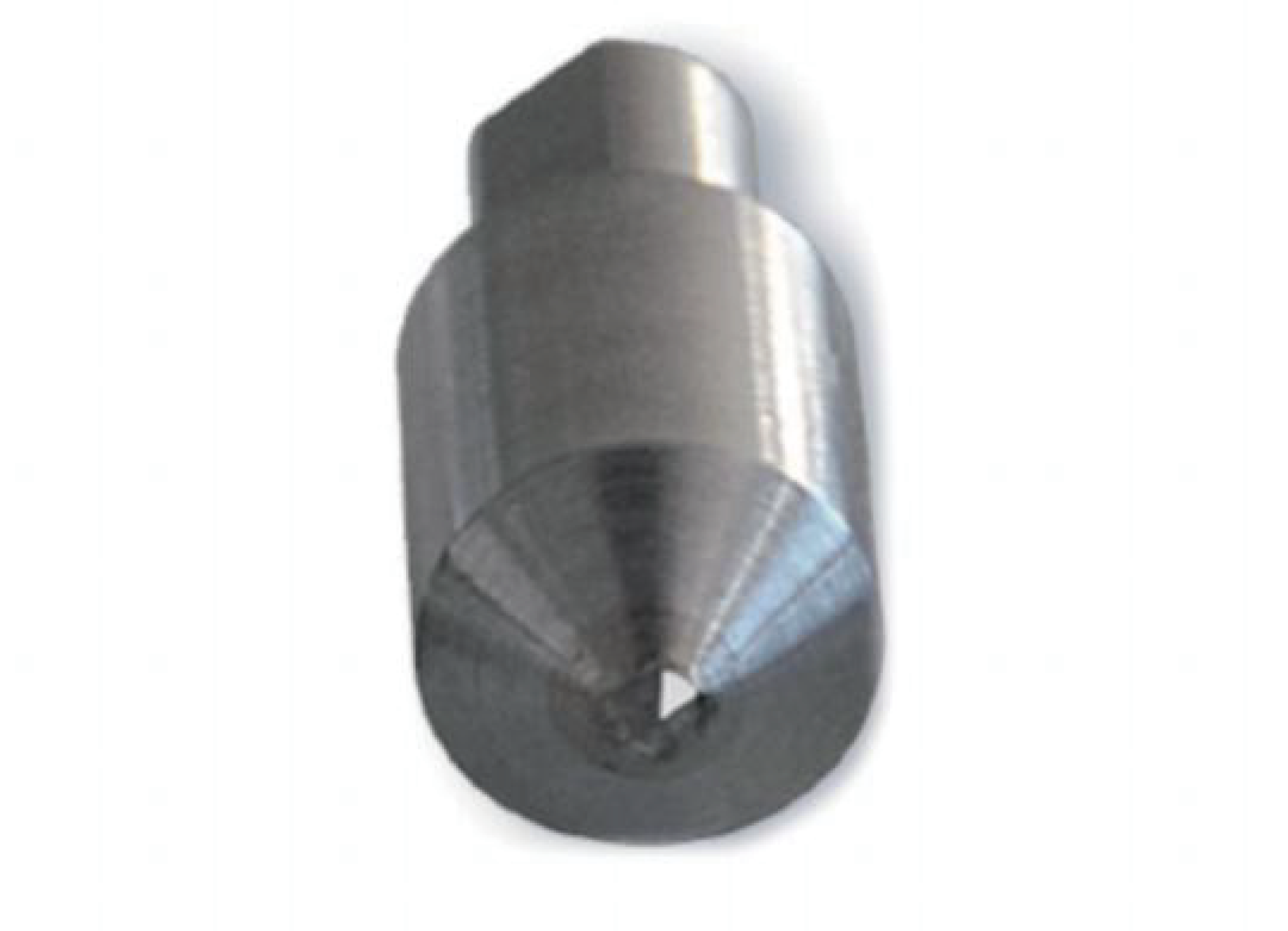

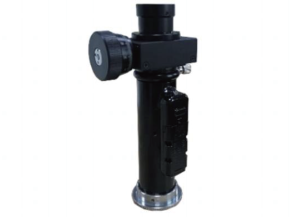

	Knoop Diamond Indentor Code: KDI 172°30'&136° Diamond Indentor Application: Knoop Hardness Tester		BRM-3 Reading microscope (with light source) Code: BRM-3 Specially used to measure the indentation size of Brinell hardness. Total magnification: 20X Eyepiece micrometer range: 0-6mm Maximum field of view of eyepiece: 9mm Effective measuring range: 0-6mm Minimum graduation value of eyepiece micrometer drum: 0.01mm Measurement accuracy: ±0.01mm Light source: LED green light Supply voltage: 4.5V Compatible machine: Brinell Hardness,Low Load Brinell Hardness Tester

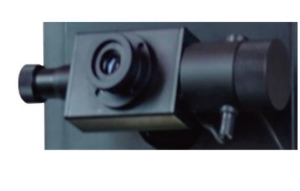

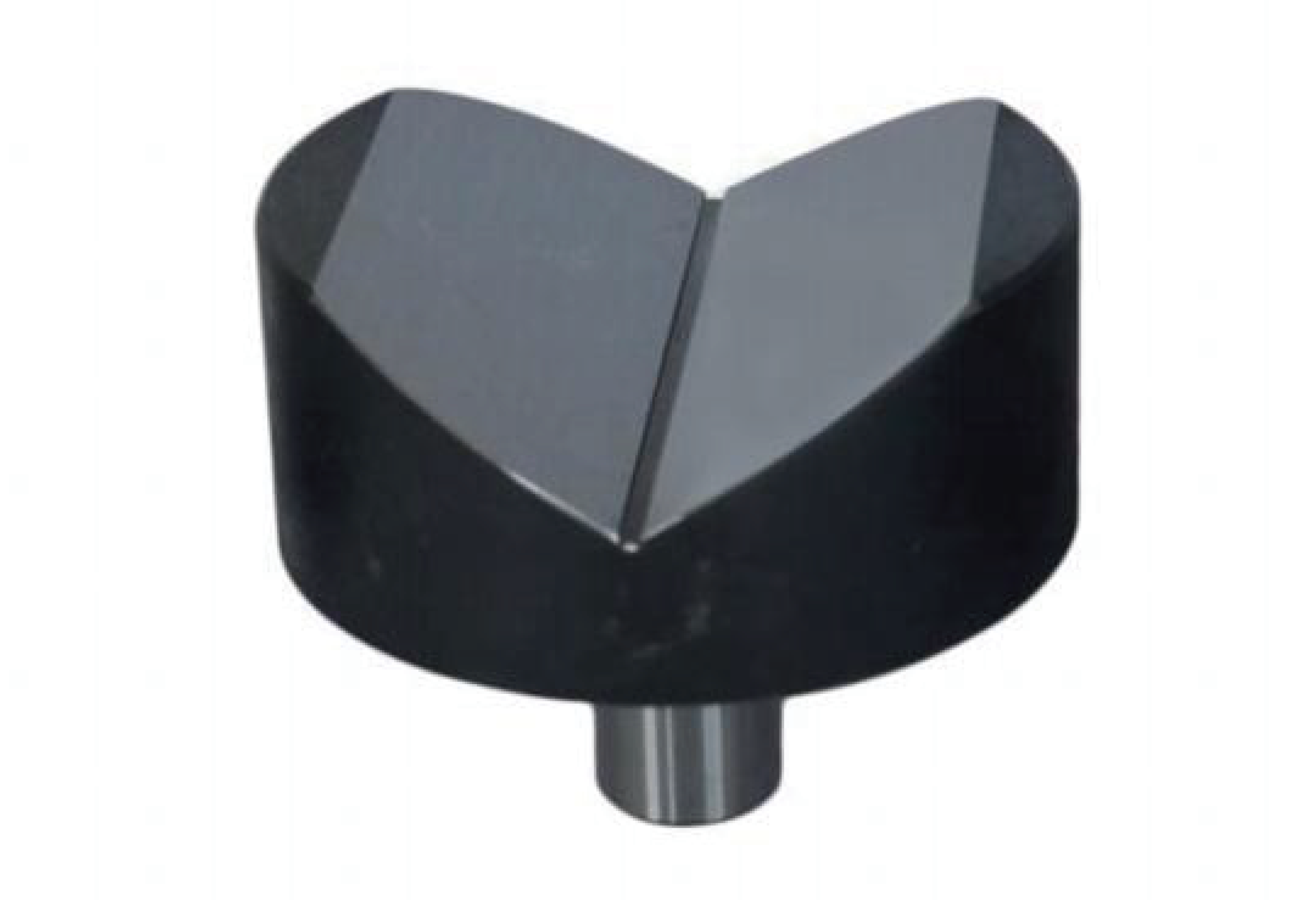

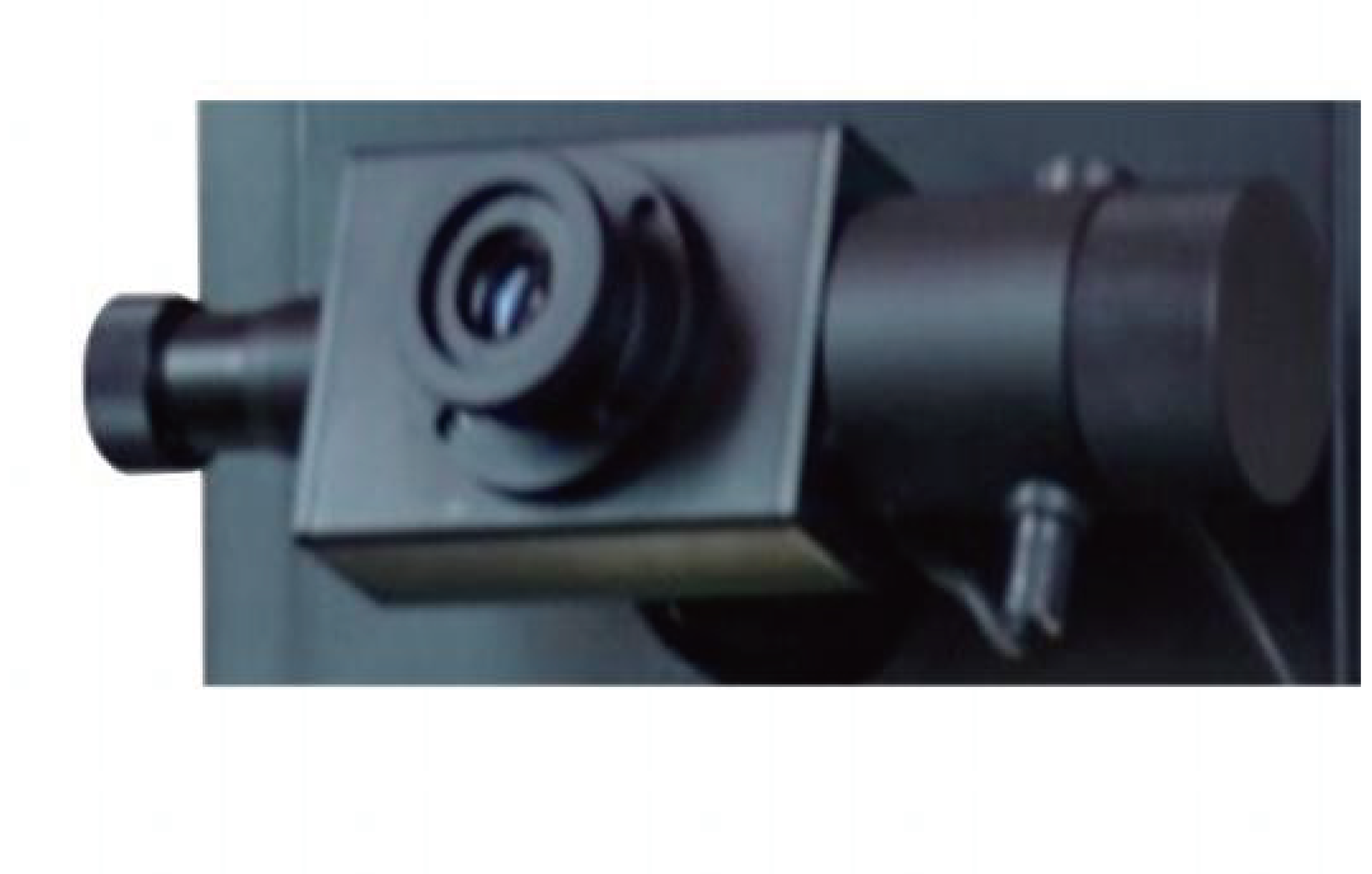

	20x Brinell Digital Eyepiece Code: BDE-20 Magnification: 20x Compatible machine: Brinell Hardness, Low Load Brinell Hardness Tester		Ø60mm Brinell V-Shape Anvil Code: BVA-60 Size: 060mm Compatible machine: Brinell Hardness, Low Load Brinell Hardness Tester

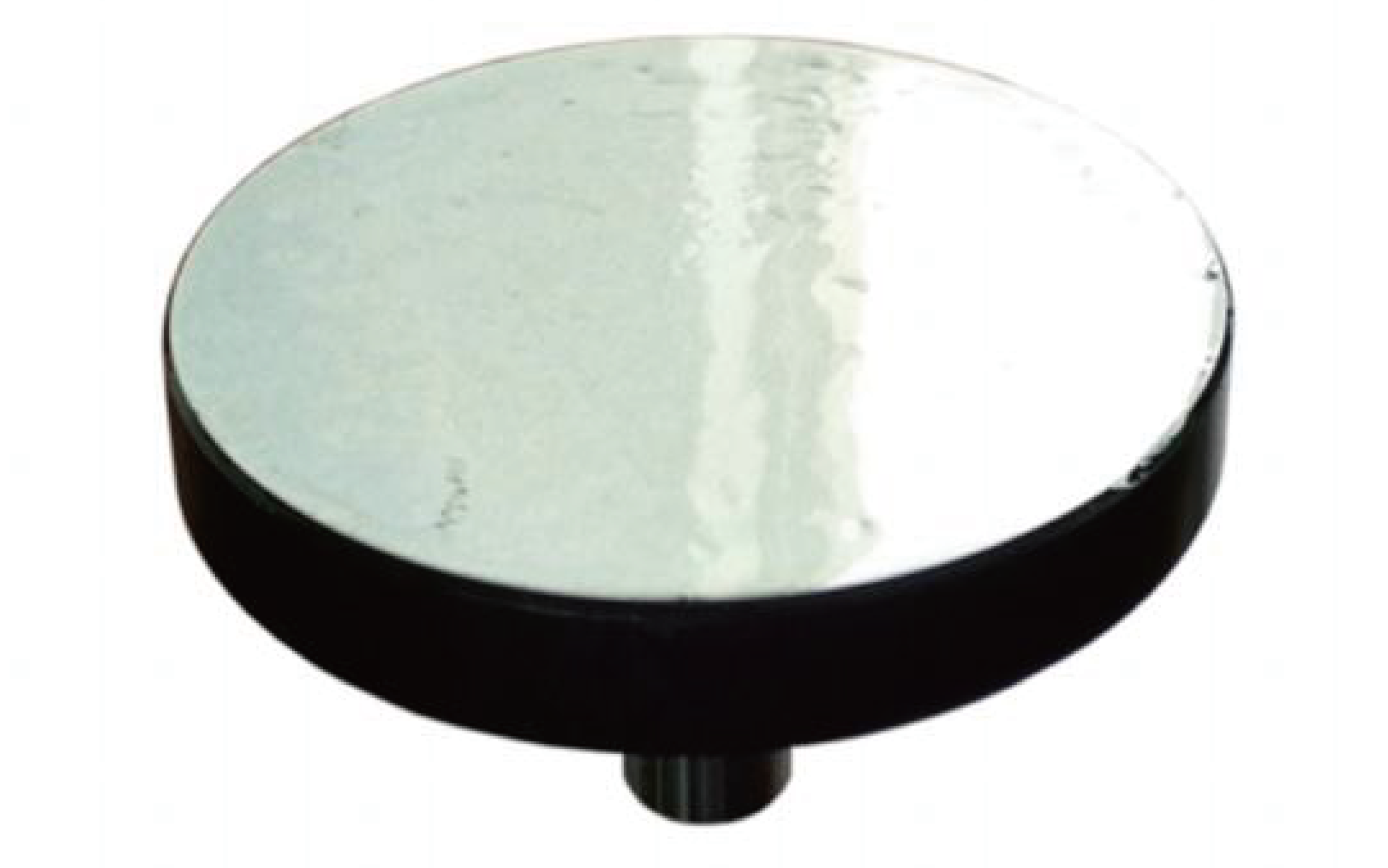

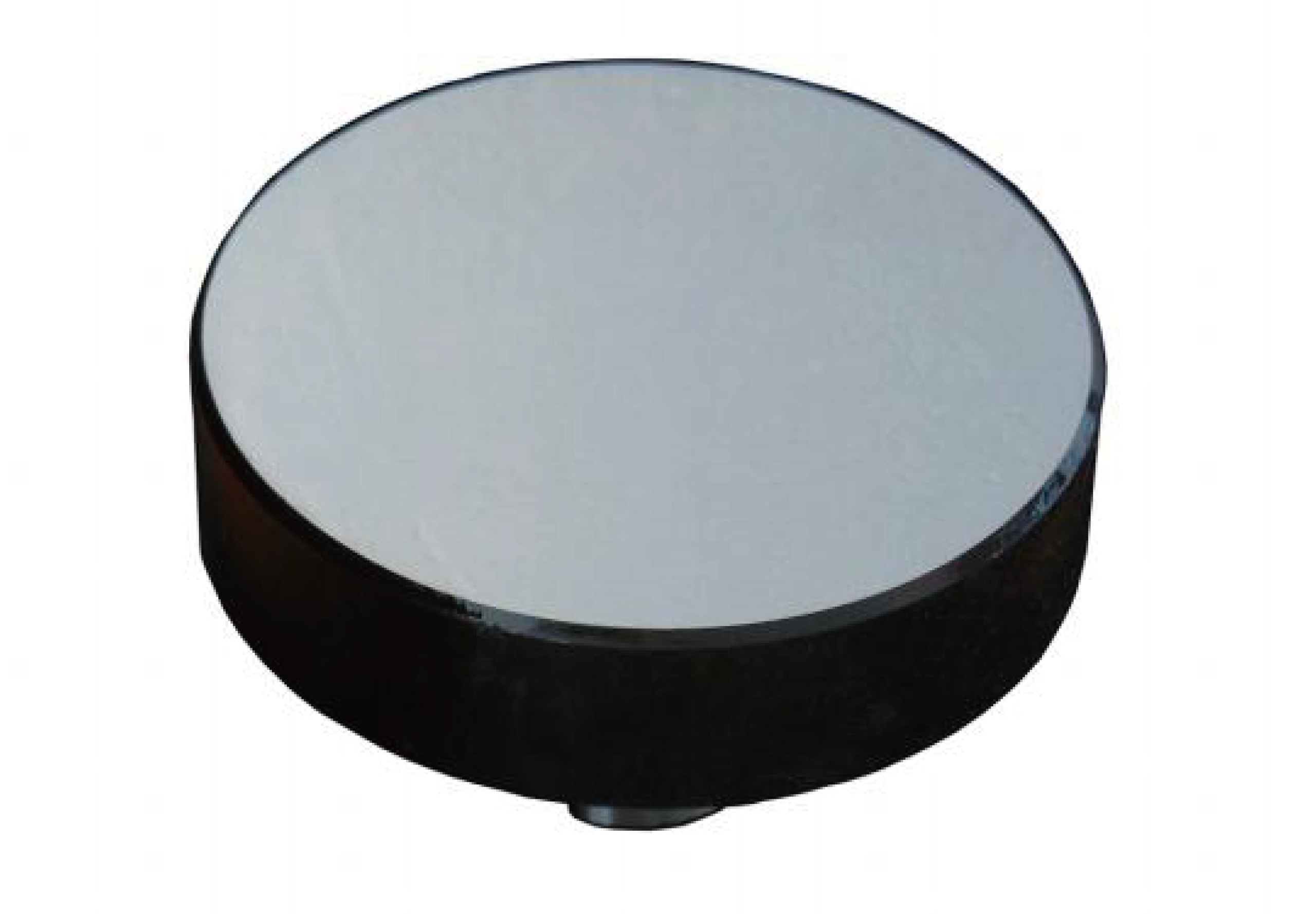

	80mm Brinell Flat Anvil Code: BFA-80 Size: Φ80mm Compatible machine: Brinell Hardness, Low Load Brinell Hardness Tester		Φ200mm Brinell Flat-Anvil Code: BFA-200 Size: 0200mm Compatible machine: Brinell Hardness,Low Load Brinell Hardness Tester
