Технические характеристики

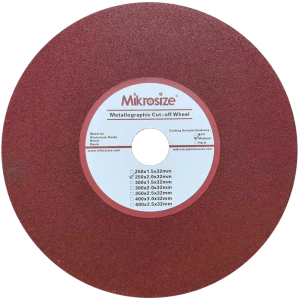

AO60 Cut Off Wheels

Application: For cutting extremely hard ferrous metals(HRC>50), like special ductile cast iron, bearing steel, alloy structural steel, high-speed steel, high vanadium high-speed steel, stainless steel, alloy steel, carbon steel, and high hardness easy sintering workpiece.
Technical specification:
Color: Brownish Red   Hardness: Soft
Consumption speed: Fast
Material: Aluminum Oxide  Bond: Resin
Specification(mm)(Diameter*Thickness*Arbor): 152×0.6×12.7, 200×1.0×32, 230×1.2×32, 250×1.5×32, 250×2.0×32, 300×1.5×32, 300×2.0×32, 350×2.5×32, 400×3.0×32, 450×3.5×32
Package: 10PCS

AO50 Cut Off Wheels

Application: For cutting Medium hard ferrous metals(HRC 38~50), like ductile cast iron, malleable cast iron, high phosphorus cast iron, alloy cast iron, bronze and unhardened steel, etc.
Technical specification:
Color: Brownish Red   Hardness: Medium
Consumption speed: Medium
Material: Aluminum Oxide  Bond: Resin
Specification(mm)(Diameter*Thickness*Arbor): 152×0.6×12.7, 200×1.0×32, 230×1.2×32, 250×1.5×32, 250×2.0×32, 300×1.5×32, 300×2.0×32, 350×2.5×32, 400×3.0×32, 450×3.5×32
Package: 10PCS

AO30 Cut Off Wheels

Application: For cutting soft ferrous metals(HRC<38), like soft metal parts copper, aluminum and alloy.
Technical specification:
Color: Brownish Red   Hardness: Hard
Consumption speed: Slow
Material: Aluminum Oxide  Bond: Resin
Specification(mm)(Diameter*Thickness*Arbor): 152×0.6×12.7, 200×1.0×32, 230×1.2×32, 250×1.5×32, 250×2.0×32, 300×1.5×32, 300×2.0×32, 350×2.5×32, 400×3.0×32, 450×3.5×32
Package: 10PCS

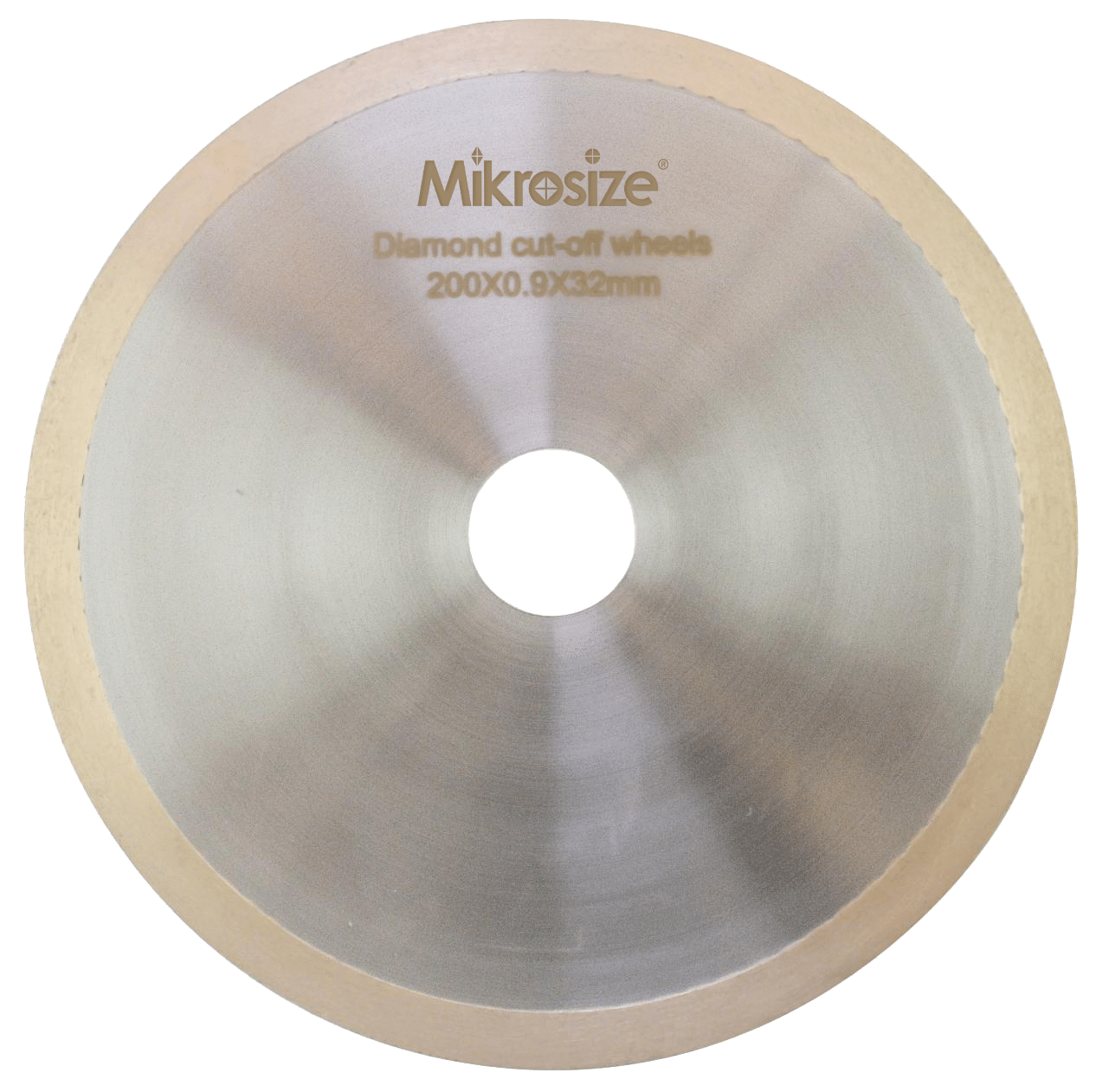

DM Diamond Wafering

Application: For very hard or brittle materials, glass ceramics, stone. This series of cutting precision is relatively high, diamond cutting blades can cut ultra-hard materials such as cemented carbide, ceramics and so on.
Features: The saw blade is made of edge sintering technology, with high accuracy and long blade life.
Technical specification:
Blade Material: Diamond Particle
Bond: Stainless Steel
Specification(mm)(Diameter*Thickness*Arbor): 100×0.3×12.7, 125×0.4×12.7, 150×0.5×12.7, 175×0.7×12.7, 200×0.9×22, 200×0.9×32, 254×0.9×32, 300×1.5×32, 350×2.0×32
Package: 10PCS

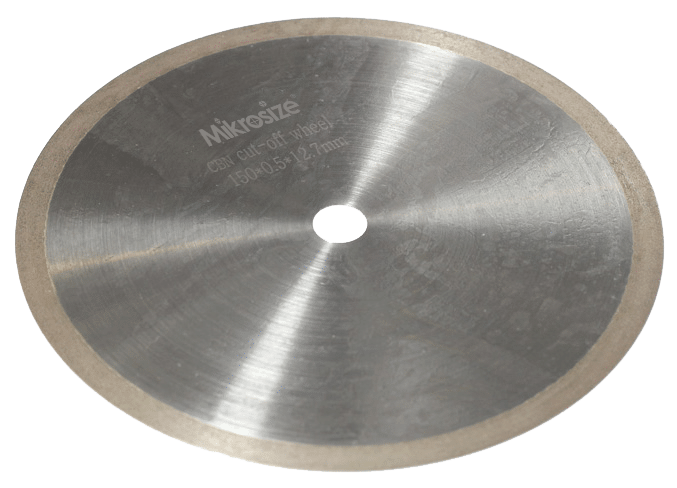

CBN Wafering Blades

Application: Used for cutting samples of extremely hard metals and hard alloys, non-metallic minerals, glass, ceramics, brittle and brittle materials, etc.
Features: The saw blade is made of edge sintering technology, with high accuracy and long blade life.
Technical specification:
Blades Material: CBN
Bond: Stainless Steel
Specification(mm)(Diameter*Thickness*Arbor): 100×0.3×12.7, 125×0.4×12.7, 150×0.5×12.7, 175×0.7×12.7, 200×0.9×22, 200×0.9×32, 254×0.9×32, 300×1.5×32, 350×2.0×32
Package: 10PCS


Recommend of Cut Off Wheels

Choosing the right cut off wheels can ensure the quality of sampling reduce time and cost, find the sample of the Y-axis, and choose the Wheels. When the hardness value is unknown, you can select the cutting blade according to the material description on the left in the table below.

Non-Ferrous Metals                             AO30 Cut Off Wheels
Stainless Steel                             AO50 Cut Off Wheels
Soft Ferrous metals                             AO60 Cut Off Wheels
Ductile Cast Iron                             DM Diamond Wafering
Malleable Cast Iron                             CBN Wafering Blades
Alloy Cast Iron
Bronze
Tungsten Carbide Steels
Hardened steel
Carburised steel
Hard Ferrous metals
High hardness steel
Ceramics
Silicon carbide glass
Brittle materials
Non-metallic Minerals
Sintered materials
    15   25   35   45   55       HRC


Guidelines for Wafering Cutting Various Materials

Most wafer cutting is done at speeds between 50 rpm and 5000 rpm with loads varying from 10-1000 grams.Generally, harder specimens are cut at higher loads and speeds (e.g, ceramics and minerals) and more brittle specimens are cut at lower loads and speeds (e.g, electronic silicon substrates). It is interesting to note that the cutting efficiency for sectioning hard/tough ceramics improves at higher speeds and higher loads.
Item Characteristic Speed (rpm) Load (grams)
Silicon Substrate Soft / Brittle <300 <100
Gallium Arsenide Soft /Brittle <200 <100
Bogon Composites Very Brittle 500 250
Ceramic Fiber Composites Very Brittle 1000 500
Glasses Brittle 1000 500
Minerals Friable / Brittle >1500 >500
Alumina Ceramic Hard / Tough >1500 >500
Zirconia (PSZ) Hard / Tough >1500 >800
Silicon Nitride Hard / Tough >3500 >800
Metal Matrix Composites Hard / Tough >3500 >500
